USED PIRANHA PII-140

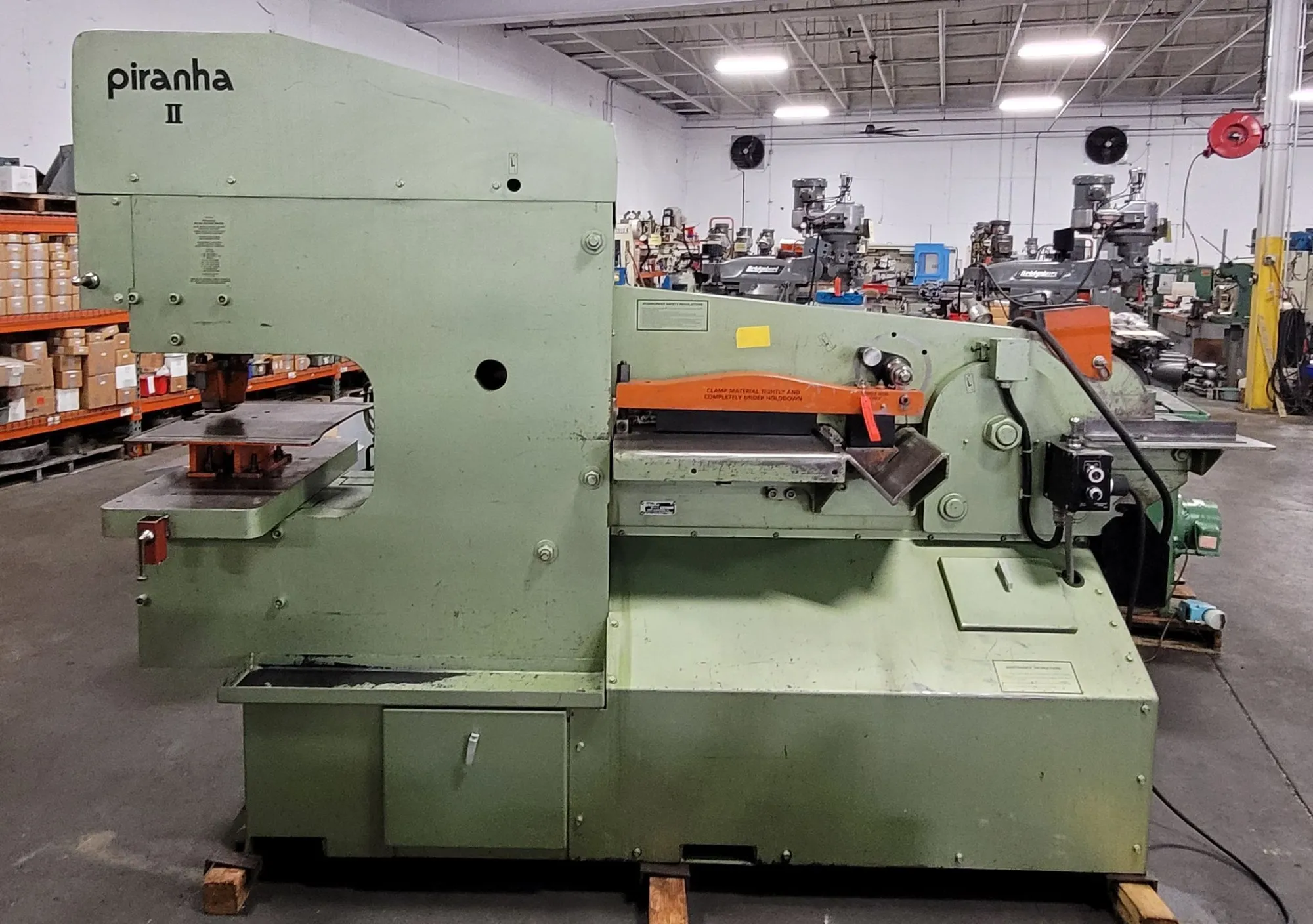

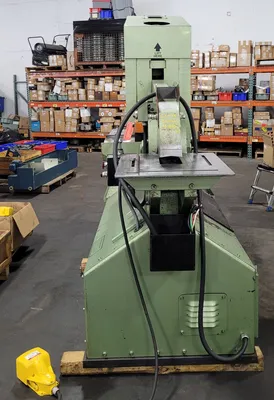

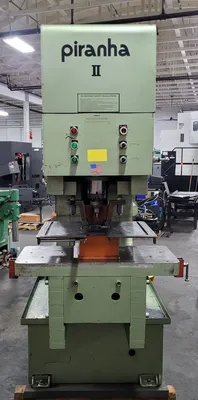

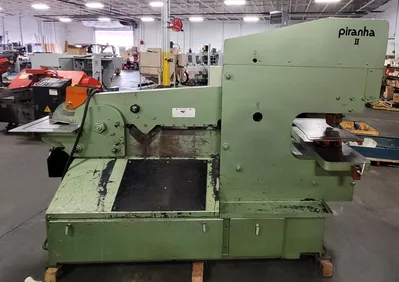

Piranha PII-140 Hydraulic Ironworker

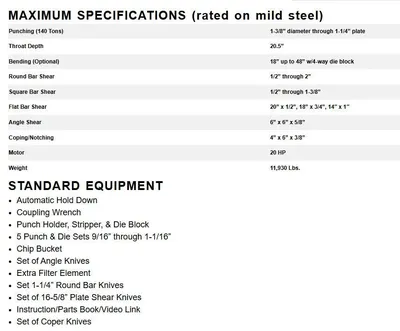

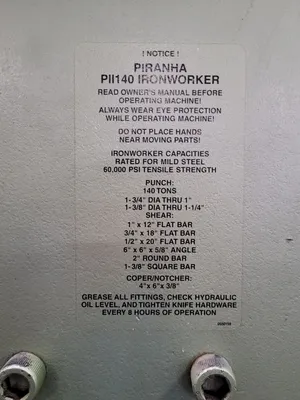

Key Specifications
Punching Capacity: 1-3/8" hole through 1-1/4" plate (or up to 1-3/4" through 1" plate)
Flat Bar Shear: 20” x 1/2”, 18” x 3/4”, or 14” x 1”
Angle Shear: 6” x 6” x 5/8”
Round Bar Shear: 1/2” through 2”
Square Bar Shear: 1/2” through 1-3/8”
Coper-Notcher: 4” x 6” x 3/8”

Punching & Throat Capacities
Punch Tonnage: 140 tons
Max Capacity: 1-3/8” diameter through 1-1/4” plate (or up to 5” through 5/16”)
Throat Depth: 20.5”
Stroke Length / Open Height: 7” stroke length with 14” open height and 7-3/4” closed height
Platen Table Size: 16” front-to-back x 36” right-to-left

Motor & Hydraulics: 20 HP, 220/440V
3-phase motor
Flow Rate: 15 Gallons/Minute
Hydraulic Cap: 40-gallon

Dimensions: 48" x 120" x 90"
Weight: 12,000 lbs.

On the way in.
