USED 2024 MAAC MAAC 117R4DPT
Overview

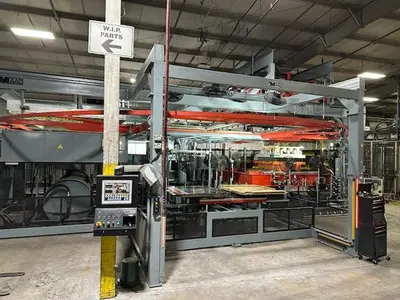

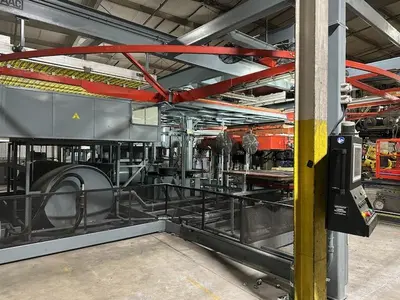

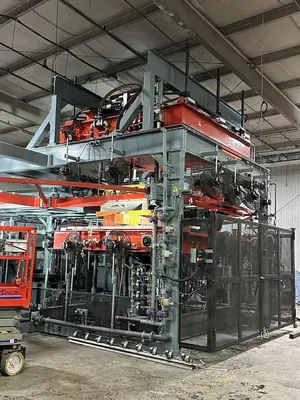

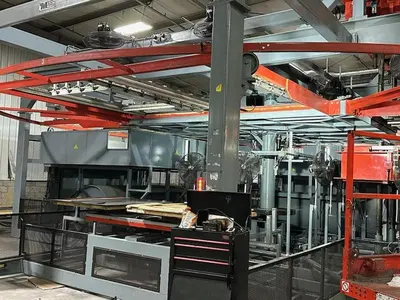

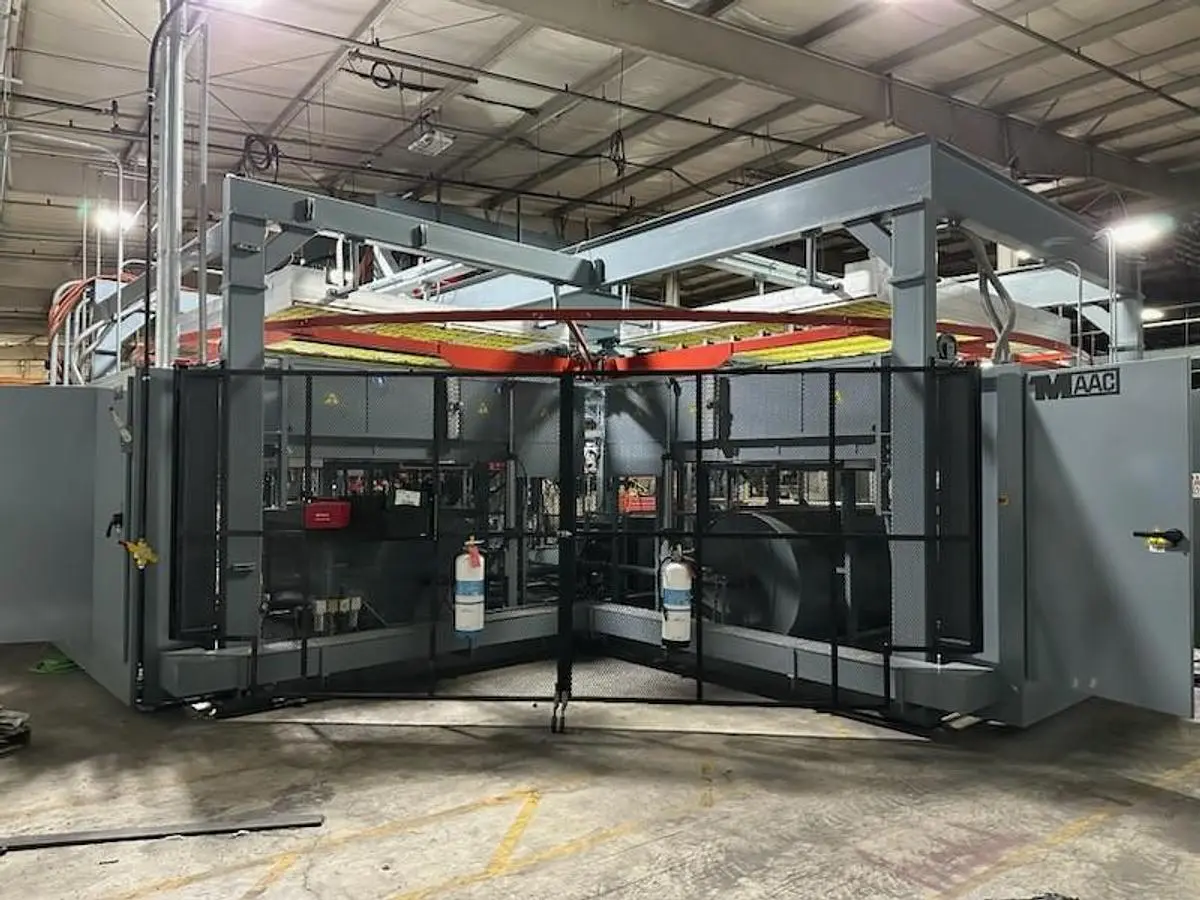

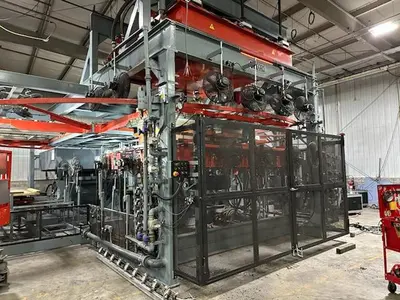

The MAAC 4-Station Double Oven Twin Sheet Pressure Forming Machine, model 117R4DPT, is a reliable used piece of plastic machinery ideal for production environments that require precision and efficiency. It offers a maximum mold size of 132" x 84" and can accommodate a maximum sheet size of 136" x 88". With a robust overall setup, it provides a sheet line of 100" and features both a top and bottom platen stroke of 50". The machine is designed to handle a mold weight of up to 5,000 lbs, with a platen speed of 10-12 inches per second.
The twin oven configuration consists of 104 zones on both top and bottom, allowing for precise temperature control with oven dimensions of 146" x 98". The machine utilizes an Allen Bradley ControlLogix 5580 PLC system with a 15" touch screen for user-friendly operation. The index time between stations is efficient, taking approximately 5-6 seconds.
Additional features include a vacuum system with two 1,000-gallon carbon steel tanks and an air requirement of 80 PSI. The machine runs on 480V/3P/60Hz power, ensuring compatibility with standard industrial electrical systems. Its durable construction and precision engineering make it suitable for advanced manufacturing applications.
Specs
Max Mold Size: 132" x 84"
Max Clamp Frame Opening: 134" x 86"
Max Sheet Size: 136" x 88"
Sheet Line: 100"
Top Platen Stroke: 50"
Top Platen Daylight: 6"
Bottom Platen Stroke: 50"
Bottom Platen Daylight: 10"
Max Platen Speed: 10-12 in/sec
Max Mold Weight: 5,000 lbs
Platen Repeatability: +/- .005"
Top Ceramic Heater Zones: 104
Bottom Ceramic Heater Zones: 104
Index Time: 5-6 seconds station to station

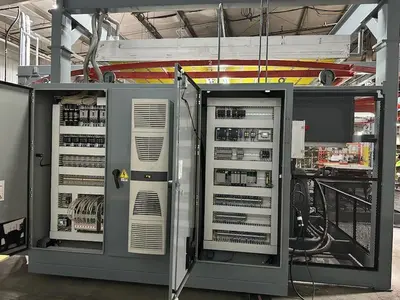

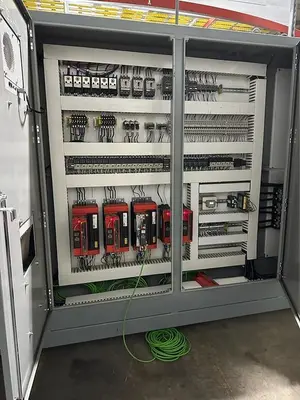

Control: Allen Bradley ControlLogix 5580 PLC, 15" touch screen (Panel View Plus 7)
Air Requirement: 80 PSI
Vacuum System: (2) 1,000-gallon carbon steel vacuum tanks
Clamp Frame Grip Range: 0-0.5" Thickness
Voltage: 480V/3P/60Hz
