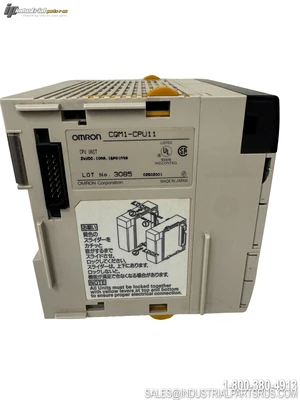

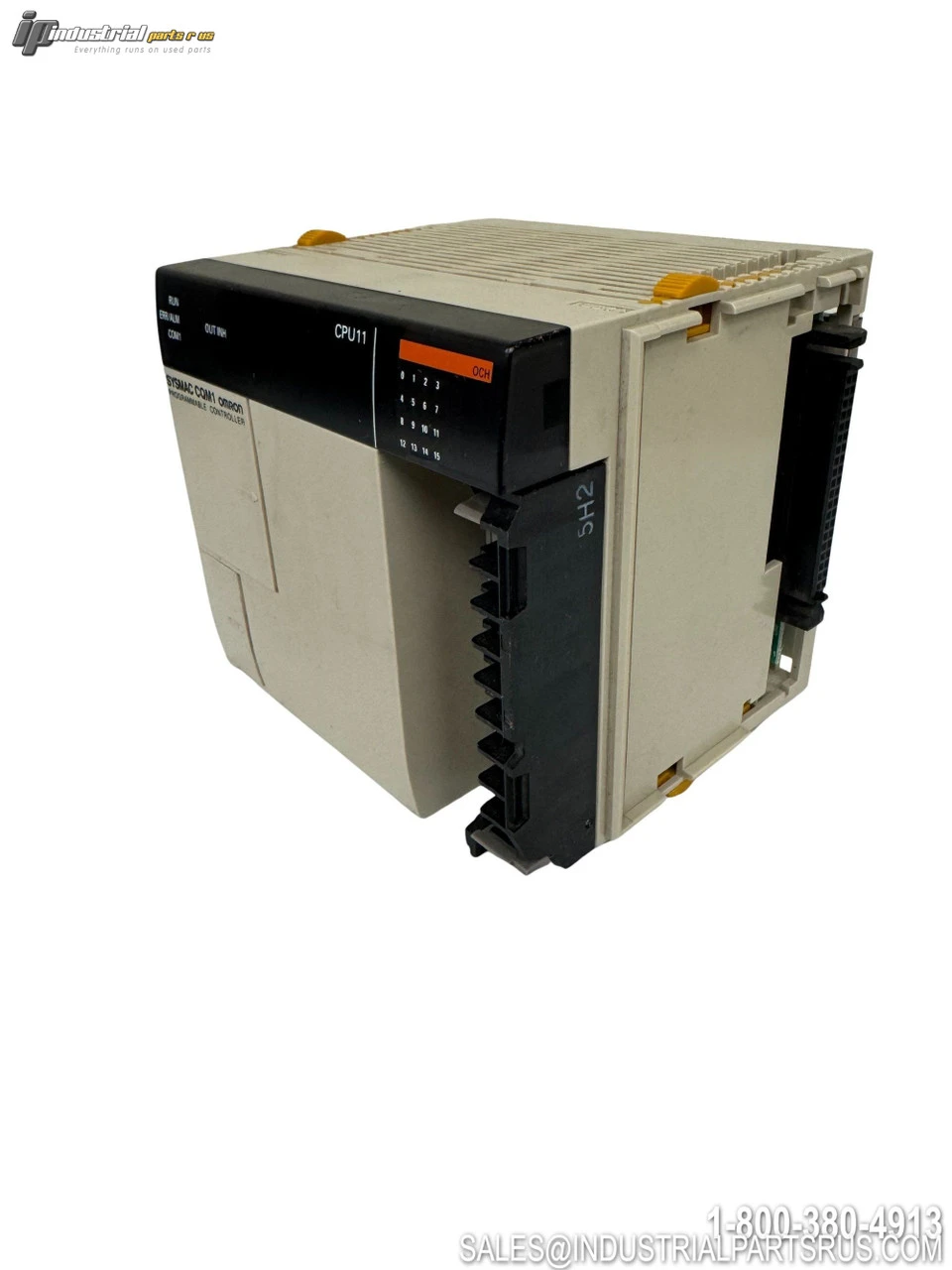

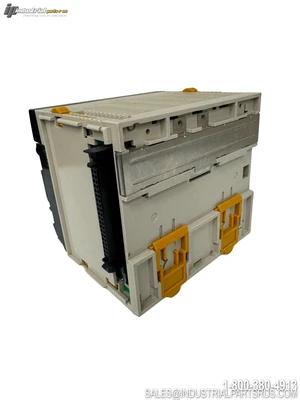

USED OMRON CQM1-CPU11

The Omron CQM1-CPU11 is the entry-level CPU unit in the Sysmac CQM1 series of compact programmable logic controllers, designed for general-purpose industrial automation and machine control. It supports up to 128 I/O points, provides 16 built-in 24 VDC input terminals, and executes basic instructions at 1.4 microseconds per instruction. Unlike other CQM1 CPU variants, the CPU11 does not include a built-in RS-232C port, communicating instead via the peripheral port for programming and Host Link connectivity.
Specification
Value
Brand
Omron
Model / Part Number
CQM1-CPU11
Product Type
PLC CPU Unit
Series / Platform
Sysmac CQM1
I/O Capacity (Max)
128 Points
Built-In Input Points
16 Points
Input Voltage
24 VDC
Input Current
10 mA (CPU supply); 6 mA per input point
Program Capacity
3.2K Words
Data Memory (DM) Capacity
1K Words (1,024 Words)
Instruction Execution Speed
1.4 µs per basic instruction
Timers / Counters
256 Timers / 256 Counters
RS-232C Port
None (No built-in RS-232C)
Communication Port
Peripheral Port (Programming Console / Host Link)
Communication Protocols
Host Link, Peripheral Bus
Mounting Type
DIN Rail / Side-locking module
Dimensions (W × H × D)
72 mm × 100 mm × 90 mm
Terminal Type
Screw Terminals
Visual Indicators
LED Indicators
Compatible Power Supply
CQM1-PA203 / CQM1-PA206 (sold separately)
Programming Software
CX-Programmer (Omron)
Controller Platform
Sysmac CQM1
We warranty all items for 30 days from date of purchase.
