USED LYNDEX 05005-0875

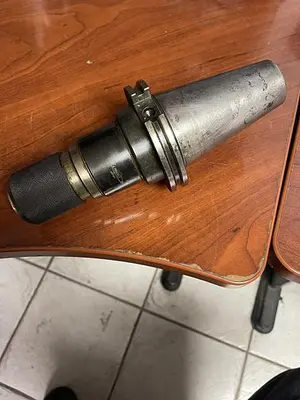

THE LYNDEX 05005-0875 IS A CAT 50 TENSION AND COMPRESSION TAPPING HEAD DESIGNED FOR USE WITH MACHINING CENTERS. THIS TOOL HOLDER FEATURES A CAT50 TAPER SIZE AND IS COMPATIBLE WITH BILZ #2 STANDARD STYLE TAP COLLETS, FACILITATING QUICK AND EASY INTERCHANGEABILITY. IT IS ENGINEERED WITH A MODULAR CONNECTION AND UTILIZES RETENTION BALLS AND DRIVE KEYS TO PROVIDE HIGH POSITIONING ACCURACY AND A STRONG GRIPPING FORCE, WHICH REDUCES THE POSSIBILITY OF TAP SLIPPAGE. THE UNIT IS CONSTRUCTED FROM STEEL AND INCLUDES A SEALED INTERNAL MECHANISM THAT ALLOWS HIGH-PRESSURE CENTER-THROUGH COOLANT TO FLOW UP TO A MAXIMUM PRESSURE OF 750 PSI WITHOUT CONTAMINATING INTERNAL COMPONENTS. THE CHAMBERED DESIGN IS SPECIFICALLY INTENDED TO PREVENT THE BACKFLOW OF COOLANT INTO THE SPINDLE. KEY SPECIFICATIONS INCLUDE A #2 ADAPTER SIZE, A MINIMUM TAP CAPACITY OF 5/16 INCH, A MAXIMUM TAP CAPACITY OF 7/8 INCH, AND A MAXIMUM PIPE TAP CAPACITY OF 1/2 INCH. DEPENDING ON THE SPECIFIC VARIANT WITHIN THE SERIES, PROJECTION LENGTHS TYPICALLY RANGE FROM 3.86 INCHES TO 5.40 INCHES, WITH A SLEEVE DIAMETER OF APPROXIMATELY 2.09 INCHES. THIS TAPPING HEAD IS SUITABLE FOR FAST TAPPING ON SYNCHRONOUS CYCLES IN VARIOUS METALWORKING APPLICATIONS.
