NEW FANUC A06B-6117-H103

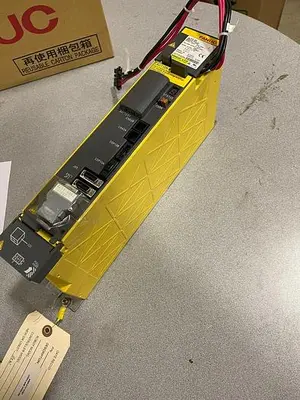

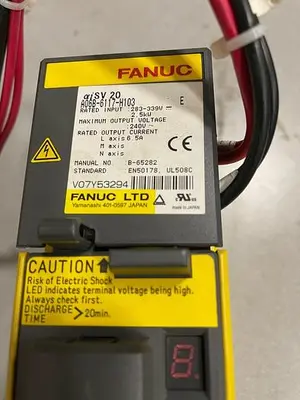

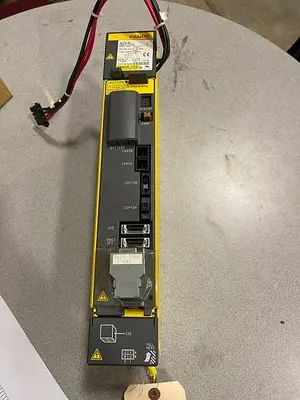

The FANUC A06B-6117-H103 is a single-axis servo amplifier module from the Alpha i series, specifically model AISV-20. Designed for integration with FANUC CNC controls such as the 0i-MD, 30i-B, 31i-B, and 32i-B, this module provides precise motion control for Alpha i series servo motors. It operates with an input voltage of 200-230 VAC at 50/60 Hz and features a rated output current of 6.5 Arms with a nominal current limit of 20 Apeak. The unit supports High Response Vector (HRV2 and HRV3) control types for enhanced machining accuracy. Internal hardware components include an A16B-2203-0691 base board, an A20B-2101-0040 CPU side board, and an A50L-0001-0374 IGBT power module. Cooling is managed via an A90L-0001-0510 internal fan system. The module weighs approximately 2.2 kg to 3.5 kg and is designed for cabinet mounting using screw terminals or DIN rail points. Safety and protection features include monitoring for overcurrent, overvoltage, undervoltage, regeneration overload, motor overload, and overheating. It is rated for operation in temperatures ranging from 0 to 45 degrees Celsius. Year of manufacture is not available.
