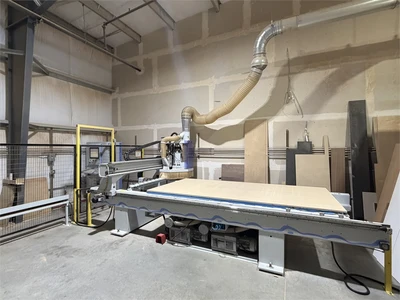

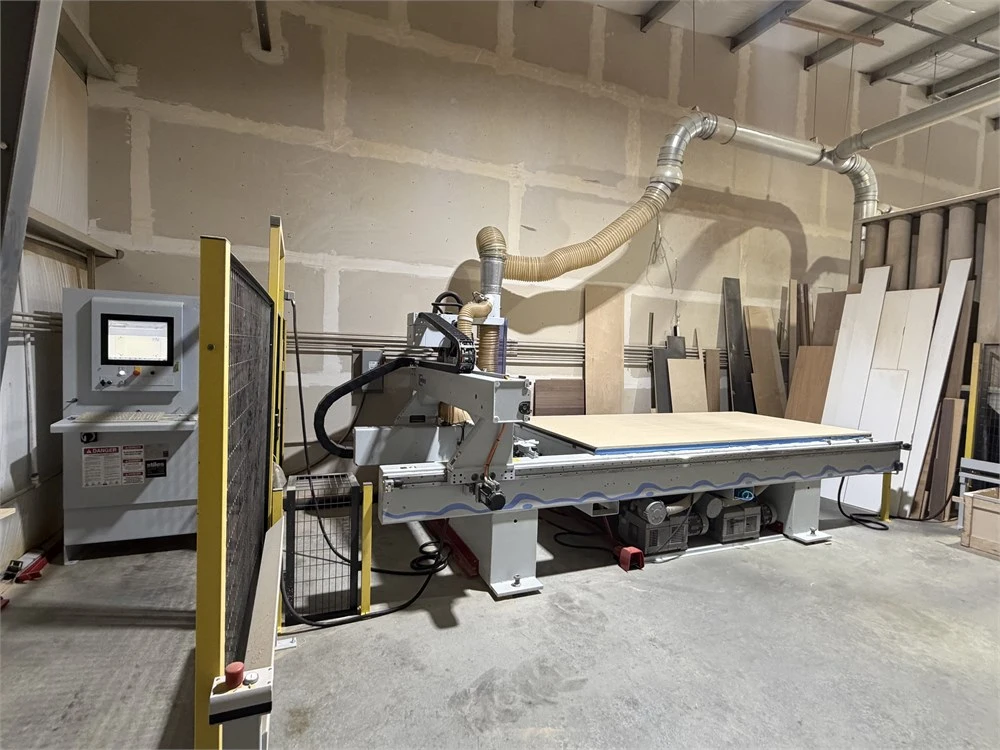

USED 2013 WEEKE OPTIMAT BHP008/VANTECH 510

Lot Closes:: 8/19/2026 11:00:00 AM PT
Made in USA
See video of machine in operation
"X" Axis 122" (3,100 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

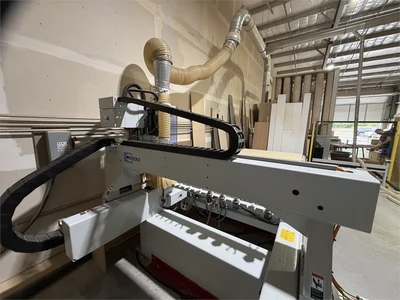

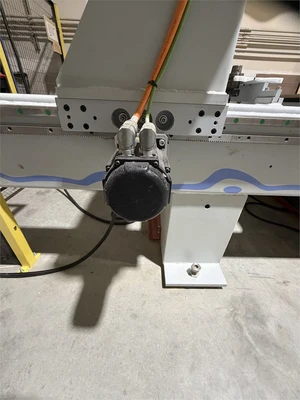

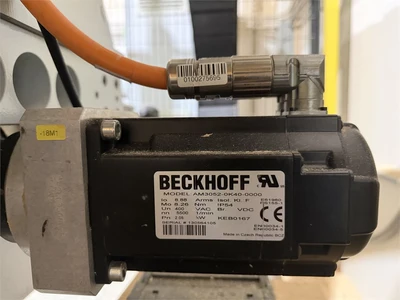

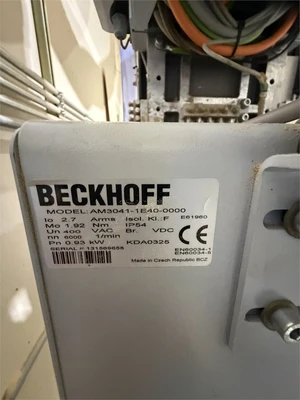

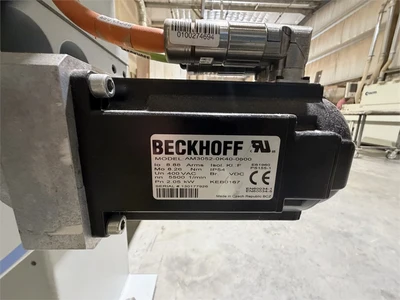

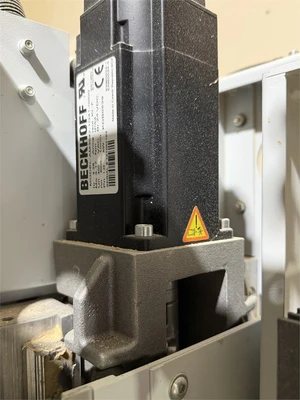

The head travels via AC brushless drives & THK linear motion guides on all axes.

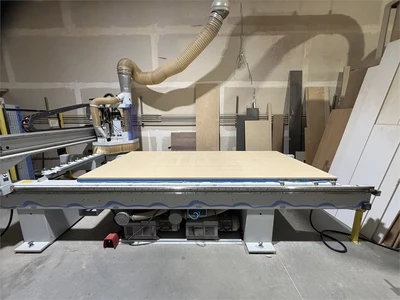

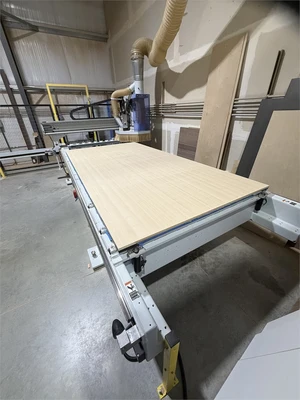

S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.
Foot pedal operation

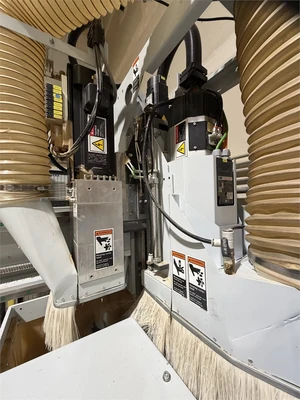

Boring unit with 3.6 HP motor, (7) vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

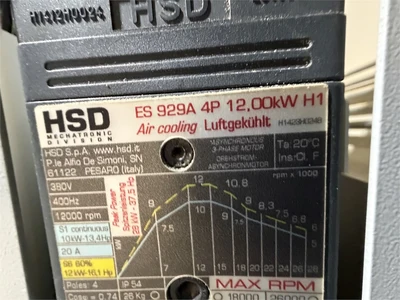

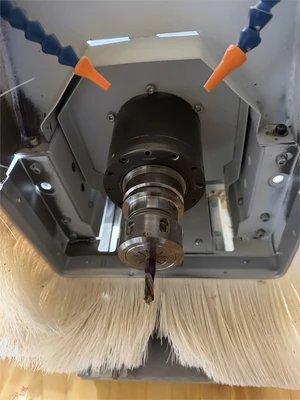

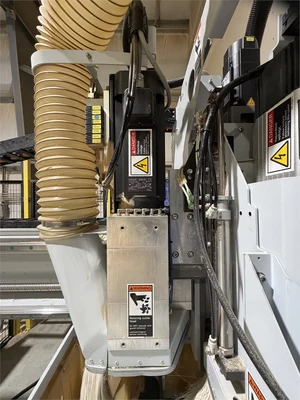

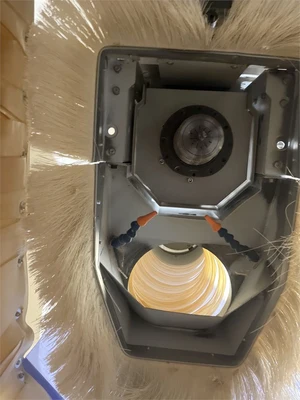

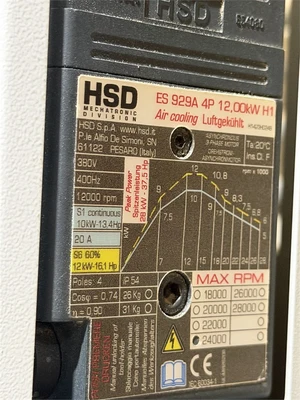

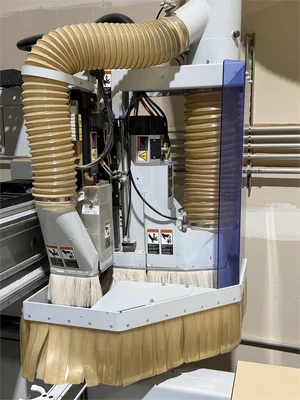

16 HP router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM; RH or LH rotation;  air nozzles

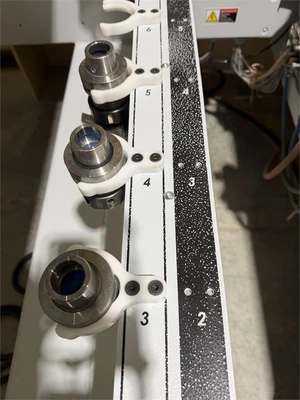

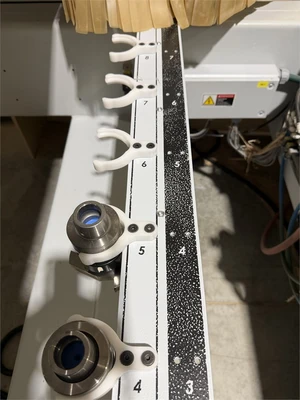

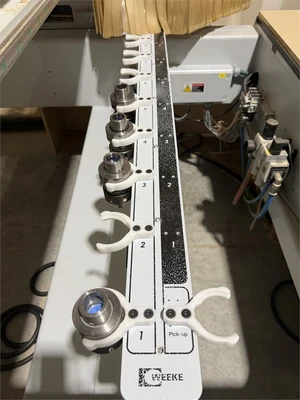

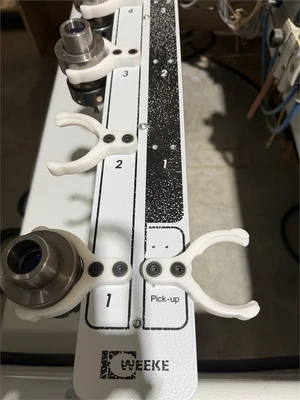

8-position lateral tool changer located at the end of machine
1 additional tool changer position for large diameter tools and aggregates

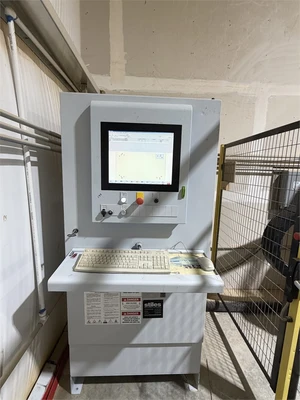

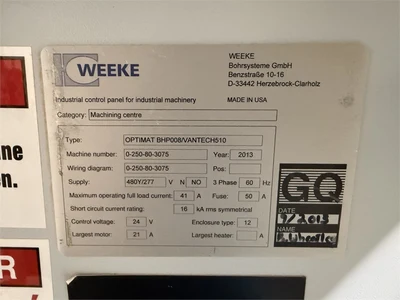

Control cabinet
PC Front-End with WEEKE "PC 85T" + Windows "XP" + WoodWOP 5.0 operating system.

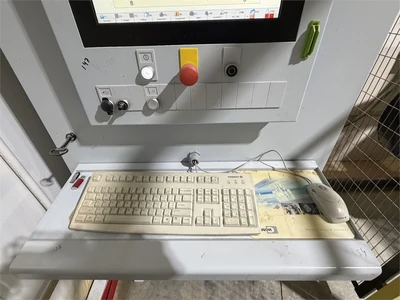

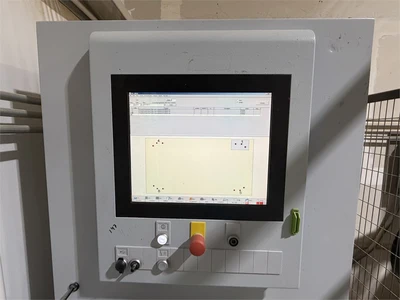

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.
"BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine.

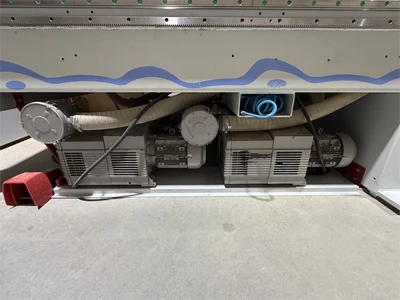

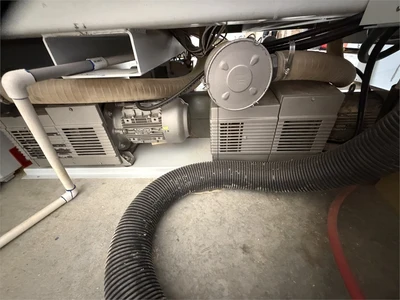

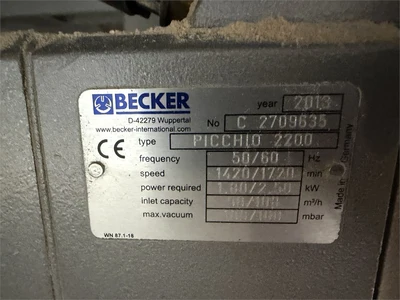

(2) Becker "Picchio 2200" Vacuum Pumps
108 m/hr. capacity (each)
3.5 HP motor (each)

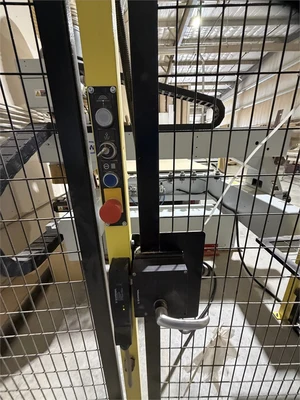

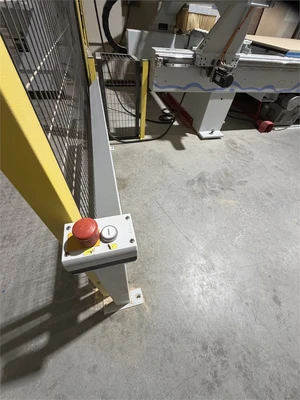

Photo safety barrier, safety fencing with interlocked door

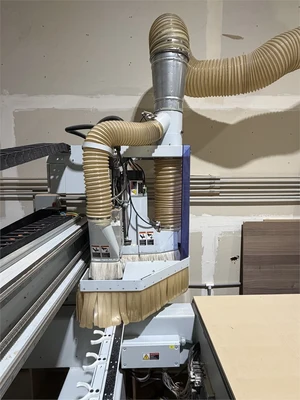

Dust pipe and flex hose NOT included
CNC has intermittent error code "no tool in spindle, but the tool is actually there"
