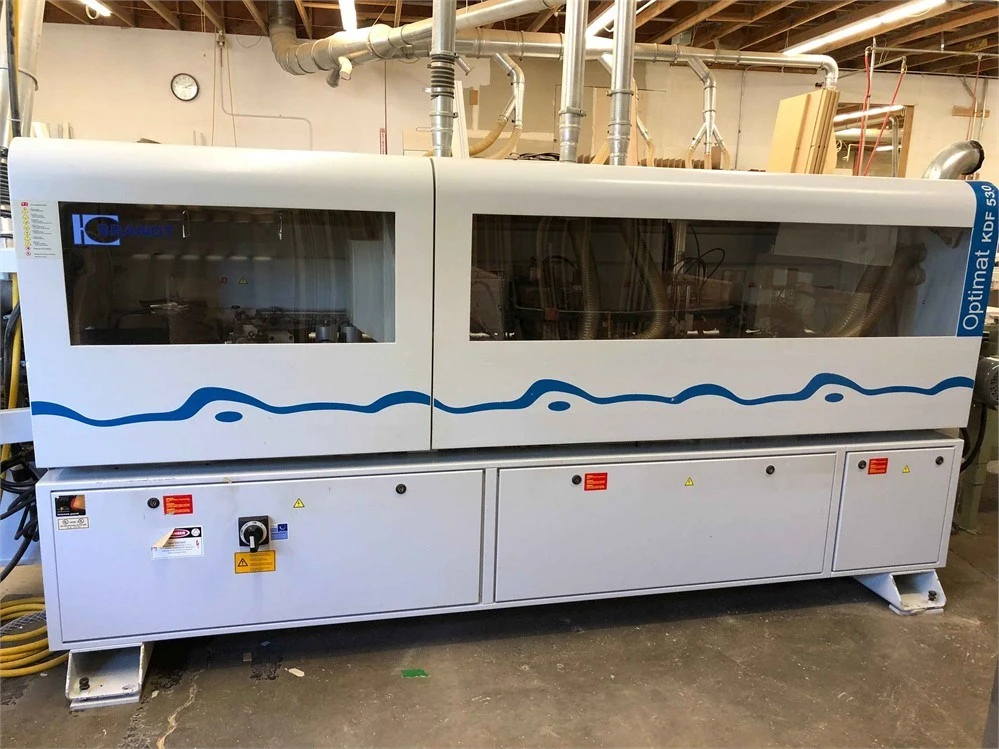

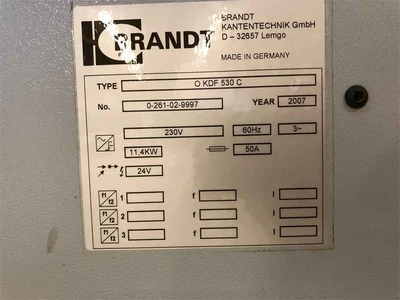

USED 2007 BRANDT KDF-530-C

Lot Closes:: 8/19/2026 11:05:00 AM PT
Panel thickness, 12 mm/0.5" - 55 mm/2.1875"
Minimum panel length, 160 mm/6.375"
Minimum panel width, 65 mm/2.5"
Capable of coiled banding up to 3 mm and solid wood up to 8 mm
PC control

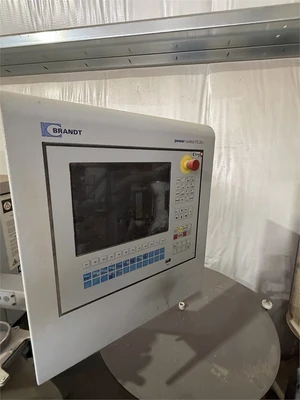

     Power Control PC 20+
Two (2) speed track, 36 FPM when corner rounding and 46 FPM for other applications
     2.5 HP feed drive

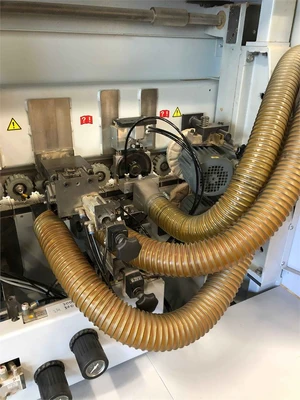

Premilling unit
     Two (2) motors, 3 HP each operating at 12,000 RPM
     One motor is CW rotation and one is CCW rotation
Coil table, 32" diameter
Hot melt glue pot
Guillotine
Pressure section with one (1) driven and two (2) idle rollers
End trim unit
     Two (2) motors, 0.25 HP each operating at 12,000 RPM
     0/15 degree tilt
Fine trim unit
     Two (2) motors, 0.75 HP each operating at 11,000 RPM
Corner round unit (NOT WORKING)
     One (1) motor, 0.5 HP operating at 12,000 RPM
Radius scraping unit
Flat scraping unit
External collection box for scraping unit

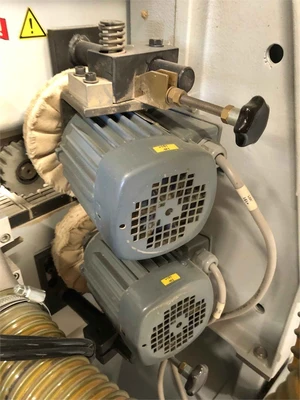

Buffing unit
     Two (2) motors operating at 2,800 RPM
Adjustable outboard roller support
Sound enclosure

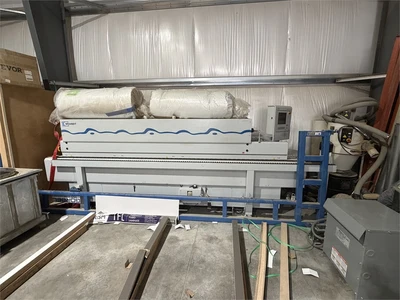

Machine has been disconnected and stored. Current state is last two photos.
