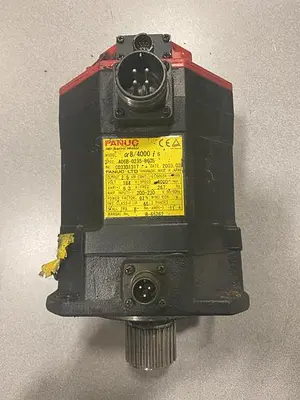

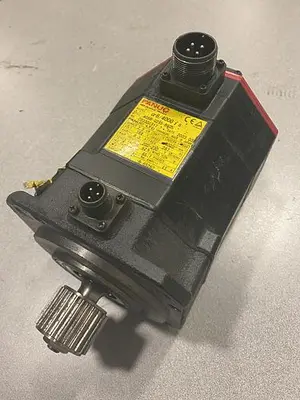

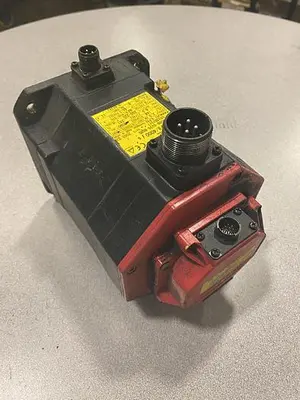

USED FANUC A06B-0235-B605

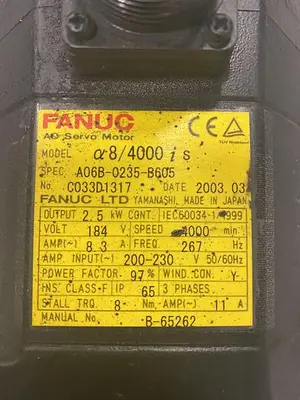

THE FANUC A06B-0235-B605 IS A HIGH-PERFORMANCE AC SERVO MOTOR FROM THE ALPHA I SERIES, SPECIFICALLY THE AIS 8/4000 MODEL, DESIGNED FOR PRECISION MOTION CONTROL IN CNC AND INDUSTRIAL AUTOMATION SYSTEMS. THIS THREE-PHASE MOTOR DELIVERS A POWER OUTPUT OF 2.5 KW AND A RATED TORQUE OF 8 NM, OPERATING AT SPEEDS UP TO 4000 RPM. IT IS ENGINEERED WITH A VOLTAGE RATING OF 184V TO 230V AT FREQUENCIES RANGING FROM 200 HZ TO 267 HZ, WITH AN AMPAGE RATING OF APPROXIMATELY 7A TO 11A DEPENDING ON THE APPLICATION. TECHNICAL FEATURES INCLUDE A TAPERED SHAFT FOR SECURE MECHANICAL COUPLING AND AN INTEGRATED 90V DC BRAKE FOR CONTROLLED STOPPING AND LOAD HOLDING. FOR ACCURATE FEEDBACK, THE MOTOR IS EQUIPPED WITH AN ALPHA I SERIES INCREMENTAL ENCODER, SUCH AS THE AI1000I OR A64IA MODELS. THE UNIT IS BUILT TO IP65 STANDARD SEALS FOR PROTECTION AGAINST DUST AND LIQUID INGRESS, ENSURING RELIABILITY IN HARSH INDUSTRIAL ENVIRONMENTS. ITS COMPACT, INDUSTRIAL-DUTY DESIGN SUPPORTS MULTIPLE MOUNTING CONFIGURATIONS AND IS COMPATIBLE WITH FANUC R-30IB PLUS AND SIMILAR SERVO DRIVE SYSTEMS. THE TYPICAL WEIGHT OF THE UNIT IS APPROXIMATELY 15 KG (33 LBS). NO SPECIFIC YEAR OF MANUFACTURE IS PROVIDED IN THE SOURCE TEXT FOR THIS UNIT.
