USED VAHLE BLK200-2/25-2-01-UL-S

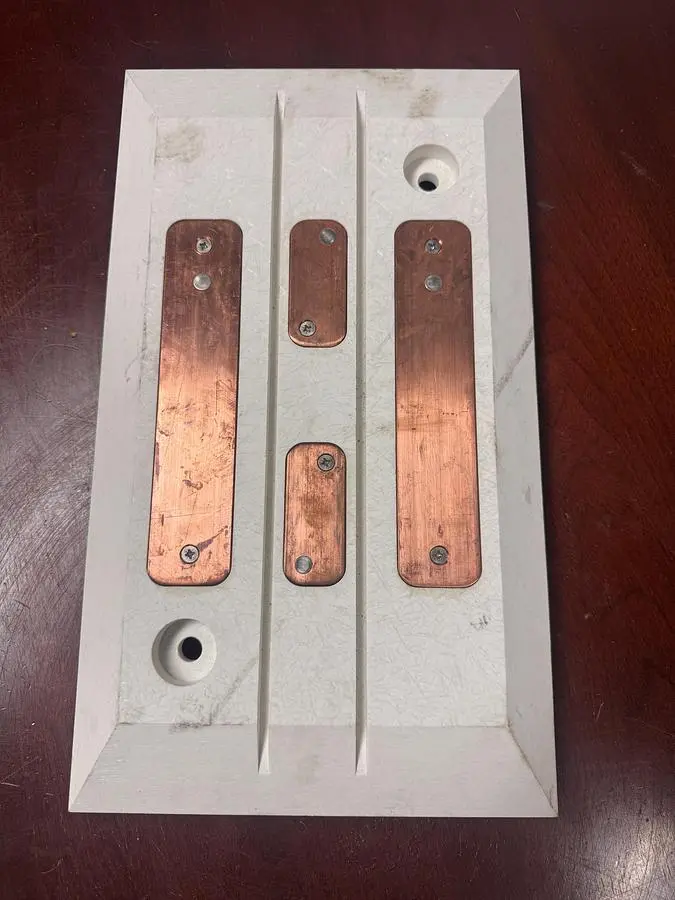

The Vahle BLK200-2/25-2-01-UL-S is a 2-pole charging contact base plate designed for high-cycle battery charging in automated guided vehicles (AGVs), intralogistics systems, and theme park rides. This 200 A version features a modular, stationary mounted base plate with two copper contact plates for charging and two additional pilot copper contact plates for the transmission of control signals and data communications. It has a footprint dimension of 400 x 230 mm and a weight of approximately 2.718 kg. The unit is designed to support standard transmission voltages up to 60 VDC or 25 VAC and is approved as a recognized component according to UL 583 for battery-powered industrial truck accessories and UL 3100 for automated mobile platforms. The system utilizes large tolerances via linear guidance elements and can be configured for drive-on, drive-over, or pressure contact designs. The base plate is constructed from highly wear-resistant plastic, ensuring a long service life in demanding environments. Year of manufacture is not available.
