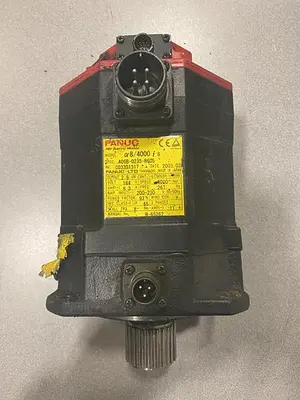

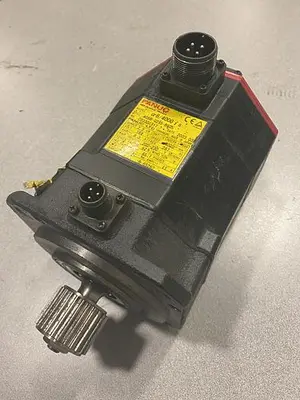

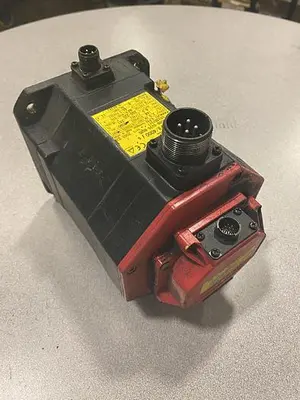

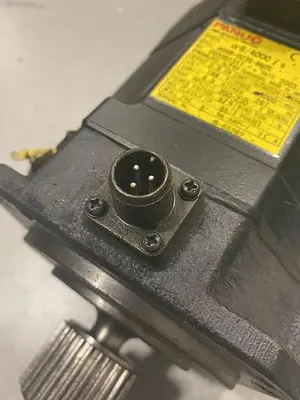

USED FANUC A06B-0235-B605

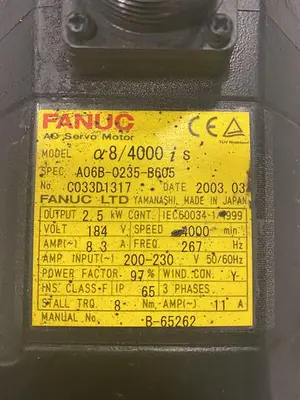

The FANUC A06B-0235-B605 is a high-performance AC servo motor from the Alpha iS series, specifically model AiS 8/4000. This three-phase motor is designed for 200-240 VAC operation and features a power output of 2.5 kW. It delivers a stall torque of 8 Nm and has a rated speed of 4000 RPM. Electrical specifications include a rated current of 7 to 8.3 amps and a frequency range of 200 Hz to 267 Hz depending on the voltage input (typically 167V to 184V). The motor is equipped with a tapered shaft (TPR) and a 90 VDC brake system for precise motion control and safety. For feedback, it utilizes an Alpha i series incremental encoder, such as the AI1000i or A64IA. The unit is built with an IP65 standard seal rating and Class F insulation, allowing it to withstand harsh industrial environments. Its physical configuration typically includes a flange mount, and the motor weighs approximately 23 to 28 lbs with dimensions of 19 x 13 x 13 inches. This series utilizes an improved drive train and rigid structure to provide high axis speeds and a generous working envelope for applications in robotics and CNC machining. Year of manufacture is not available.
