USED FANUC A06B-0235-B605

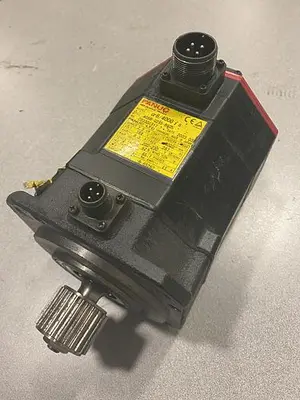

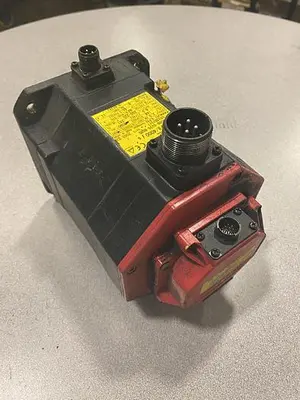

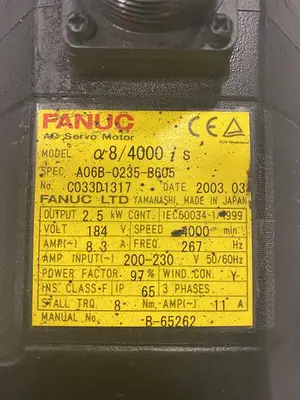

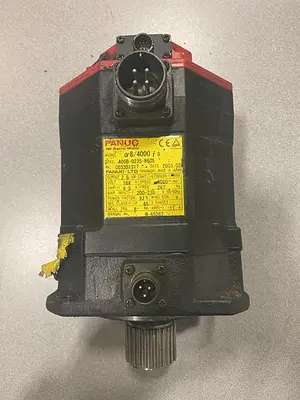

The FANUC A06B-0235-B605 is an AC servo motor from the Alpha i series, specifically the Alpha iS 8/4000 model. This high-performance motor is designed for precise motion control in industrial automation and CNC systems. It features a three-phase winding and is rated for a power output of 2.5 kW. The motor operates at a maximum speed of 4000 RPM with a rated torque of 8 Nm. Electrical specifications include a voltage of 184V to 230V, a current of 7A to 11A, and a frequency of 200Hz to 267Hz. This model is equipped with a tapered shaft (TPR) for secure mechanical coupling and an integrated 90VDC brake (BRK) for controlled stopping and holding functions. For feedback and positioning accuracy, it includes a standard incremental encoder (A64IA). The motor utilizes a compact, industrial-duty design with permanent magnets and an 8-pole configuration to deliver high axis speeds and stable torque. It is compatible with FANUC R-30iB Plus Mate controllers and various GE FANUC servo drive systems. The unit has a mass of approximately 21.64 lbs to 28 lbs and is suitable for flange mounting in various mechanical setups. No year of manufacture was specified in the provided text.
