USED FANUC A06B-0235-B605

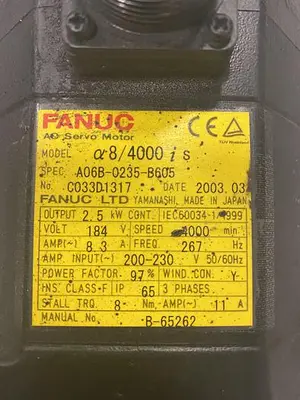

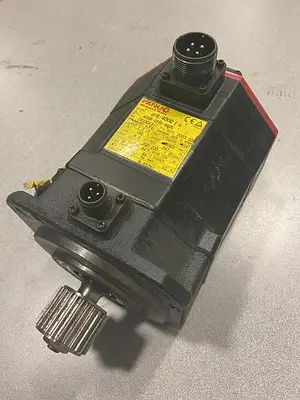

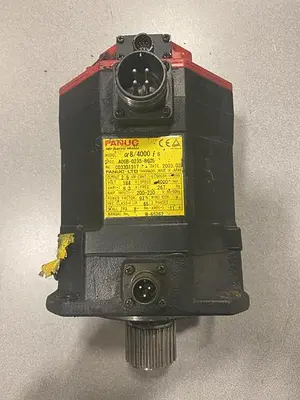

The FANUC A06B-0235-B605 is an Alpha i series AC servo motor, specifically model Alpha iS 8/4000 or A8/4000iS. Designed for precision industrial applications like CNC machinery and robotics, this motor delivers a rated output of 2.5 kW and a torque of 8 Nm. It operates at a maximum speed of 4000 RPM with a 7 amp current rating and 3-phase power supply (typically 200-240V). The technical configuration features a tapered shaft (TPR) and is equipped with a 90V DC brake (BRK) for secure stopping and hold control. For feedback and positioning, it utilizes an Alpha i incremental encoder, often the AI1000i or A64IA (A860-2014-T301) pulsecoder. The motor is built to IP65 standard seals for protection against dust and water jets. Physical specifications include a weight of approximately 10.4 kg to 15 kg depending on the specific sub-model configuration. It features a permanent magnet 8-pole rotor design and is compatible with FANUC R-30iB Plus or RJ series controllers and matching amplifier modules. The insulation class is rated at F. Year of manufacture is not specified in the provided data.
