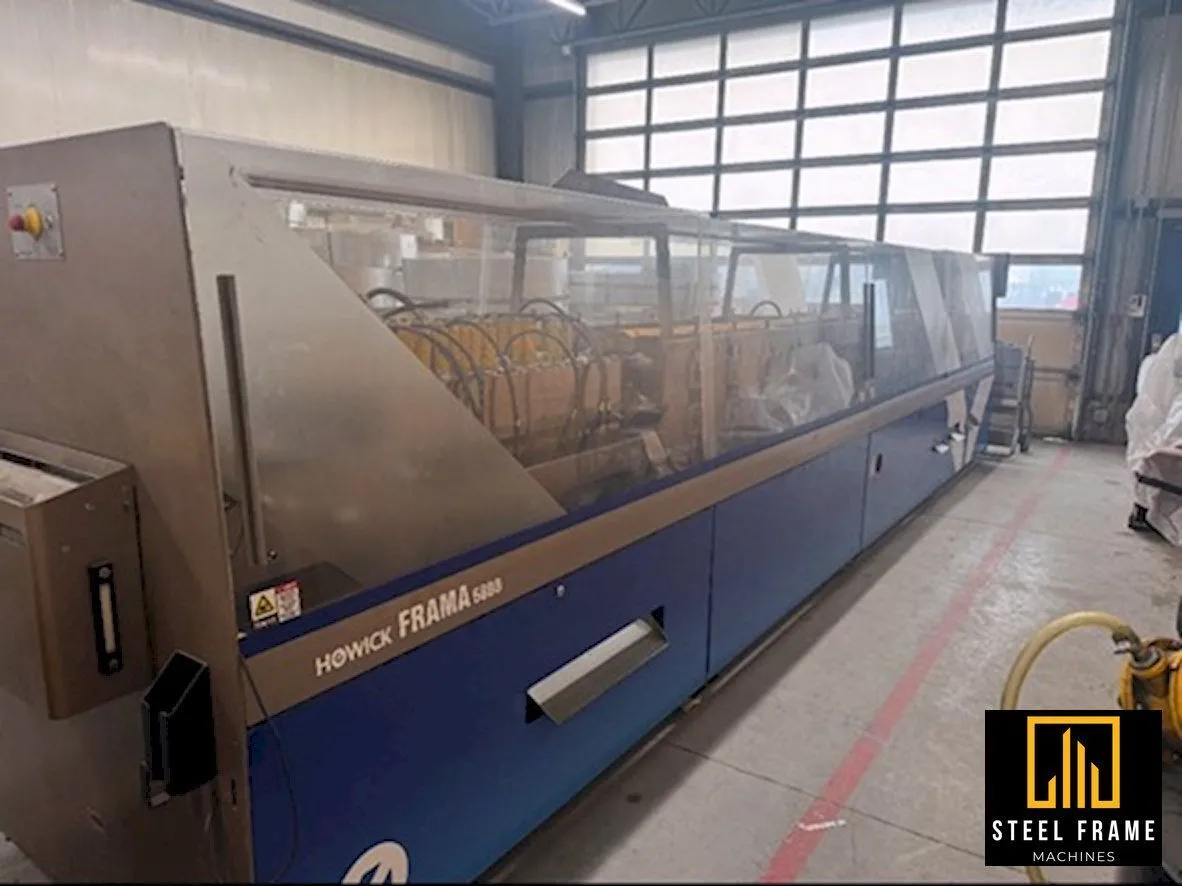

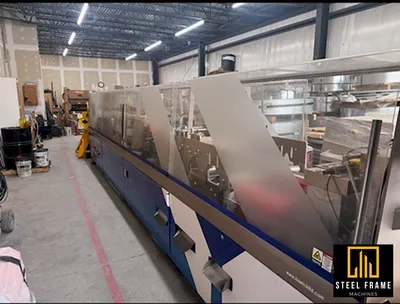

USED 2022 Howick FRAMA 6800
Overview
2022 Howick FRAMA 6800 dedicated floor joist cassette production machine for sale. 10 forming stages, unique swaged service hole design, handles 14–13 gauge material.
Specs
Drive Motor Power: 15 hp (11 kW)
Hydraulic Power: 7.5 hp (5.5 kW)
Hydraulic Tank: 15.8 gal (60 L)
Hydraulic Cooler: Optional
Forming Stages: 10
Line Speed: 65 ft/min (20 m/min)
Production Speed*: 984–1,950 ft/hr (300–600 m/hr)
Material Thickness Range: 14–13 ga (2.0–2.5mm)
Touch Screen: Panel PC (Windows 10)
Machine Control: FRAMA Machine Control
Input Files: CSV

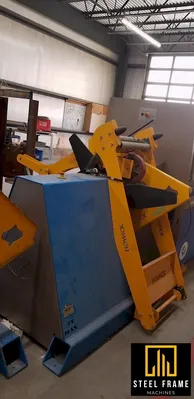

Decoiler Capacity: 6,600 lb (3.0T)
Decoiler Drive Motor: 5.4 hp (4.0 kW)
Decoiler Jaws: 3-Jaw Self Centring, Hydraulic Expansion
Decoiler Jaw Expansion Range: 1'7"–1'8½" (480–520mm)
Decoiler Speed Control: Dancer Arm with Inclinometer, Auto-pause at coil end
Decoiler Max Coil Weight: 6,600 lb (3,000 kg)
Decoiler Max Coil Width: 1'3¾" (400mm)
Decoiler Max Coil OD: 4'11" (1,500mm)
Decoiler Nominal Bore: 1'8" (508mm)
