USED 2022 Howick FRAMA 5600
Overview

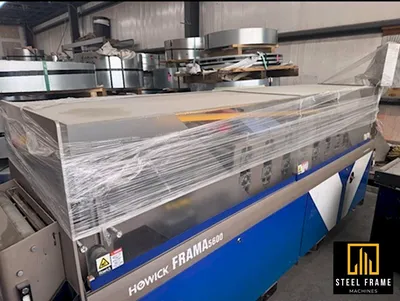

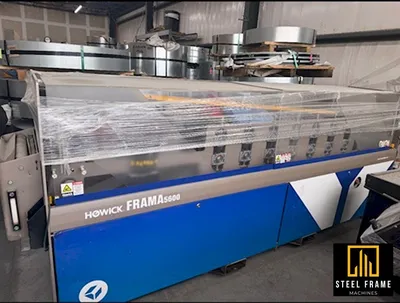

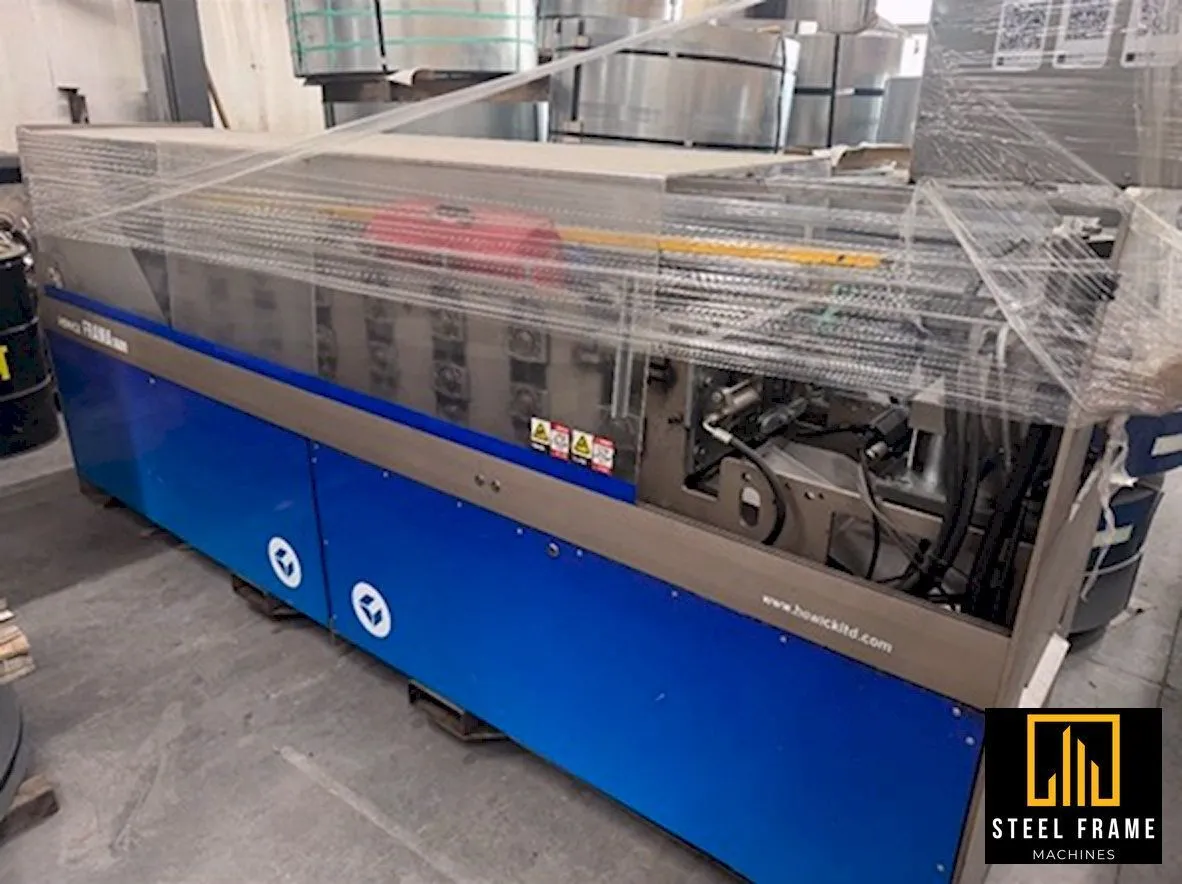

2022 Howick FRAMA 5600 cold-formed steel framing machine for sale. Dedicated frame & truss production, 9 forming stages, end-bearing stud detail, handles 20–16 gauge coil up to 1.6mm
Specs
Drive Motor Power: 10 hp (7.5 kW)
Hydraulic Power: 7.5 hp (5.5 kW)
Hydraulic Tank: 15.8 gal (60 L)
Forming Stages: 9
Line Speed: 98 ft/min (30 m/min)
Production Speed*: 1,312–2,620 ft/hr (400–800 m/hr)
Material Thickness Range: 20–16 ga (0.95–1.55mm)
Max Coil Thickness: 16 ga (1.6mm)
Touch Screen: Panel PC (Windows 10)
Machine Control: FRAMA Machine Control
Dimensions (L x W x H): 11.2' x 2.5' x 4.6' (3.4m x 0.75m x 1.4m)
Weight: 5,300 lb (2,400 kg)

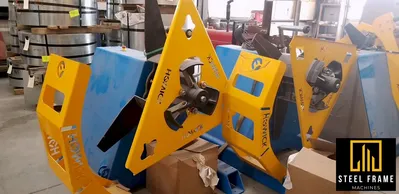

Decoiler Capacity: 6,600 lb (3.0T)
Decoiler Drive Motor: 5.4 hp (4.0 kW)
Decoiler Jaws: 3-Jaw Self Centring, Hydraulic Expansion
Decoiler Jaw Expansion Range: 1'7"–1'8½" (480–520mm)
Decoiler Max Coil Weight: 6,600 lb (3,000 kg)
Decoiler Max Coil Width: 1'3¾" (400mm)
Decoiler Max Coil OD: 4'11" (1,500mm)
Decoiler Nominal Bore: 1'8" (508mm)
