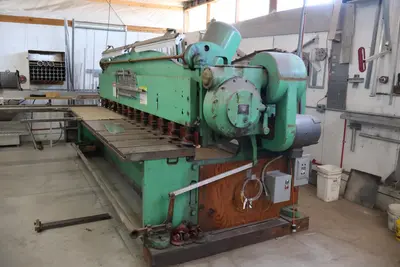

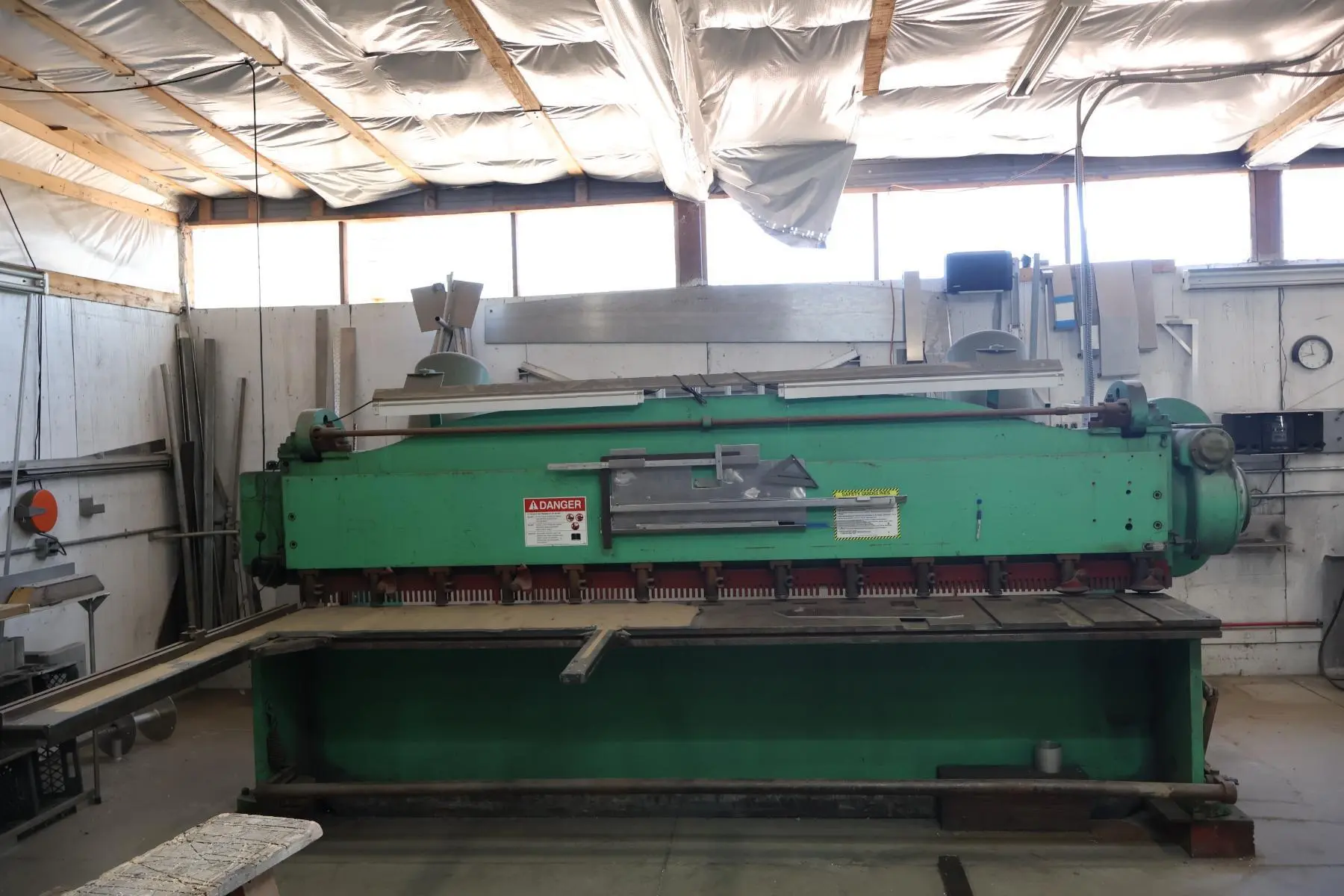

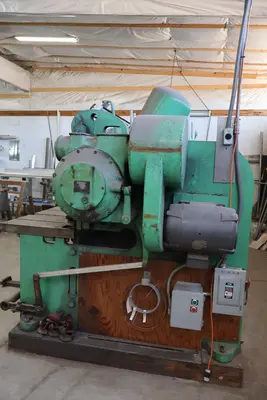

USED 1966 CINCINNATI INC 1812

Heavy-Duty Mechanical Power Squaring Shear
OEM: Cincinnati Incorporated
Model: 1812
Date of Manufacture: 1966
Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 27.4-13.7 Amps
Main Motor: 10 HP, 1645 RPM

Features and Specifications:
...Cutting Length: 12’ (144”)
...Knife Size: 1” x 4” x 150”
...Cutting Speed: 60 SPM
...Between Housings: 12’-3” (147”)
...Throat: 18”

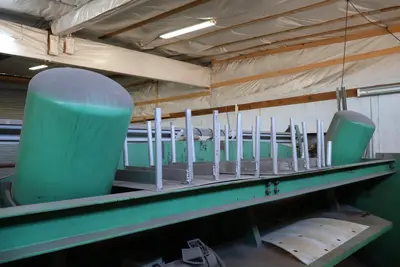

...(13) Hydraulic Hold Downs
......Hold Down to Knife Edge: 5/8”
......Distance Under Hold Down: ½”
...Rake: ¼” IPF (Inch/Foot)

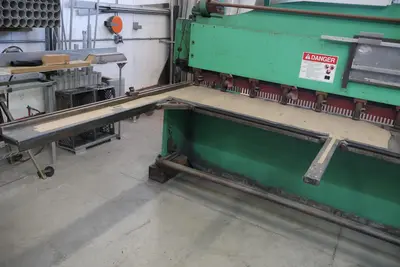

...Front Apron: 24” x 150”
...Table Working Height: 32” (from floor)
...Foot Treadle

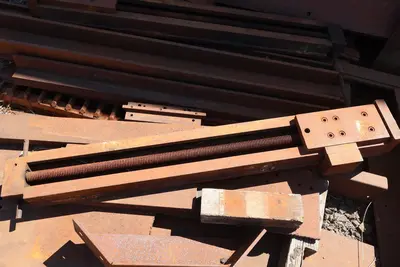

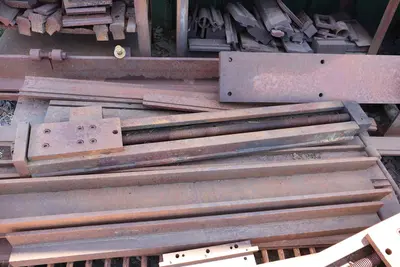

...Support Arms:
......(1) 54” Length
......(2) 28” Length
...Back Gauge Travel: 0” – 36”

Machine Dimensions (approx.): 180” x 84” x 80” (without arms)
Machine Weight (approx.): 23,000 lbs.

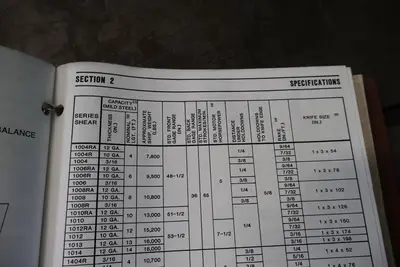

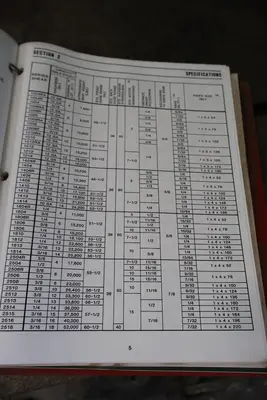

Approximate specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Functionality Notes & History:

The shear was used for marine boat fabrication and repair. The present owner ran the shear for 9-10 years before he closed his business. They only sheared between 1/8” and ¼” Aluminum, between 2’ and 5’ length mostly. Once in a while they would shear 8’ and 12’ lengths. Video imbedded in advertisement showing operation. The equipment is under power and available for testing and inspection.

The current owner retired after 40 years and is selling the property, the shop, and other buildings on the land. This machine needs to be loaded by my rigger, who has already reviewed the job. He has provided my with a quote for moving from the shop and loading on a truck.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop on loading on their transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can quote loading and shipping.

Contact MD Equipment Services LLC to schedule an inspection or arrange purchase details.
