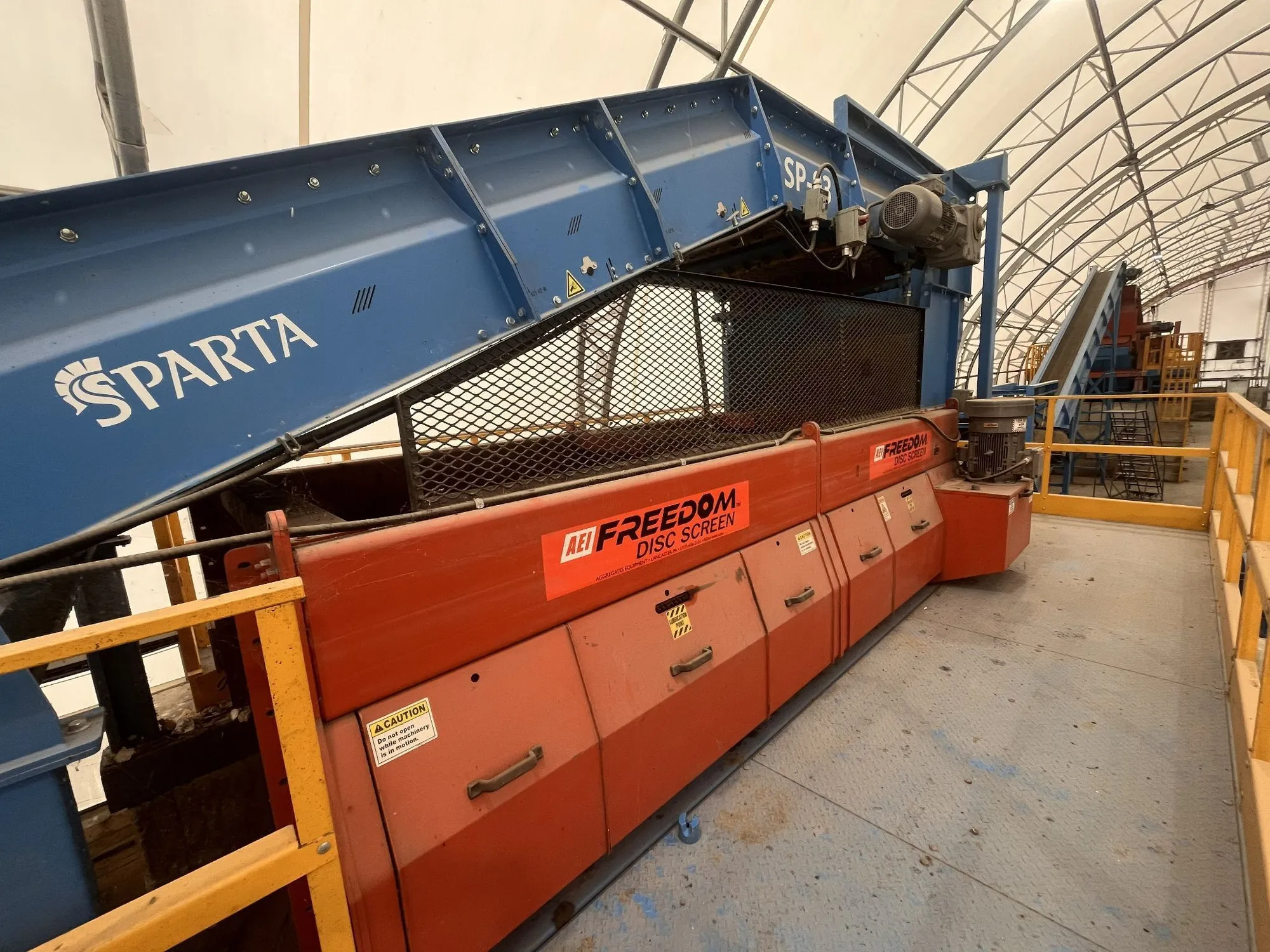

USED AGGREGATES EQUIPMENT INC AEI DS4000 S90

Model: DS4000/90
Heavy-duty disc screen

. Drive System:
Complete drive assembly including:
Nord gear drive
Drive guard
15 HP TEFC electric motor
575 Volt, 3 Phase
1,800 RPM motor
188 RPM screen speed
Fixed motor mount on left-hand side

. Screening System:
Hardox reinforced screening discs
Patented flat-profile disc design for superior material agitation and extended wear life
Screen cut point adjustable through electronic controls

. Shaft & Bearing Construction:
Solid steel shafts mounted in pillow block bearings
Centralized grease lubrication system
Steel safety tubes enclosing exposed rotating shafts
Heavy-duty sprocket and chain drive
Synchronized shaft rotation

. Controls & Safety:
Rotation sensor on last shaft
Pre-wired to terminal strip inside NEMA 4 junction box
Interfaces with customer-supplied controls
Safety switches on maintenance access panels
Limit machine operation when access panels are open
Pre-wired to terminal strip

. Construction:
Heavy-duty screen box
Prime and finish painted
