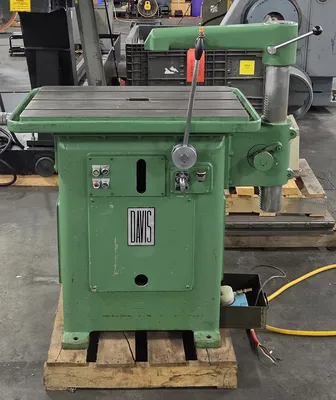

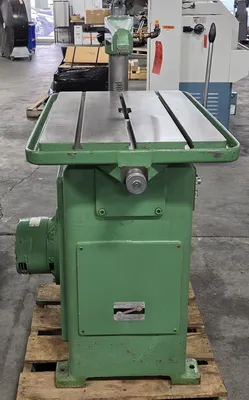

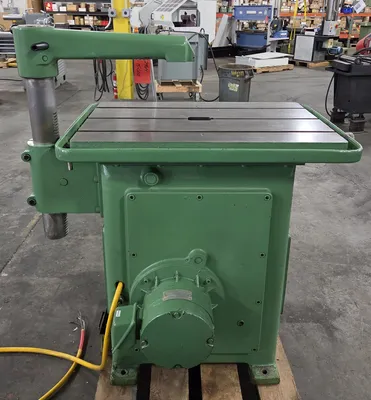

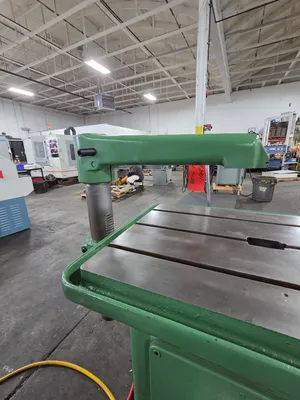

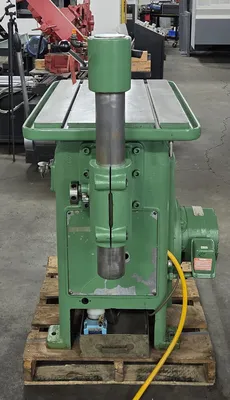

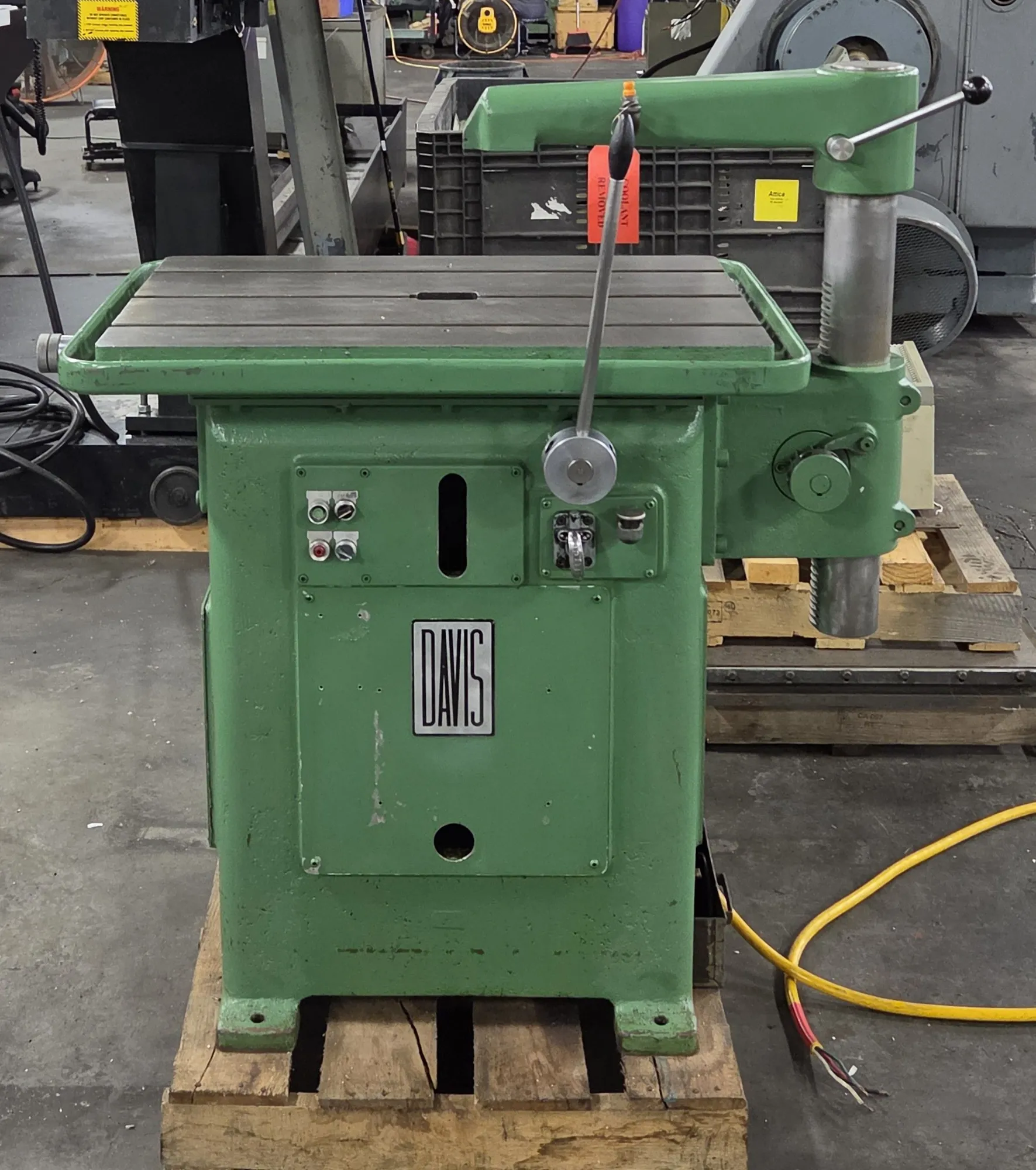

USED HANSFORD DAVIS 15

Davis Keyseater Model 15B

S/N 15-608
Keyway Cutting Capacity: 1/16″ to 1–1/2″ (in steel)
Throat Depth: 19″
With DA-60 extra throat depth assembly: 22″
Maximum Height of Work Standard: 12″
With D-1701 arm post option: 18″
Maximum Length of Cut:
16″ long cutter: 4″
20″ long cutter: 8″
24″ long cutter: 12″
30″ long cutter: 18″

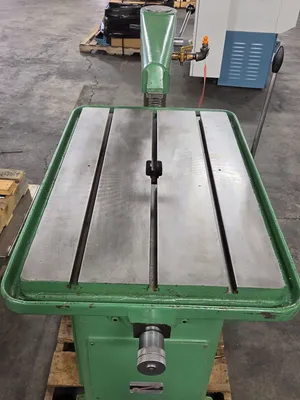

Table Size: 20″ x 31”
Table Travel:1–1/2″
Strokes per Minute: 4–1/2”
Standard: 45
With DA-27 variable speed drive: 11–56

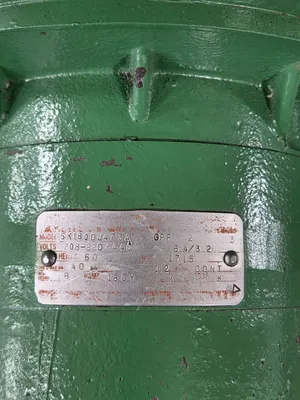

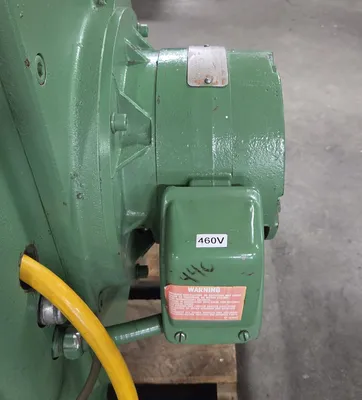

Motor HP: 2 hp
Air Pressure Req. For Auto Feed: 80psi Minimum
Air Consumption: 3 SCFM
Number of T-Slots in Table: 3

Shipping Dimensions 41″ x 44″ x 48″
Weight: 1600 lbs.

Phase: 3
Wired: 460

Specifications Subject to Verification
