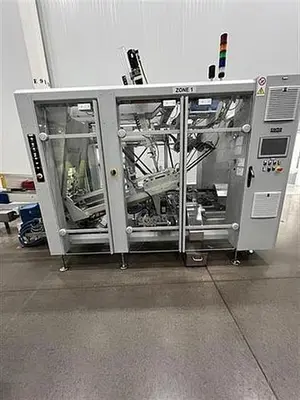

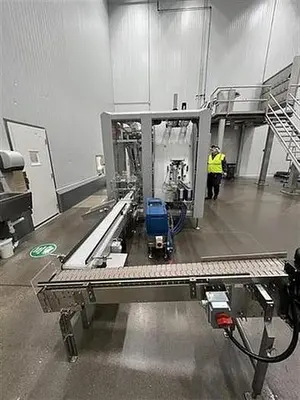

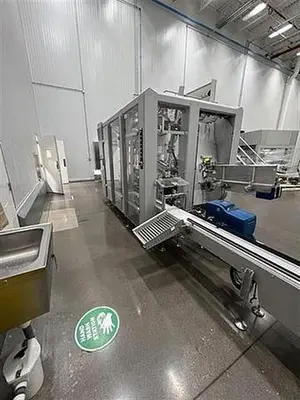

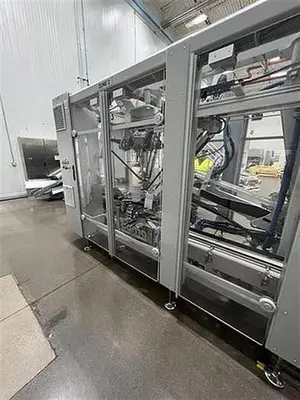

Cama Robotic Case Former, Loader and Closer Model IF 316

Cama Robotic Case Former, Loader and Closer Model IF 316
- Model IF 316

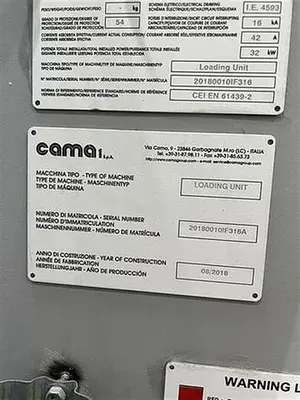

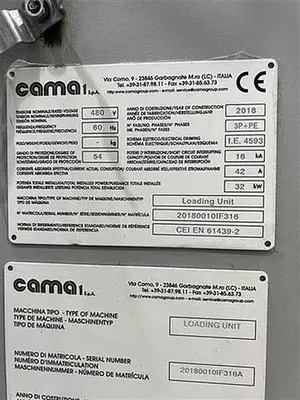

- Serial#20180010IF316A
- Built 2018
Type: Robotic case former, loader, and closer
All In One Forming Closing And Loading

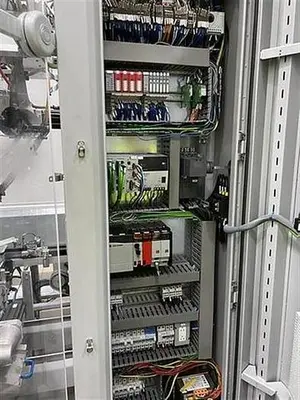

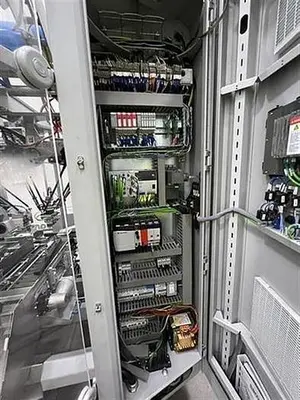

Cabinet Free Onboard Electronics
Speed: Up to 180 cases per minute
Product size range: .78" to 5.90" Wide (20 mm to 150 mm wide), .78" To 5.90" High. (20 mm to 150 mm high), and .59" To 5.90" Long. (15 mm to 150 mm long)
Case size range: Up to 15.74"L x 11.81"W x 11.81"H (400 mm long, 300 mm wide, and 300
mm high)
Closure type: Hot melt glue
Construction material: Stainless steel
480V 60Hz 3Ph

Case Former:
Type: Two-axis robotic arm
Magazine capacity: Up to 400 blanks
Blank size range: Up to 31.49"L x 23.62"W x 15.74"H (800 mm long, 600 mm wide, and 400 mm high)

Loader:

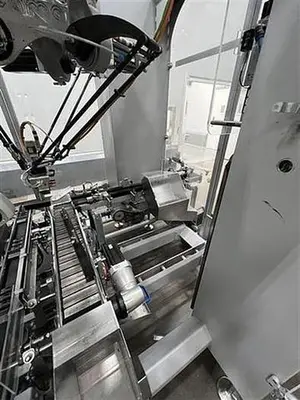

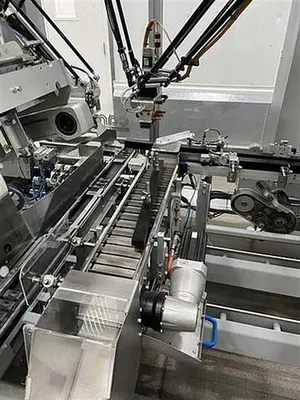

Type: Four-axis delta robot
Product handling: Vacuum grippers
Product orientation: Automatic

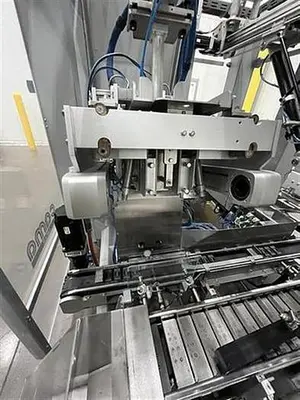

Closer:
Type: Two-axis interpolated robot with customized lidding tool
Lid size range: Up to 15.74"L x 11.81"W x 3.93"H (400 mm long, 300 mm wide, and 100 mm high)

Additional Features:
Human-machine interface (HMI): Touchscreen interface for monitoring and control
Recipe management: Store and recall settings for different products and sizes
Safety features: Emergency stop buttons, light curtains, and other safety devices
Remote diagnostics: Ability to monitor and troubleshoot the system remotely

Benefits:
Increased efficiency and productivity
Reduced labor costs
Improved product quality and consistency
Reduced risk of injuries
Greater flexibility and adaptability to different products and packaging formats
