USED 2014 KOIKE ARONSON 61001072

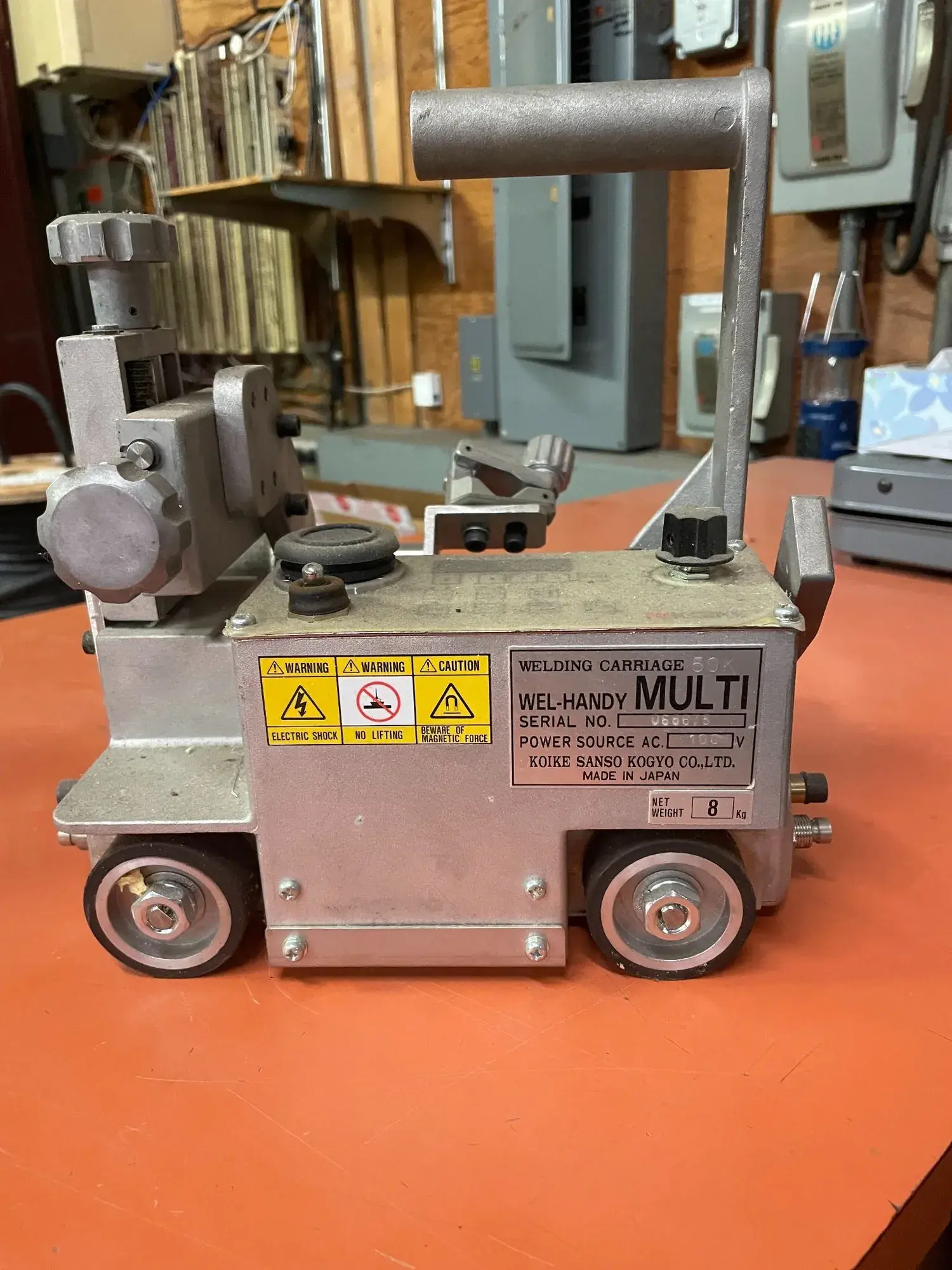

The Koike Aronson Wel-Handy Multi model 61001072 is a compact, lightweight portable welding carriage designed for automated continuous and stitch or tack welding applications. Constructed with a robust aluminum die-cast body, the unit weighs approximately 15 pounds and features physical dimensions of 10.2 inches by 10.2 inches by 10.4 inches. It operates on input power configurations ranging from 120V to 220V AC. Equipped with a four-wheel-drive system utilizing heat-resistant rubber rollers, the carriage delivers a pulling power of 66 pounds. A powerful permanent rare earth magnet ensures reliable adhesion and traction, allowing the machine to perform stable out-of-position welds in both horizontal and vertical up orientations. The Wel-Handy Multi operates without the need for dedicated track systems, automatically guiding itself along a fillet plate using a tracking guide roller. The system provides a variable travel speed ranging from 6 to 60 inches per minute. For enhanced operational automation, it incorporates built-in limit switches on both ends of the carriage that trigger an automatic shutdown sequence for both machine travel and welding operations upon reaching a predetermined stop point.
