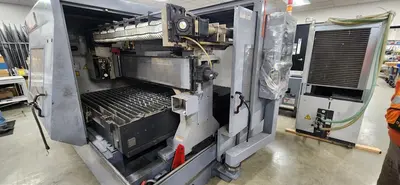

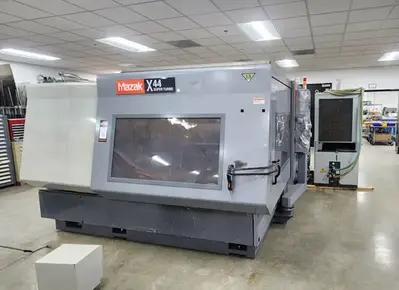

USED 2002 MAZAK STX-44 1.5 KW CO2 LASER

The Mazak STX-44 is a compact 2D CO2 laser cutting machine designed for precision and efficiency in localized or space-limited production environments. This machine features a 1.5 kW laser oscillator and is constructed with a rugged Meehanite frame to damp vibrations during operation, ensuring high accuracy and consistent cutting results. It features a unique 4' x 4' table design capable of accommodating a maximum workpiece size of 49.2 inches by 49.2 inches and supporting a maximum part weight of 606 pounds.

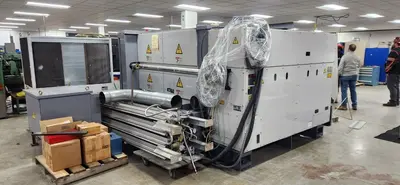

The system provides axis travel distances of 50 inches along the X-Axis, 50 inches along the Y-Axis, and 5.5 inches along the Z-Axis. It operates at a rapid traverse rate of 300 inches per minute, optimizing cycle times for job shops focusing on smaller parts. Equipped with a CNC Mazatrol control system, the machine offers programmable logic and simplified operation through its specialized interface. Structurally, the unit has physical dimensions of approximately 49.2 inches long by 49.2 inches wide, with an overall weight of 18,000 pounds. It is typically configured with standard ancillary equipment including a chiller, condenser, transformer, and an electric foot pedal or pedestal control, maintaining a completely enclosed cutting area to meet stringent safety standards.
