USED 1998 BMS BMCM15-54

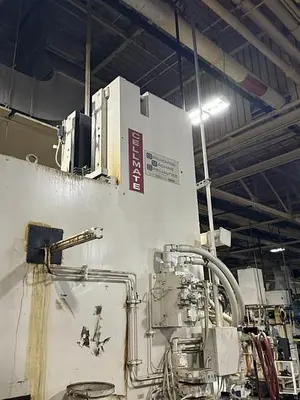

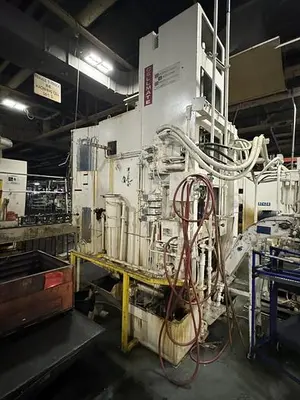

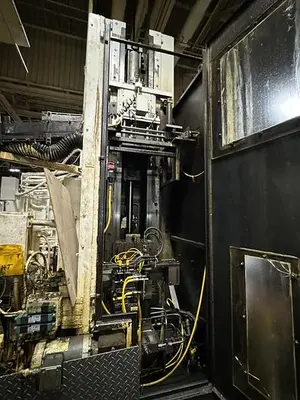

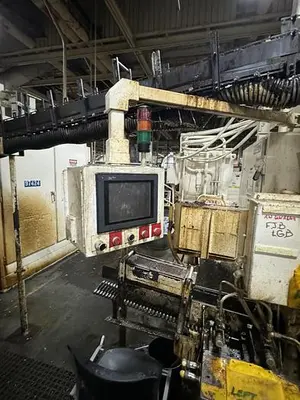

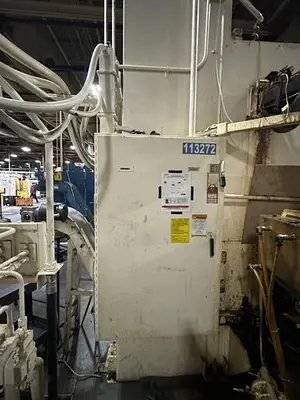

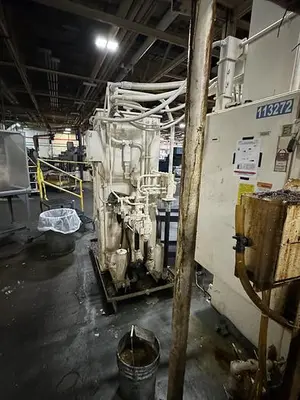

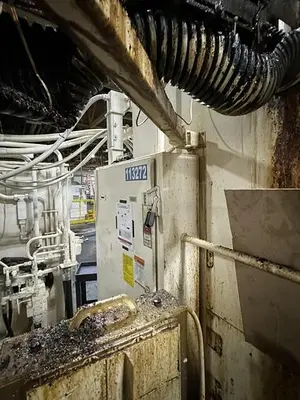

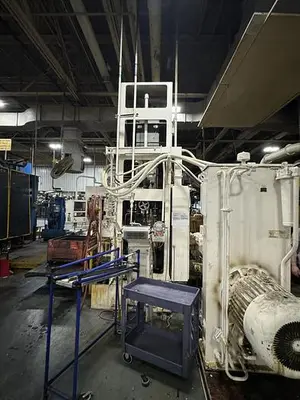

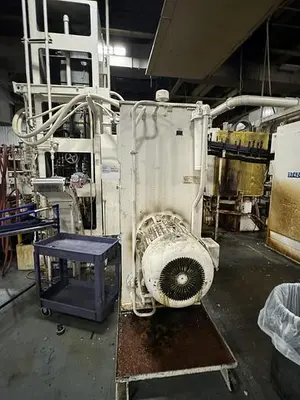

THE 1998 BMS CELLMATE BMCM15-48 IS A VERTICAL TABLE-UP INTERNAL BROACHING MACHINE FEATURING A DUAL STATION CONFIGURATION. IT PROVIDES A 15-TON PULLING CAPACITY AND A 48-INCH STROKE LENGTH. DESIGNED FOR FLOOR-LEVEL LOADING TO ELIMINATE THE NEED FOR PITS OR OPERATOR STANDS, THE MACHINE IS POWERED BY A 40 HP MAIN MOTOR. TECHNICAL SPECIFICATIONS INCLUDE A PULLING CAPACITY OF 30,000 LBS, A MAXIMUM CUTTING SPEED OF 30 FPM, AND A MAXIMUM RETURN SPEED OF 60 FPM. THE HYDRAULIC SYSTEM INCORPORATES A 200-GALLON OIL RESERVOIR, WHILE THE COOLANT SYSTEM HAS A 175-GALLON RESERVOIR CAPACITY. THE UNIT OCCUPIES AN APPROXIMATE FLOOR SPACE OF 118 INCHES BY 72 INCHES, STANDS 164 INCHES TALL, AND WEIGHS APPROXIMATELY 32,000 LBS. IT IS EQUIPPED WITH AN EXTERNAL HYDRAULIC UNIT, A CHIP CONVEYOR, AN AUTO LOADER, A JLC CONTROLS PANEL, AND AN OPERATOR STATION.
