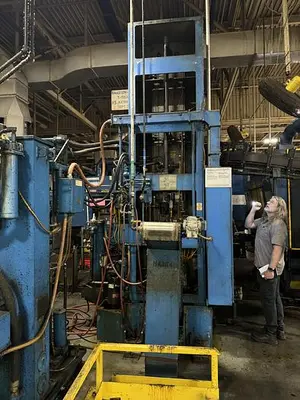

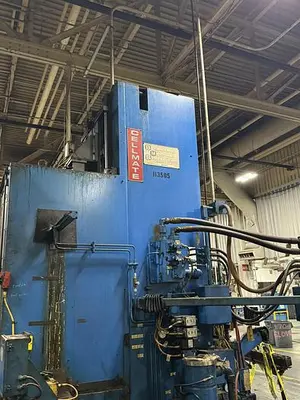

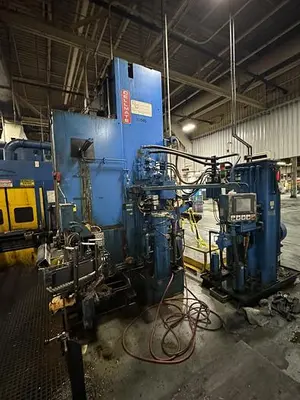

USED 1998 BMS BMCM15-54

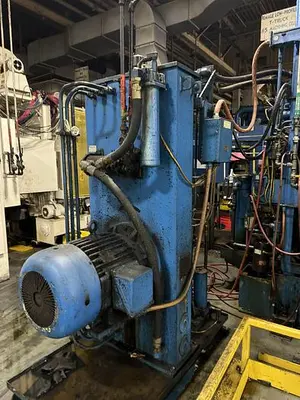

THE 1998 BMS CELLMATE BMCM15-48 IS A DUAL-STATION VERTICAL TABLE-UP INTERNAL BROACHING MACHINE DESIGNED FOR HIGH-PRODUCTION CELL MANUFACTURING ENVIRONMENTS. IT FEATURES A PULLING CAPACITY OF 30,000 LBS (15 TONS) AND A 48-INCH STROKE. THE MACHINE IS ENGINEERED FOR FLOOR-LEVEL LOADING TO ELIMINATE THE NEED FOR PITS OR OPERATOR STANDS. TECHNICAL SPECIFICATIONS INCLUDE A MAXIMUM CUTTING SPEED OF 30 FPM AND A MAXIMUM RETURN SPEED OF 60 FPM. THE HYDRAULIC SYSTEM IS GRAVITY-FED WITH AN OIL RESERVOIR CAPACITY OF 200 GALLONS, WHILE THE COOLANT RESERVOIR HOLDS 175 GALLONS. POWER IS PROVIDED BY A 40 HP MAIN MOTOR. THE PHYSICAL FOOTPRINT OF THE UNIT IS APPROXIMATELY 118 INCHES BY 72 INCHES, WITH AN OVERALL HEIGHT OF 164 INCHES AND A WEIGHT OF 32,000 LBS. THIS MODEL IS EQUIPPED WITH A DUAL-STATION SETUP, AN AUTO-LOADER, A CHIP CONVEYOR, AND AN EXTERNAL HYDRAULIC UNIT. CONTROL IS MANAGED VIA A JLC CONTROLS PANEL AND AN OPERATOR'S STATION. ITS VERTICAL TABLE-UP DESIGN FACILITATES INTERNAL BROACHING OPERATIONS AND OFFERS FLEXIBILITY FOR INTEGRATION INTO VARIOUS MANUFACTURING CELLS.
