USED 2008 Harig EZ SURF II, 2008, TRU-TECH CNC, ENCLOSURE

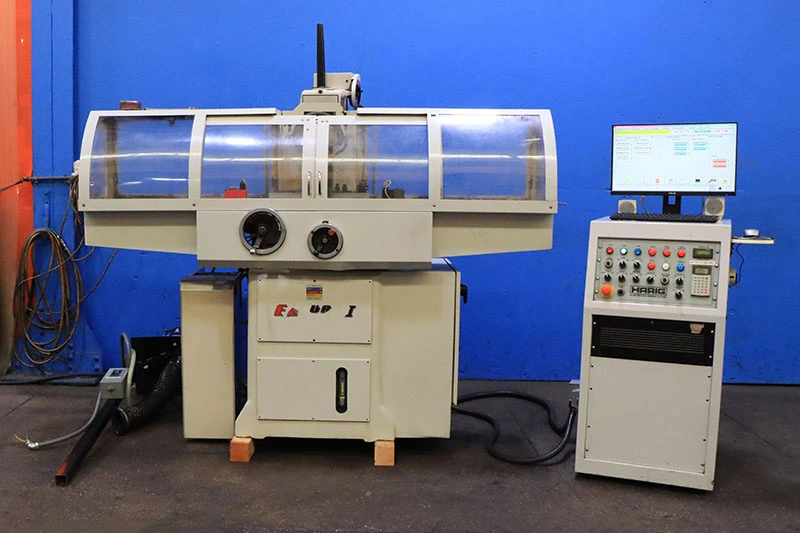

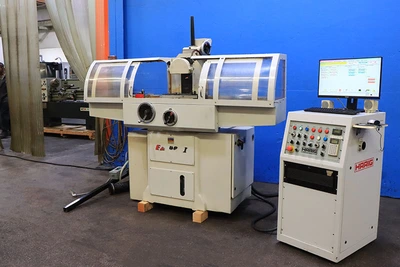

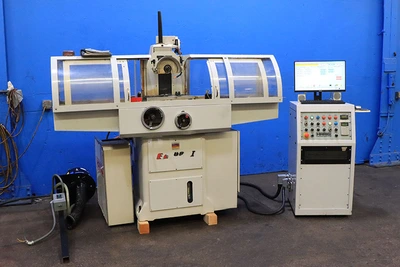

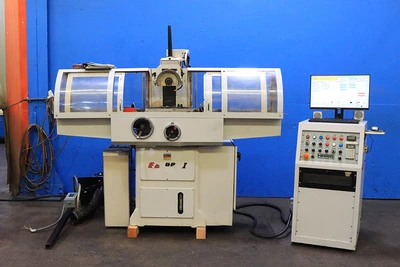

HARIG "EZ SURF II" CNC SURFACE GRINDER

      WITH FACTORY ENCLOSURE

  S/N: EZ-1046      New - 2008

SPECIFICATIONS:

Table Working Surface, Max. ..... 6" x 18"

Travels:

Longitudinal - X-Axis ........... 20"

Cross - Z-Axis .................. 6-3/4"

Grinding Spindle:

Speed - Variable ................ 2000 - 5000 RPM

Center to table, max. height: ... 12"

Grinding Wheel, Std. Size .... 8" x 1/2" x 1- 1/4"

Grinding wheel, max. width ...... 1"

Motor............................ 2 HP

Feed Rates:

Longitudinal .................... 1/4" - 70 FPM

Wheelhead increments, minimum ... 0.00001

Machine Dims., approx. ...... 72" L-R x 48" F-B x 84" H

Machine Weight, approx. .......... 2,250 Lbs.

EQUIPPED WITH:

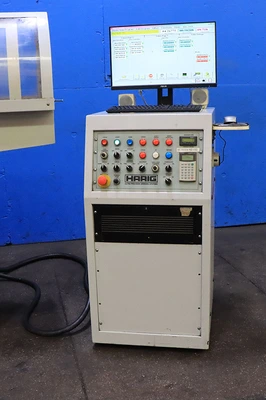

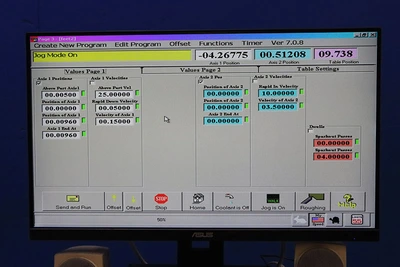

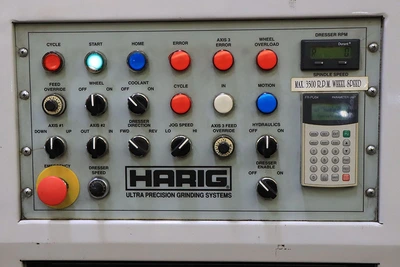

EZ-Surf PC Based 3-Axis CNC Programmable Control

(Table (Hydraulic Servo Controlled), Cross & Vertical

 Axes by Ball Screws, with Servo Motors/Drives)

3-Axis Automatic Operation, and 3-Axis Hand

 Feed Operation with Handwheels.

MDI-Setup-Teach-Program & Edit

3-Axis Linear & Circular Interpolation

Absolute & Incremental Operation

Dwell in MDI or End of Stroke

RS-232 Port

Electronic Handwheels on Y & Z Axes

Ballscrews on Y & Z Axes

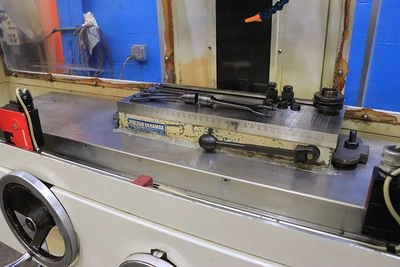

Walker Ceramax "Fine-Division" Permanent Magnetic Chuck

Full Enclosure

Work Light

Coolant System Comes with Our Machine

"Royal Mist" Mist Collection Unit

2 H.p./3/60/208-230-460 Volt Spindle Motor

Machine is Presently Wired for 3/60/220 Volts

** Spindle is "Whisper Quiet, as are the

     Ball Screw Driven Axes"  **

** Excellent Condition - Original Paint **

** Runs Superbly, See the Video Below! **

Link to video: https://youtu.be/-gMnD6qVnEI?si=a21zpU0SoWkqpQOH

FOR MORE INFORMATION: Call Andy at 973-497-7600
