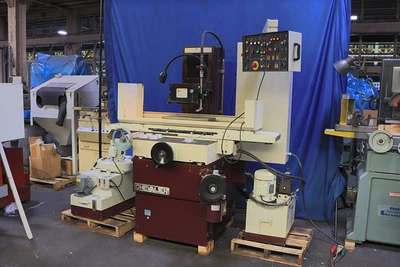

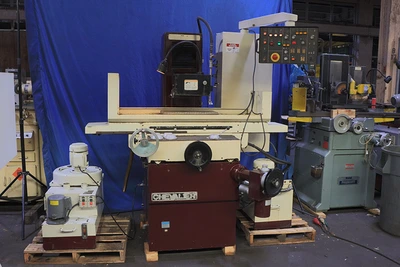

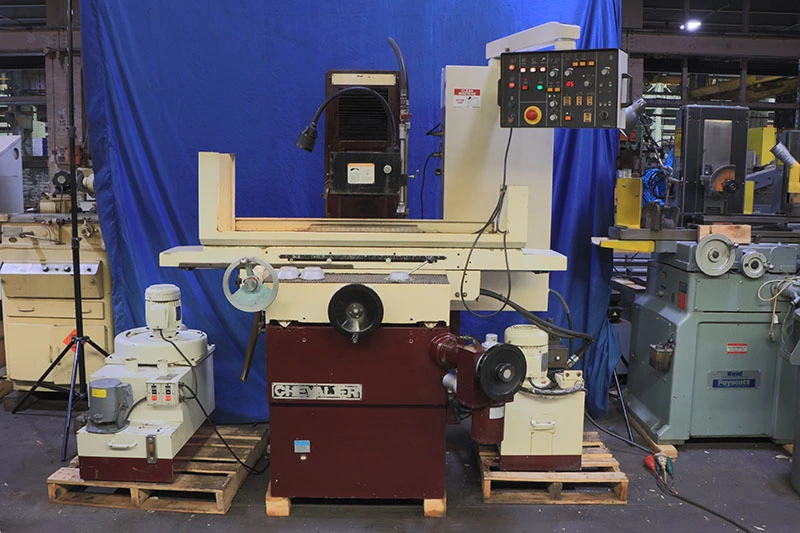

USED 2000 Chevalier FSG-3A818, 2000, PROG. AUTO IDF, 3X AUTO FEEDS

  8" X 18" CHEVALIER PRECISION SURFACE GRINDER

W/MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED

MODEL: FSG-3A818      S/N: M3898010     NEW: 2000

MAX. GRINDING CAPACITY ................. 8" X 18"

MAX. LONGITUDINAL TABLE TRAVEL, HYD. ... 19- 3/4"

MAX. LONGITUDINAL TABLE TRAVEL, MANUAL.. 21"

MAX. CROSSFEED TRAVEL, AUTOMATIC ....... 9"

MAX. CROSSFEED TRAVEL, MANUAL .......... 9- 1/2 "

DIST. FROM SPINDLE CENTER TO TABLE ..... 18 "

VARIABLE TABLE SPEED, HYDRAULIC ........ 16' TO 82' FPM

AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.24"

RAPID TRAVEL, CROSS FEED ............... 48" IPM

CROSSFEED HANDWHEEL, PER GRADUATION .... 0.001"

                     PER REVOLUTION .... 0.2"

AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"

AUTO DOWNFEED DIAL PER GRADUATION ...... 0.1"

RAPID TRAVERSE RATE .................... 13" IPM

SPINDLE MOTOR .......................... 2 HP

STANDARD GRINDING WHEEL .......... 8" DIA. x 1/2" x 1.25"

APPROX. WEIGHT ......................... 2,620 LBS.

APPROX. FLOOR SPACE REQUIRED ..... 86" x 61" Xx75"H

EQUIPPED WITH:

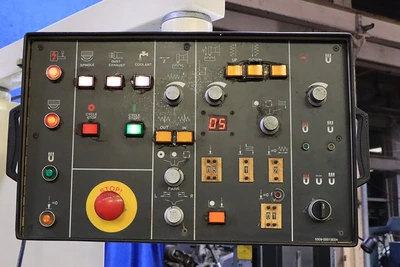

FULLY PROGRAMMABLE AUTO-CYCLE CONTROL W/DIGITAL DISPLAY

-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)

-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES

-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE

-POWER RAPID WHEELHEAD POSITIONING

HYDRAULIC TABLE TRAVERSE

POWER CROSSFEED BY AC MOTOR

TABLE GUIDEWAYS ARE HARDENED AND GROUND

BALL BEARINGS FOR FRICTIONLESS TABLE MOVEMENT

ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY

  HAND-SCRAPED FOR ACCURACY.

"MICRO" FINE FEED FOR VERTICAL AXIS (.0001" GRAD.)

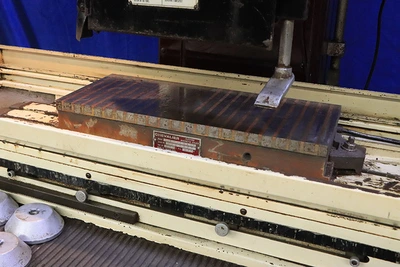

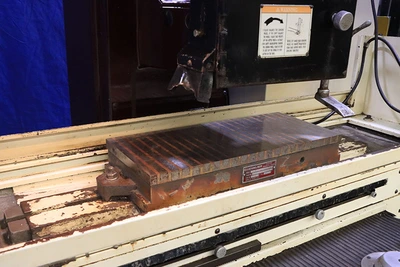

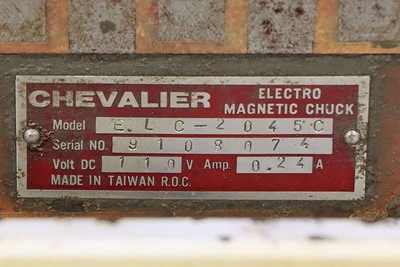

8" X 18" ELECTRO-MAGNETIC CHUCK

  W/VARIABLE HOLD NEUTROFIER CONTROL ON MACHINE'S

  CONTROL CONSOLE

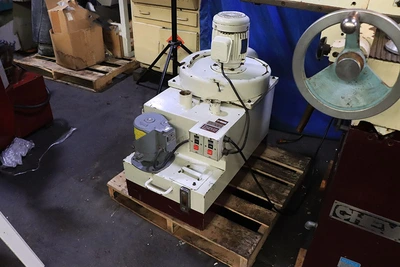

COMBINATION COOLANT SYSTEM COMPLETE W/SPLASH GUARDS,

  AND DUST COLLECTOR

EXTERNAL HYDRAULIC SYSTEM

AUTO LUBE SYSTEM

2 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE,

 3/60/208-230-460 VOLTS

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLT OPERATION

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** QUIET SPINDLE & HYDRAULICS - JUST BEAUTIFUL **

** ORIGINAL PAINT - EXCEPTIONAL CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
