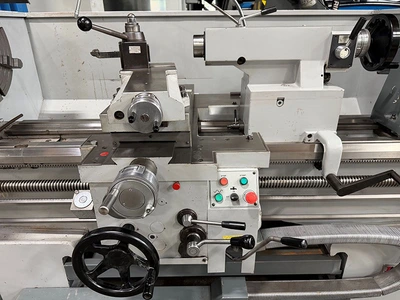

USED 2014 Lion 30CU/CU802-1500, 4" Hole Taper, Gap, Steady & Foll

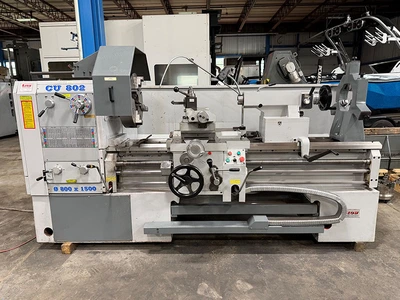

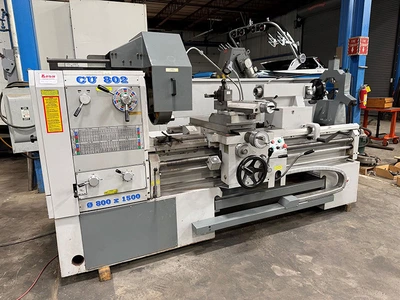

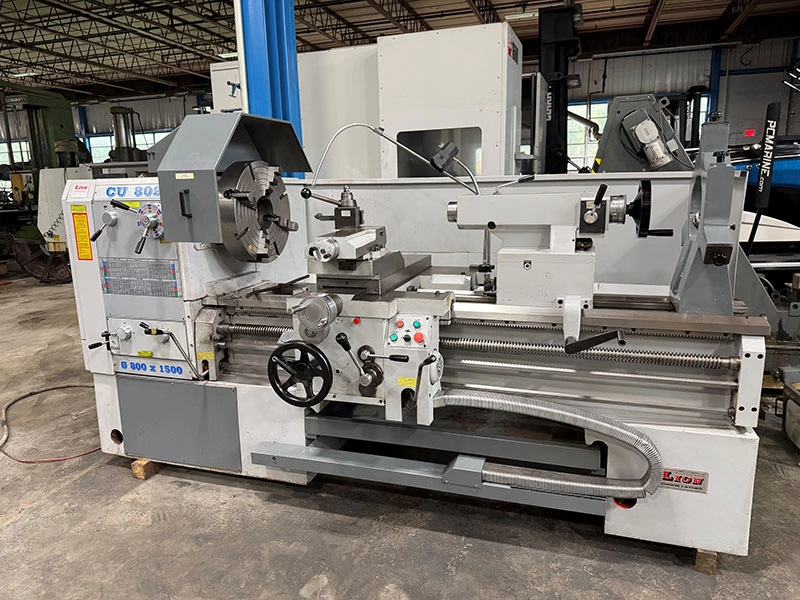

30"/38" X 60" LION GAP BED ENGINE LATHE

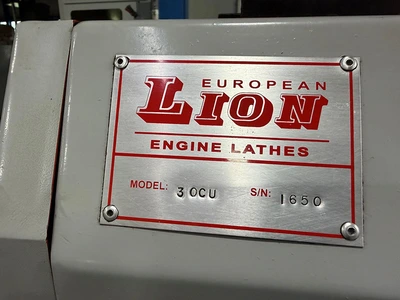

MODEL: CU802,   S/N: 1650,   NEW: 2014

SPECIFICATIONS:

SWING OVER BED ................. 30"

SWING OVER CROSS SLIDE ......... 20-1/4"

SWING IN GAP ................... 38-3/4"

DISTANCE BETWEEN CENTERS ....... 60"

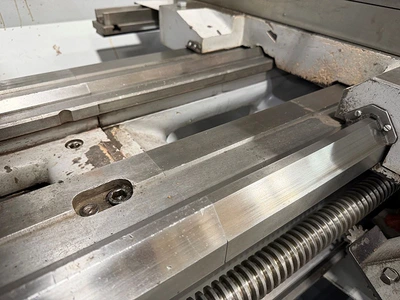

WIDTH OF BED ................... 19"

SPINDLE NOSE ................... D1-11" CAMLOCK

SPINDLE BORE ................... 4-1/8"

SPINDLE SPEED RANGE (16) ....... 9 - 1,600 RPM

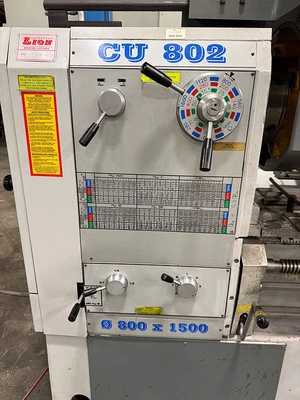

THREADS (72):

   INCH ........................ 60 - 1/8 TPI

   METRIC ...................... .5 - 240

FEEDS (72):

   LONGITUDINAL ................ .0019 - .893

   CROSS ....................... .0015 - .701

QUILL DIAMETER ................. 3-1/2"

QUILL TAPER BORE ............... 6MT

MAX QUILL STROKE ............... 7-3/4"

DIMENSIONS ..................... 124"L x 62"W x 67"H

APPROX WEIGHT .................. 10,500 lbs

EQUIPPED WITH:

- INCH & METRIC THREADING CAPABILITY

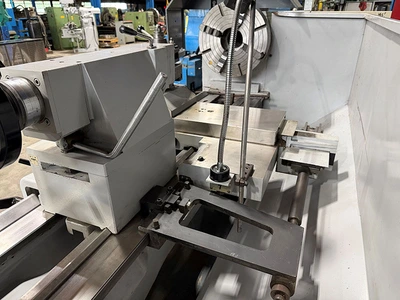

- TAPER TURNING ATTACHMENT

- 3-JAW CHUCK

- 4-JAW CHUCK

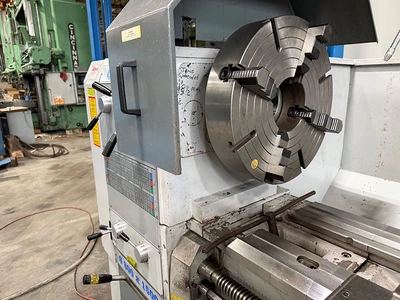

- 6-JAW CHUCK

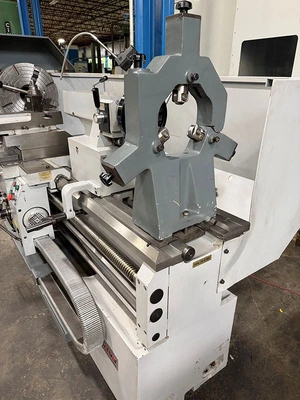

- STEADY REST

- FOLLOW REST

- ALORIS MODEL: CA QUICK CHANGE TOOL POST

- THREAD DIAL INDICATOR

- POWER RAPID TRAVERSE

- TWO SPEED TAILSTOCK

- COOLANT SYSTEM WITH REMOVEABLE CHIP PANS

- 17.5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
