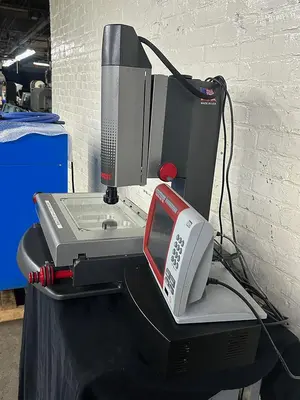

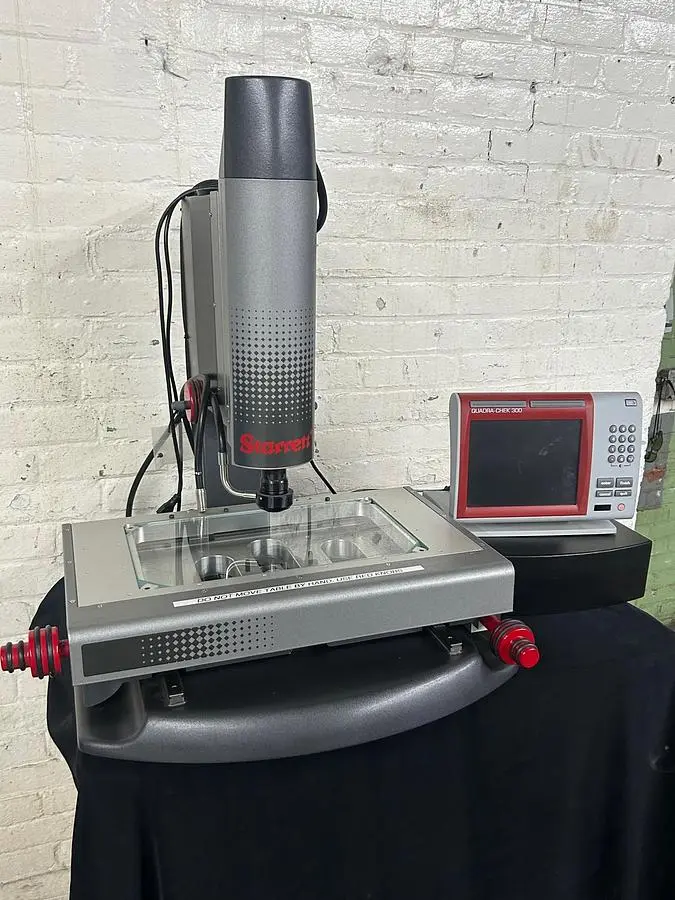

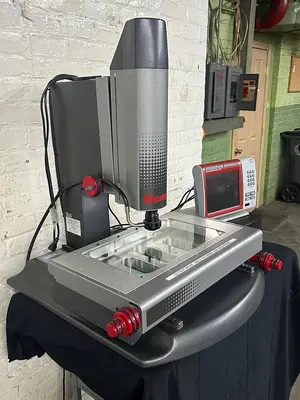

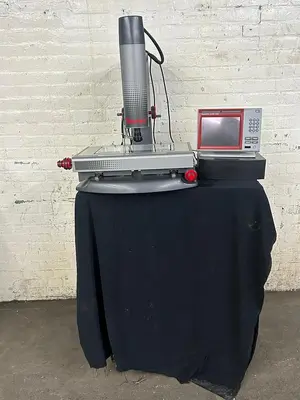

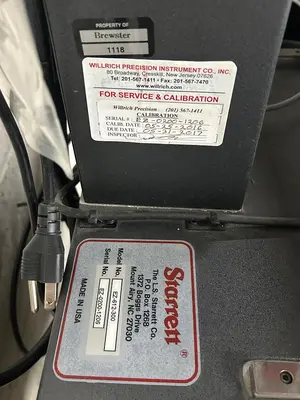

USED STARRETT GALILEO EZ VISION
Overview
Quadra-Chek QC300:

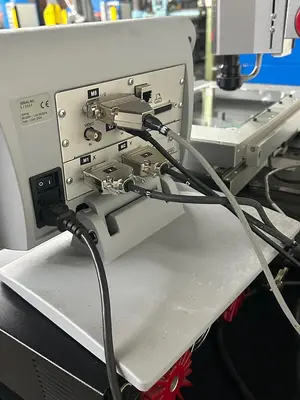

System Overview Display Unit: Quadra-Chek 300 digital readout with an 8.4" SVGA color touch screen. Core Tech: Patented Measure Magic software for automated 2D geometric feature measurements. Connectivity: Equipped with USB ports, RS232C serial ports, and parallel ports for printers and networks. Axis Inputs: Supports up to 4 axes of measurement input.
Operational Features: Video Edge Detection (VED): Built-in live video display with automated edge detection capabilities. Resolution: High precision down to .000004" (.0001 mm). Data Management: Image capture, archiving, and tolerance displays for quality control.
Specs
Voltage: 110V / 1PH / 60Hz

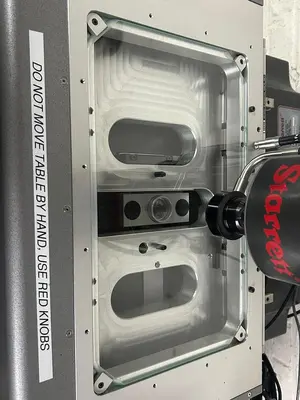

EZ300: 12" x 6" x 5.5" (300 x 150 x 125mm)
X-Y Accuracy (in/µm): E1=3.5+5L/1000
Z Accuracy (in/µm): E1=2.5+5L/1000
Zoom Optics: 6.5:1
Surface Ring Illumination: LED or Fi-O
Transmitted Illumination: LED or Fi-O
Part Fixturing: Optional
Video Pixel Calibration Standard: Optional
Control System/Software choices: MetLogix M3
