USED 2024 HOMAG "CENTATEQ N-300/VANTECH 510"

Lot Closes:: 8/18/2026 11:00:00 AM PT

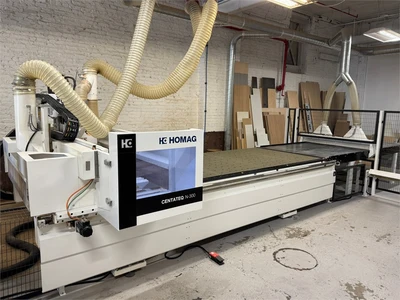

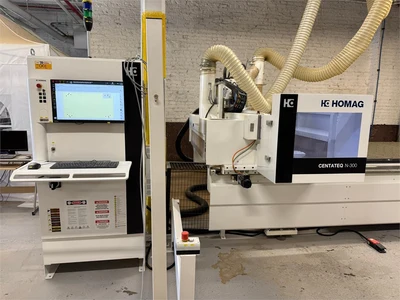

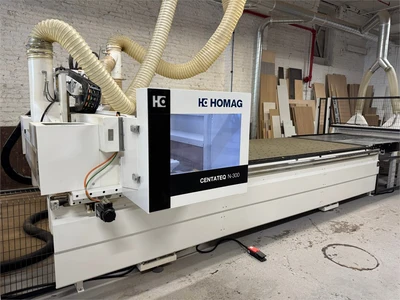

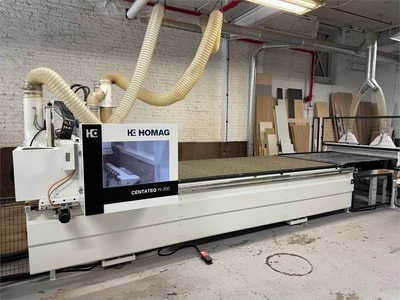

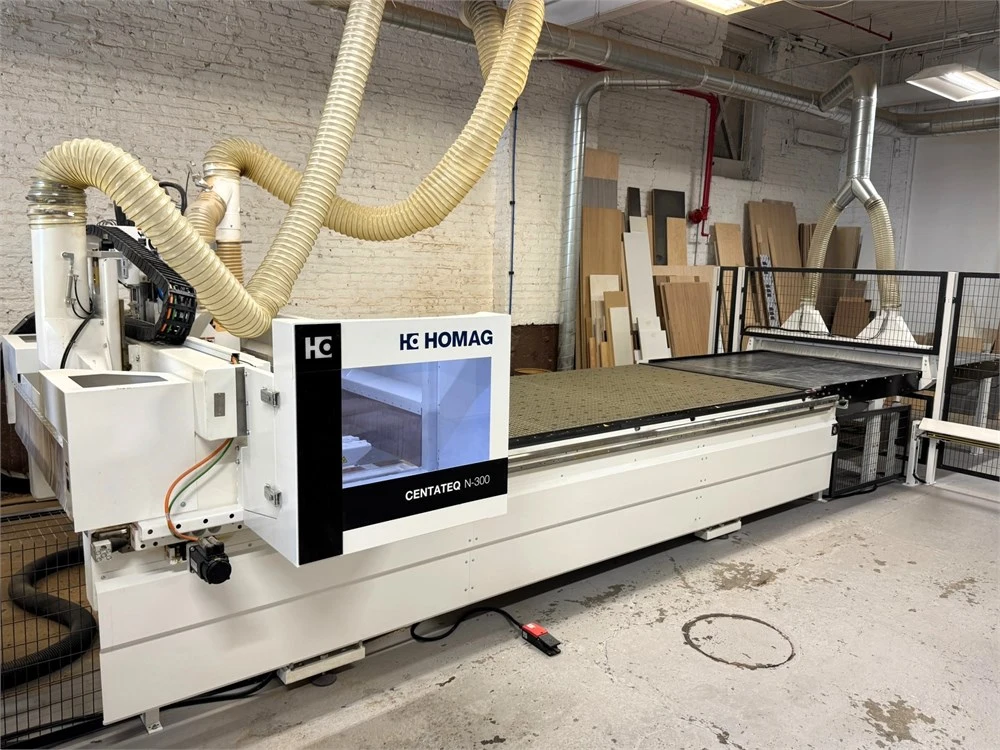

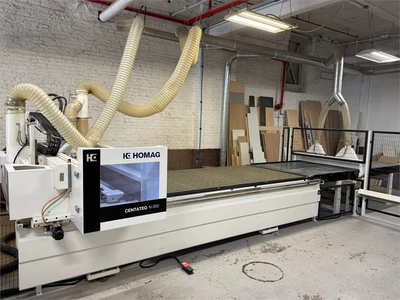

Homag "Centateq N-300/Vantech 510" CNC Machining Center (2024)
See video of machine in operation

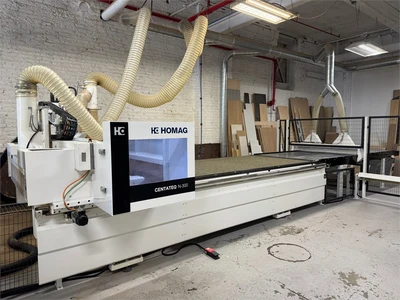

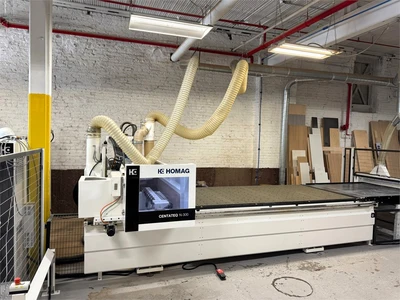

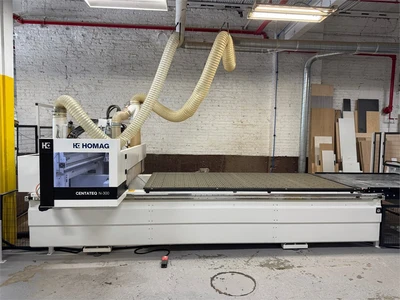

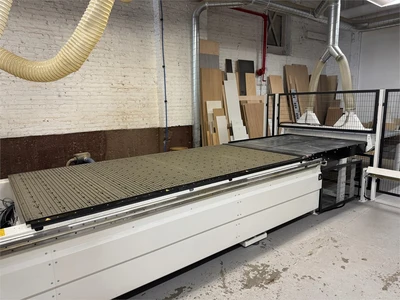

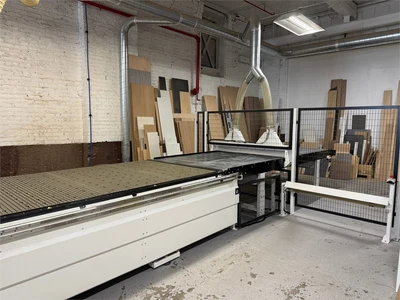

5' x 10' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
"X" Axis is 121" (3,075 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

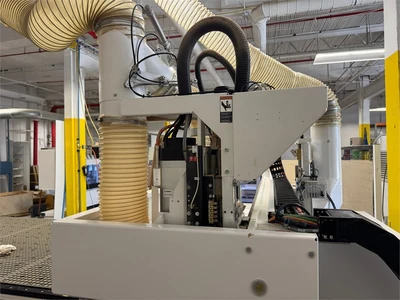

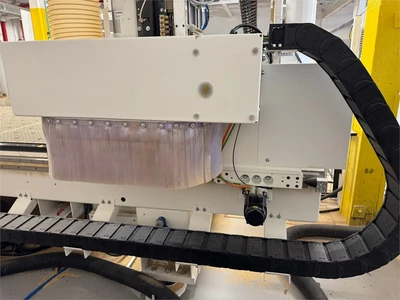

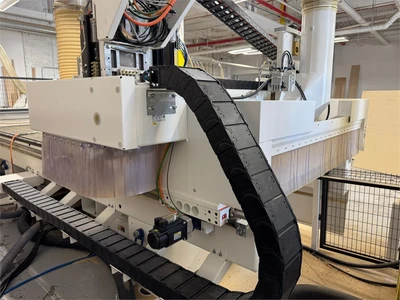

The head travels via AC brushless drives & THK linear motion guides on all axes.

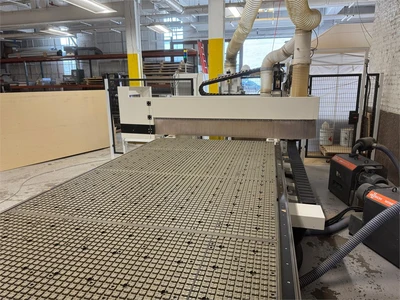

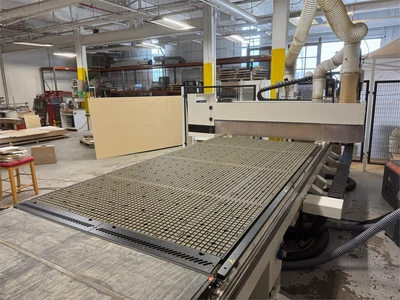

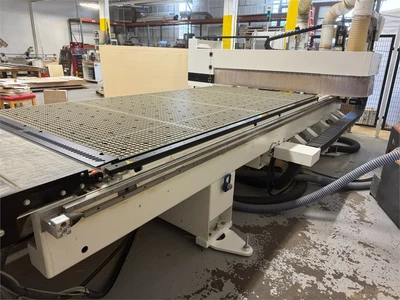

S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

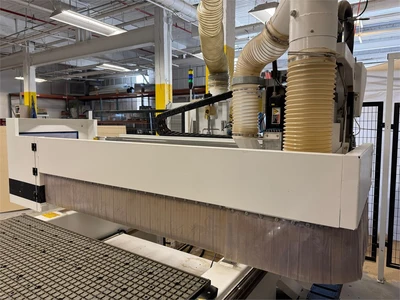

(1) 12 Kw (16 HP) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.

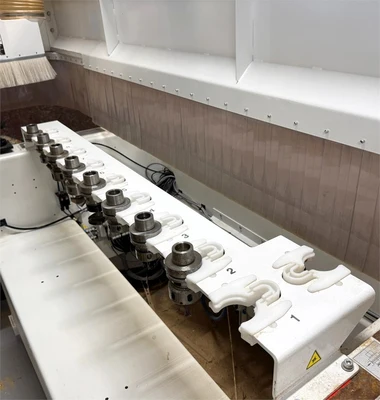

(10) Position Tool Rack
Touch-off pad.

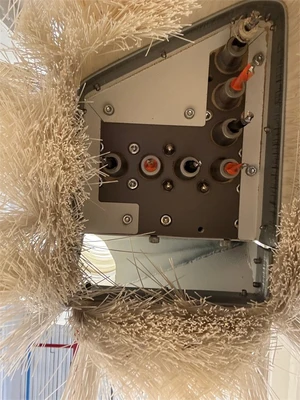

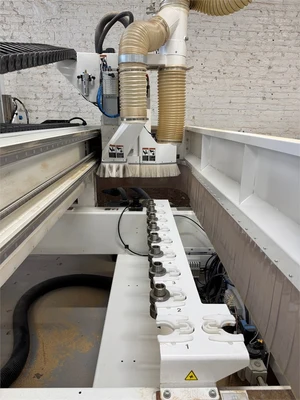

Boring unit with (7) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

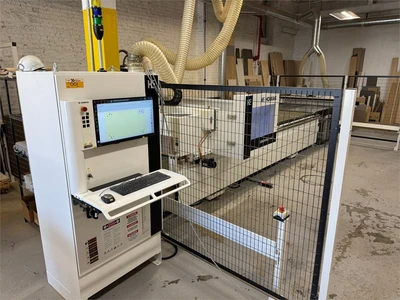

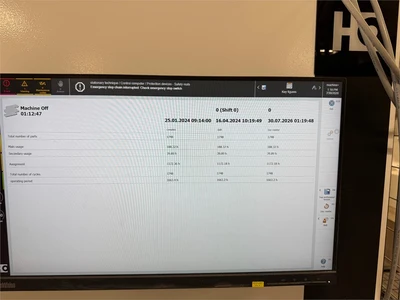

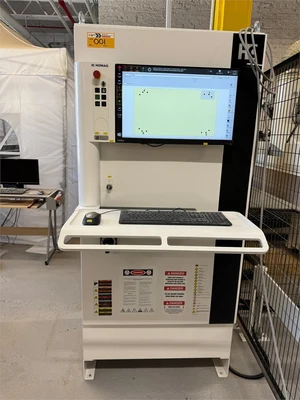

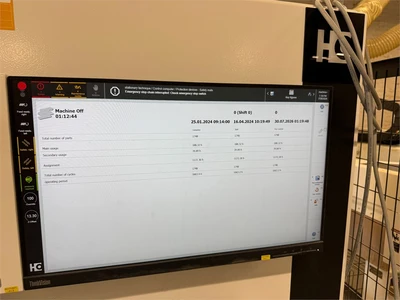

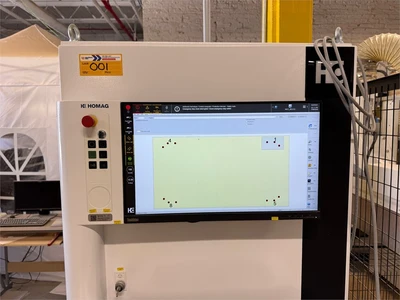

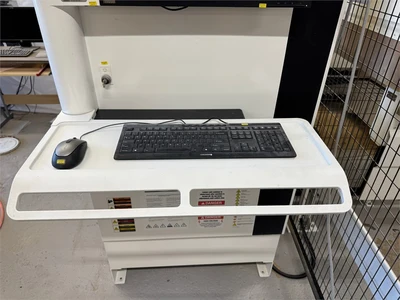

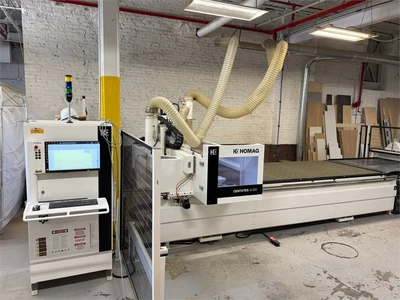

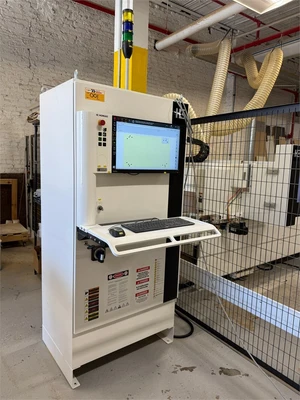

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.

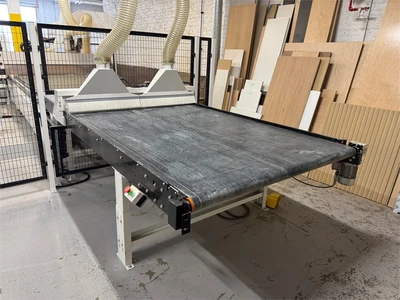

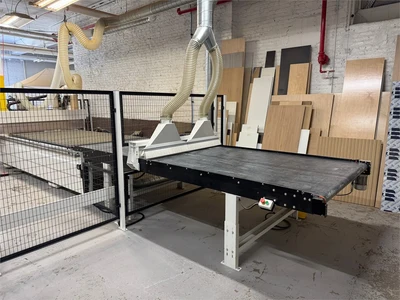

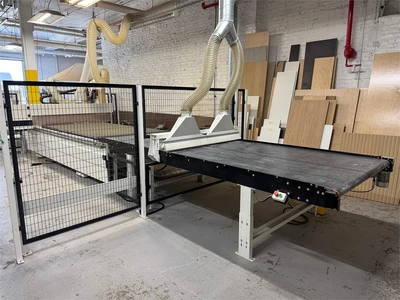

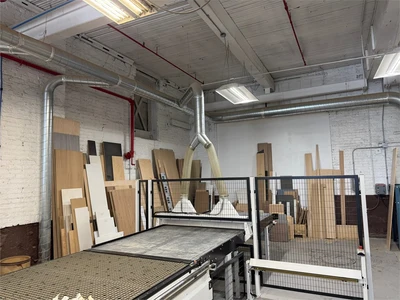

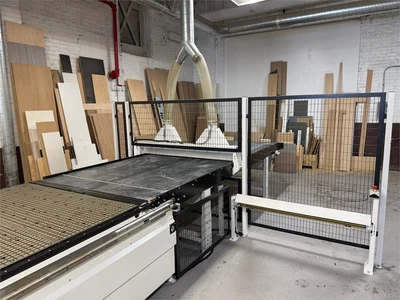

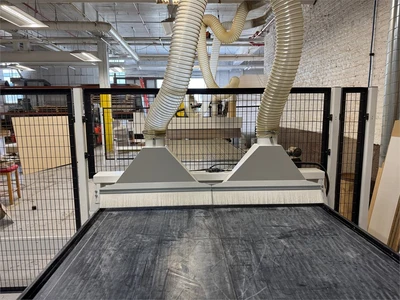

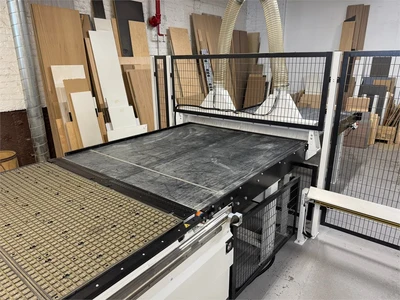

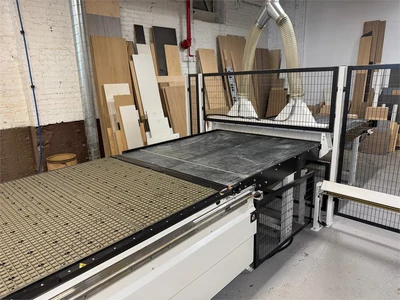

Rake off-feed system with 60" x 160" powered belt conveyor with top & bottom dust extraction.

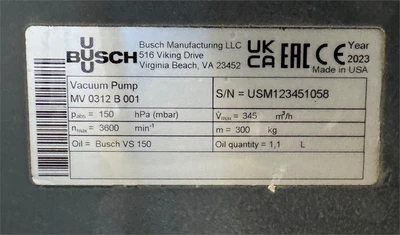

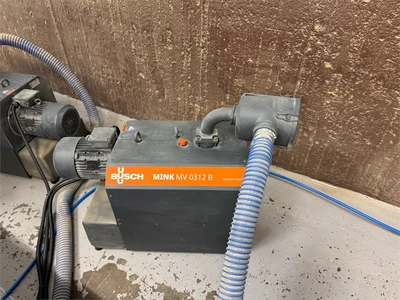

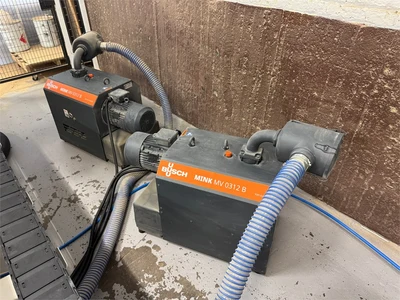

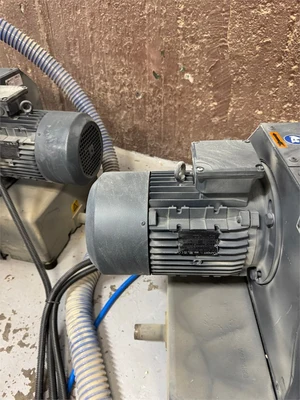

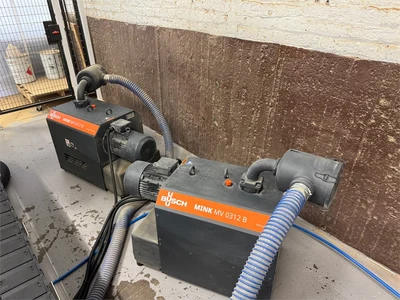

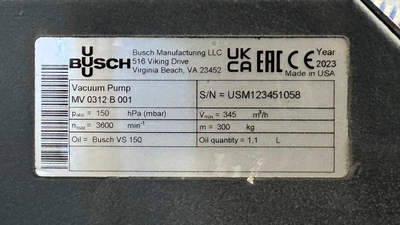

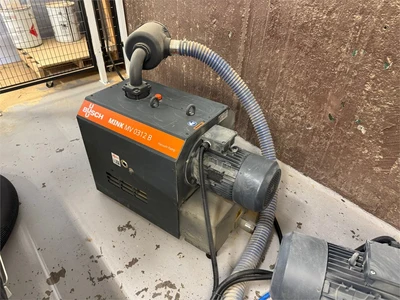

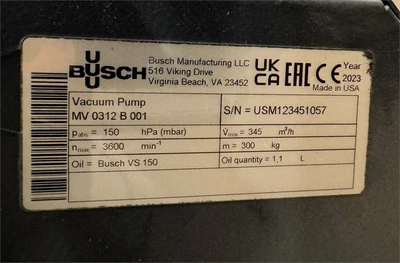

(2) Busch "Mink MV 0312 B" Vacuum Pumps, 345 M³/h, 3,600 RPM, 9 HP
Flex-pipe included
