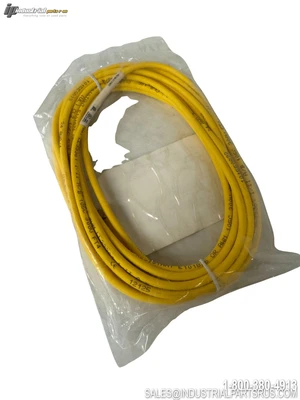

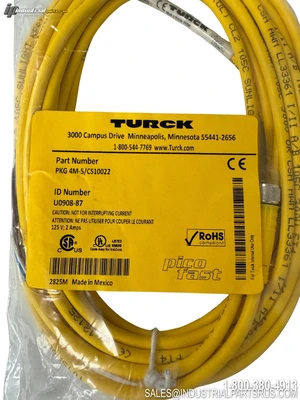

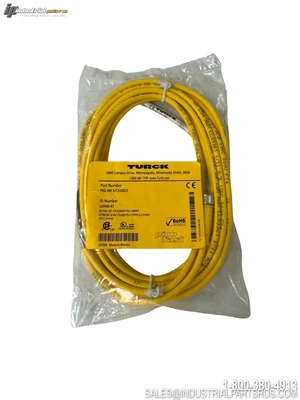

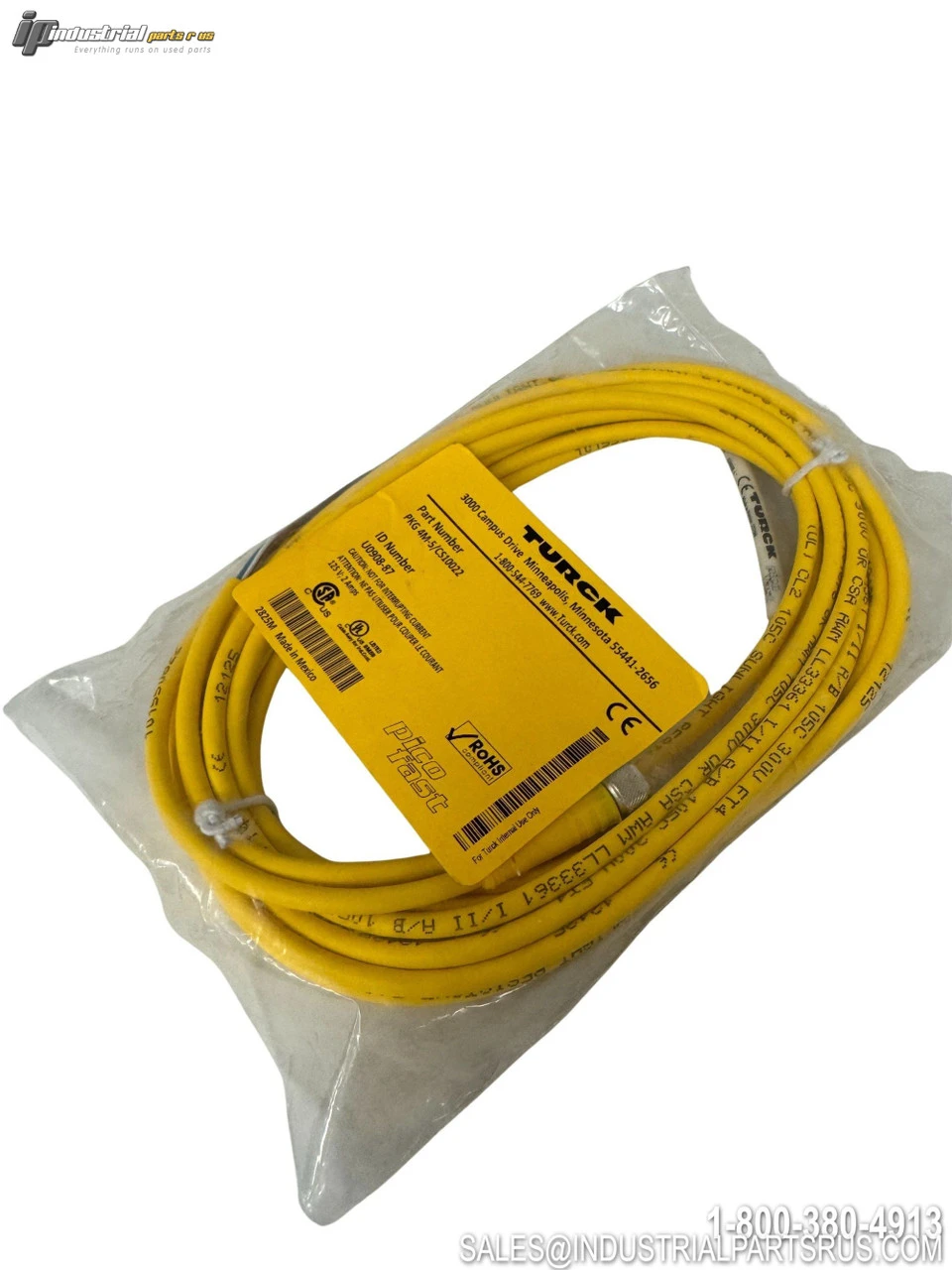

NEW TURCK PKG 4M-5/CS10022

The Turck PKG 4M-5/CS10022 is a single-ended actuator and sensor cordset (picofast series) featuring a 4-pin M8 female straight connector with a nickel-plated brass threaded coupling nut, terminating in bare-end flying leads. This CL2-rated cable is designed for connecting sensors and actuators in industrial automation environments, offering IP67 ingress protection and Flexlife-rated flexible PVC cable construction. It carries 4×26 AWG tinned copper conductors in a yellow PVC jacket suitable for general-purpose factory wiring applications.
Specification
Value
Brand
Turck
Model / Part Number
PKG 4M-5/CS10022
Series
PKG (Picofast)
Product Type
Actuator and Sensor Cordset (Single-Ended)
Design / Rating
CL2 Rated
Cable Length
5 m (16.4 ft)
Connector Type A
M8 Picofast Female, Straight, 4-Pin, Threaded (M8×1)
Connector Type B
Bare End Flying Leads (Open/Cut End)
Number of Conductors
4-Wire (4 × 26 AWG)
Conductor Size
4 × 26 AWG (≈ 0.14 mm²)
Number of Strands × O.D.
19 × 38 AWG
Conductor Material
TC (Tinned Copper)
Conductor Colors
BN (Brown), WH (White), BU (Blue), BK (Black)
Cable Jacket Material
PVC
Cable Jacket Color
Yellow
Cable O.D. (Sheath Diameter)
Ø 4.4 mm
Cable ID
RF50697-M
Rated Voltage
125 VAC/DC
Rated Current
2 A
Coupling Nut Material
Brass (CuZn), Nickel-Plated
Connector Seal
O-Ring, FKM/FPM
Tightening Torque
0.4 – 0.8 Nm
IP Rating (When Coupled)
IP67
NEMA Rating
NEMA 1, 3, 4, 6P
Cold Bend Rating
-40°C
Max. Operating Temperature
+105°C
Bending Radius (Static)
≥ 5 × Ø
Bending Radius (Dynamic)
≥ 10 × Ø
Mechanical Life
> 100 Mating Cycles
Pollution Degree
3
Flame Ratings
UL1061, CSA FT1
Cable Technology
Flexlife® and C-Track Approved
Manufacturer
Turck Inc.
We warranty all items for 30 days from date of purchase.
