NEW 2020 BRANSON 2000XEA 20

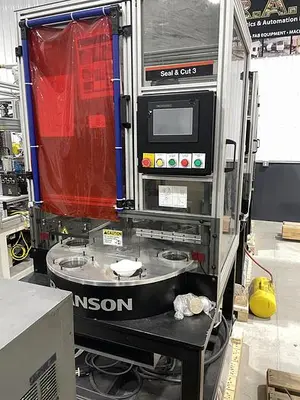

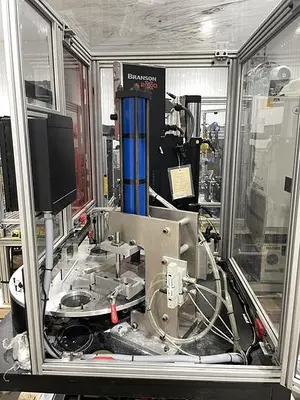

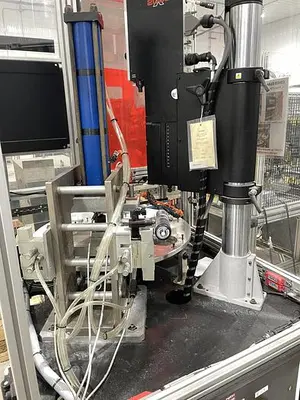

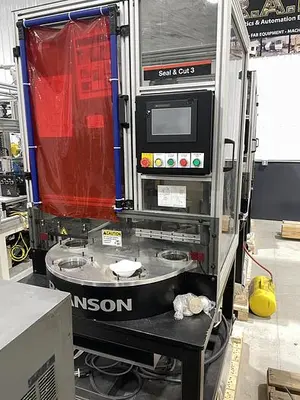

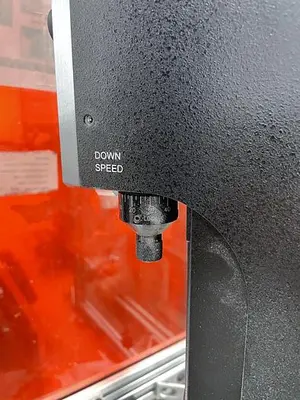

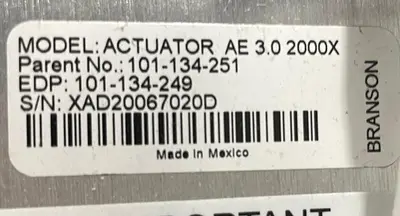

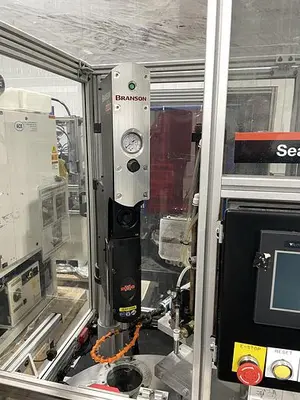

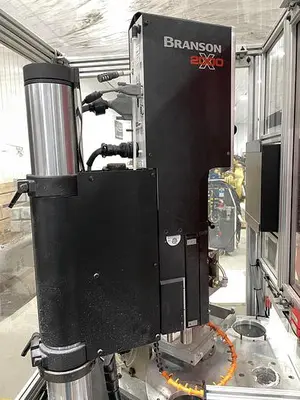

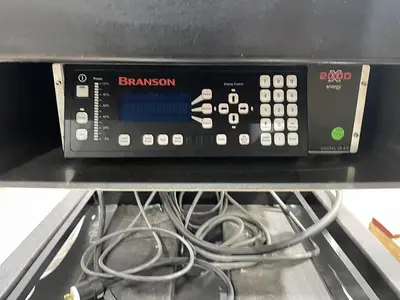

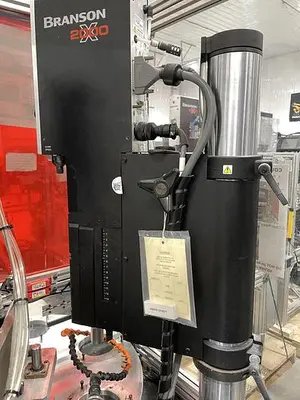

THE 2020 BRANSON S40 ROTARY 2000X ULTRASONIC WELDER SYSTEM IS A HIGH-PERFORMANCE INDUSTRIAL WELDING CELL DESIGNED FOR AUTOMATED ASSEMBLY. THE SYSTEM IS BUILT AROUND A BRANSON 2000X ACTUATOR AND A 20:4.0 POWER SUPPLY, DELIVERING 4000 WATTS OF POWER AT A 20KHZ FREQUENCY. IT REQUIRES A VOLTAGE OF 200-240VAC, 25A, 1PH, 50/60HZ. THE 2000X AE 3.0 ACTUATOR FEATURES A 4-INCH STROKE LENGTH AND IS EQUIPPED WITH A CJ20 CONVERTER AND A TITANIUM 20KHZ 3:1 BOOSTER.

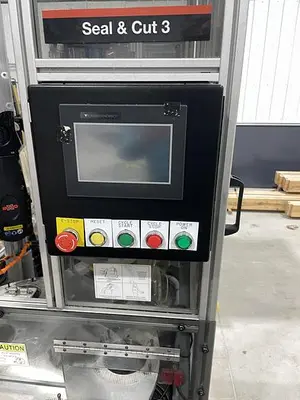

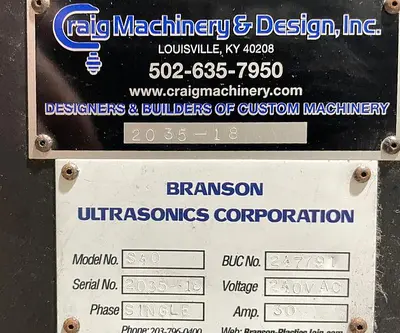

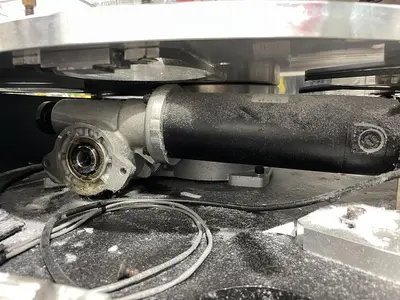

MATERIAL HANDLING IS MANAGED BY A SERIES 40 ROTARY SYSTEM, WHICH INCLUDES A CAMCO 601RDM INDEXER AND A 30-INCH ROUND ALUMINUM DIAL PLATE WITH SIX STOPS FOR PRECISE MOVEMENT. THE CELL'S OPERATIONS ARE CONTROLLED VIA AN AUTOMATION DIRECT TOUCHSCREEN HMI AND PLC FOR COMPREHENSIVE I/O HANDLING. SAFETY FEATURES INCLUDE PERIMETER GUARDING AND ABB SAFETY SWITCHES. THE UNIT IS DESIGNED WITH A JIC PANEL AND CAN ACCOMMODATE SECONDARY PROCESSES SUCH AS PICK AND PLACE, PAD PRINTING, OR LEAK TESTING. THE COMPLETE CELL WAS MANUFACTURED BY CRAIG MACHINERY & DESIGN, INC.
