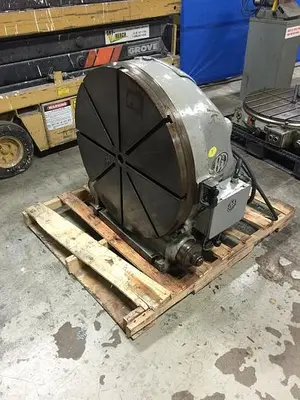

USED PRATT & WHITNEY M-1835 30" VERTICAL ROTARY TABLE

THE PRATT & WHITNEY MODEL M-1835 IS A 30-INCH VERTICAL ROTARY TABLE DESIGNED FOR PRECISION MACHINING OPERATIONS. IT FEATURES A 30-INCH DIAMETER WORKING SURFACE WITH EIGHT T-SLOTS SIZED FOR 5/8-INCH BOLTS. THE TABLE IS CAPABLE OF SUPPORTING A MAXIMUM RECOMMENDED WORKPIECE WEIGHT OF 1,200 LBS. THE UNIT MEASURES 19 1/8 INCHES FROM THE BASE TO THE CENTER HOLE, WHICH IS EQUIPPED WITH A NO. 40MM TAPER. FOR PRECISE POSITIONING, THE TABLE INCLUDES GRADUATIONS IN DEGREES, A DIAL READING TO 1 MINUTE, AND A VERNIER SCALE READING TO 2 SECONDS. THE SYSTEM IS POWERED BY A 1/2 HP, 3-PHASE REVERSIBLE MOTOR. THE APPROXIMATE NET WEIGHT OF THE ASSEMBLY IS 1,745 LBS. NO YEAR OF MANUFACTURE WAS PROVIDED IN THE SOURCE DOCUMENTATION.
