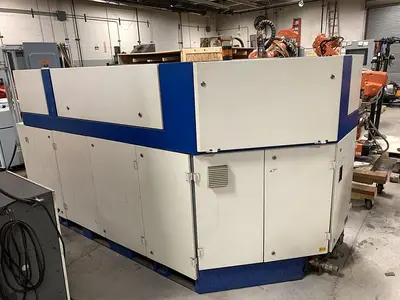

USED 2008 TRUMPF 8002

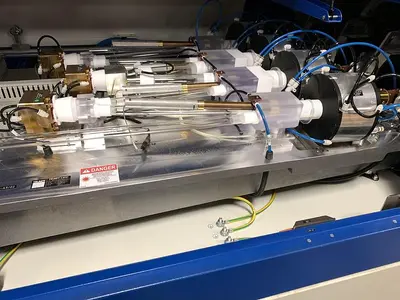

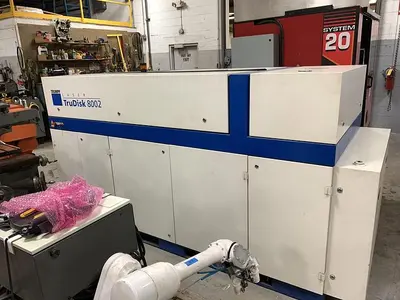

THE 2008 TRUMPF TRUDISK 8002 IS A HIGH-POWER SOLID-STATE DISK LASER DESIGNED FOR WELDING, CUTTING, AND SURFACE PROCESSING OF METALS. IT PROVIDES A LASER POWER OF 8,000 WATTS ON THE WORKPIECE WITH A CONTINUOUSLY ADJUSTABLE POWER RANGE STARTING FROM 160 W. THE SYSTEM FEATURES ACTIVE LASER POWER CONTROL TO ENSURE A TYPICAL POWER CONSTANCY OF ± 1% AT RATED POWER AND ± 0.5% OVER 8 HOURS AT CONSTANT AMBIENT TEMPERATURE. OPERATING AT A WAVELENGTH OF 1030 NM, THE LASER UTILIZES A DISK MEDIUM AND A PATENTED RESONATOR DESIGN TO ACHIEVE A BEAM QUALITY OF 2 MM·MRAD AT THE DISK AND 8 MM·MRAD AT THE INPUT COUPLING IN THE LASER LIGHT CABLE (LLK). THE NUMERICAL APERTURE ON THE OUTPUT COUPLING AFTER THE LLK IS 0.1, WITH A MINIMUM LASER LIGHT CABLE DIAMETER OF 200 ΜM. THIS MODEL INCLUDES INTELLIGENT ENERGY MANAGEMENT WITH MULTIPLE ENERGY-SAVING MODES AND POWER FACTOR CORRECTION. THE UNIT IS DESIGNED WITH AN IP54 PROTECTION CLASS AND CAN ACCOMMODATE UP TO 4 LASER LIGHT CABLES WITH EXTENDED DEVICE SIZES. PHYSICAL DIMENSIONS ARE 1175 MM IN WIDTH, 1430 MM IN HEIGHT, AND 725 MM IN DEPTH. ELECTRICAL REQUIREMENTS ARE 39 KW/40KVA/56AMP, AND THE SYSTEM IS DESIGNED TO OPERATE IN AMBIENT TEMPERATURES RANGING FROM 10 °C TO 50 °C. COOLING IS MANAGED VIA AN INTEGRATED HEAT EXCHANGER OR AN OPTIONAL COMPRESSOR COOLER.
