USED FUJI TNW-3500 TR

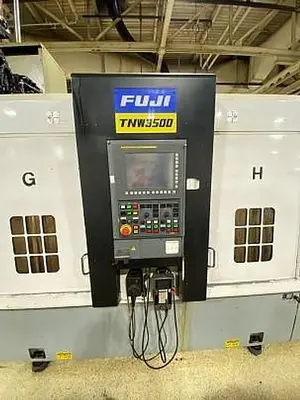

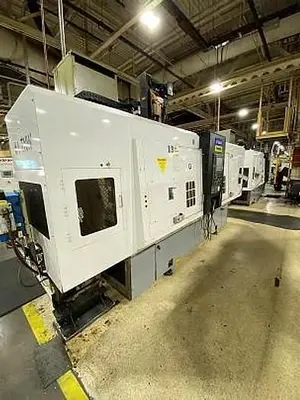

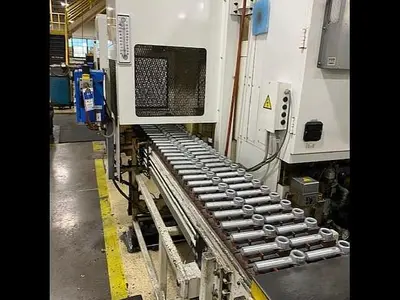

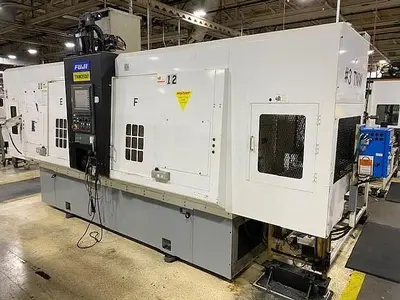

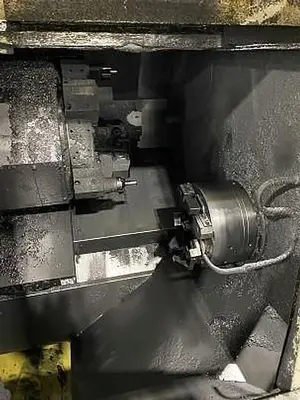

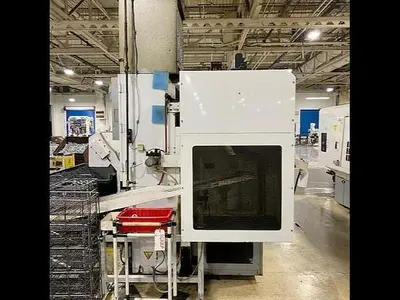

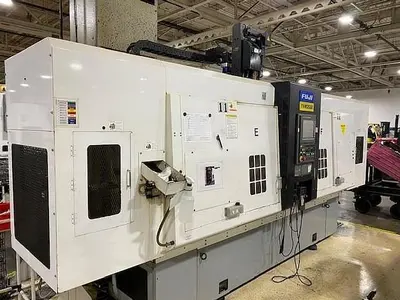

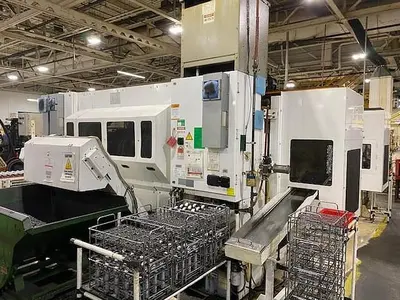

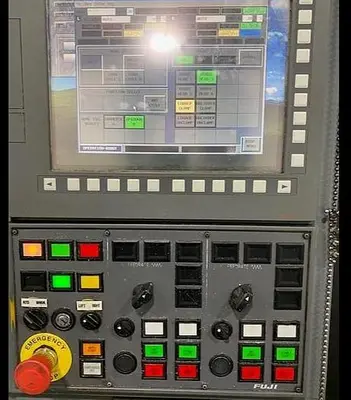

The 2008 Fuji TNW 3500 TR is a twin spindle, twin turret CNC lathe equipped with a gantry loader and a FANUC 310I model A control. This machine features live milling capabilities on both 10-station turrets. Technical specifications include a 3.9-inch spindle diameter, an A2-6 spindle nose, and a 2.2-inch spindle bore. The spindles operate at a maximum speed of 4200 RPM and are powered by 15/20 HP motors. Standard slide strokes are 10.83 inches for the X-axis and 11.02 inches for the Z-axis, with both axes driven by 4.0 HP feed motors. The lathe accommodates 8-inch standard chucks. The unit has a machine weight of 22,000 lbs, a footprint of 11 feet 6 inches by 6 feet 2 inches, and a height of 9 feet.
