USED 1970 VERSON S2-500-108-60

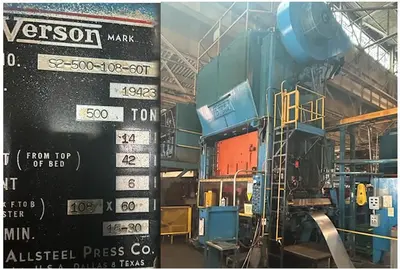

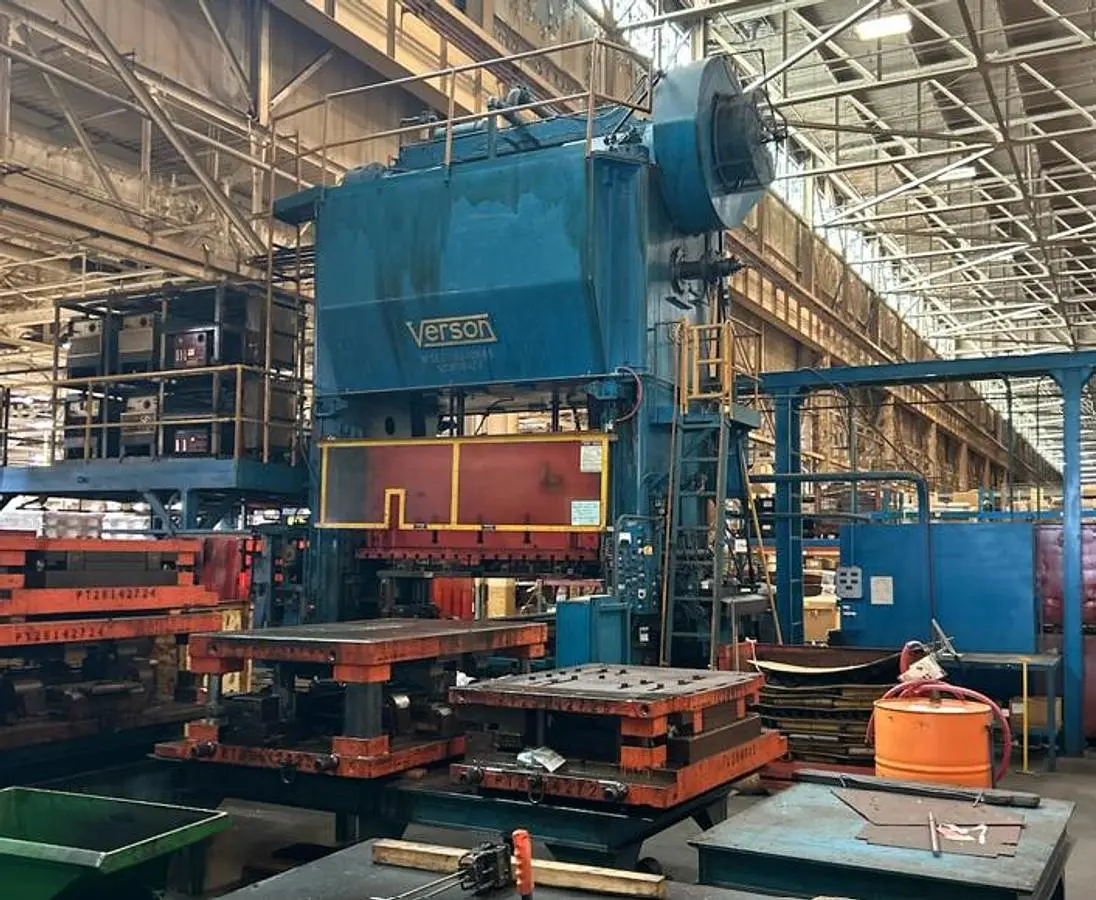

The 1970 Verson S2-500-108-60 is a straight side double crank (SSDC) press featuring tie rod construction and a floor-standing design. This unit provides a 500-ton capacity with a bed and ram area both measuring 108 inches by 60 inches. The press operates with a 14-inch stroke and a shut height of 42 inches on the bed (SDAU), supported by a 6-inch ram adjustment. It offers variable speeds ranging from 15 to 30 strokes per minute (SPM). Technical features include windows in the side columns, an air clutch, an air brake, and a power take-off on the crank for feeder integration.
