USED FUJI ANS3400

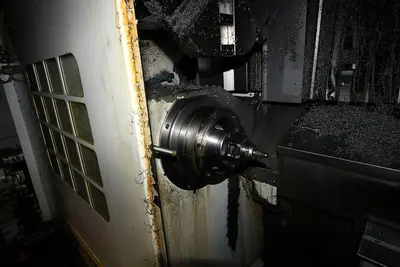

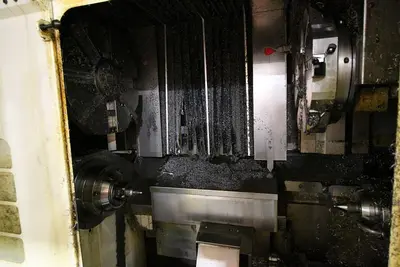

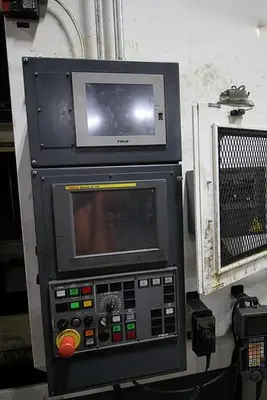

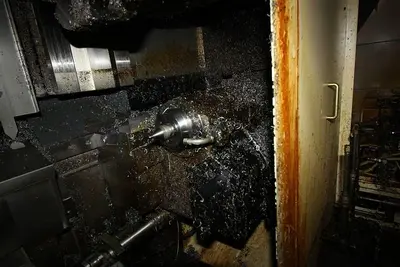

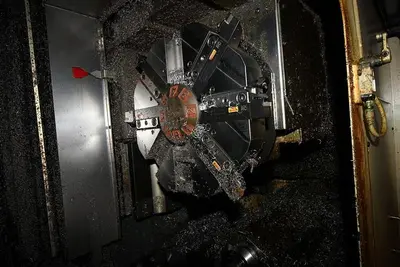

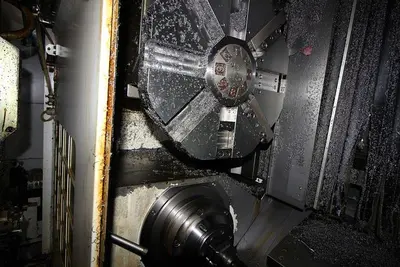

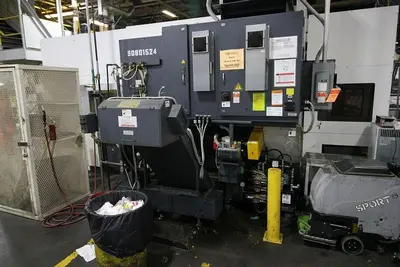

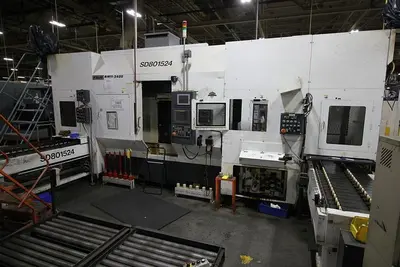

The 2014 Fuji ANS3400 is a single spindle CNC lathe equipped with twin turrets and a tailstock, designed for high-volume automated production. Controlled by a FANUC series 0I-TD system, the machine features an 11-inch work size capacity, a 4.7-inch spindle diameter, and a 2.6-inch spindle bore. The spindle is powered by a 20/25 HP motor, supporting a tooling configuration of 12 + 12 positions with a rapid turret index time of 0.041 seconds. Motion specifications include 7.7 inches of X-axis slide travel and 12 inches of Z-axis travel. For automated material handling, the system integrates a gantry loader paired with twin parts stackers. The machine's construction often utilizes a honeycomb column design or vertical bed to enhance rigidity and chip disposal efficiency. Additional technical features include 4-axis simultaneous control for optimized workpiece output and a programmable tailstock to accommodate varying part lengths.
