USED 1990 ROTOFLO 48"

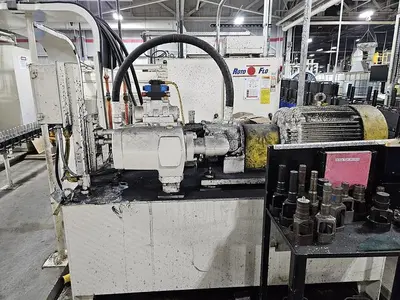

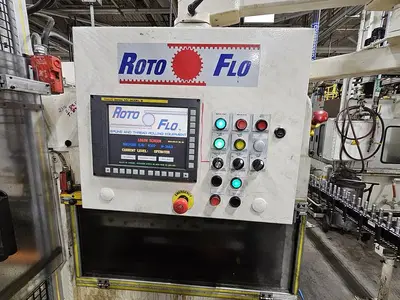

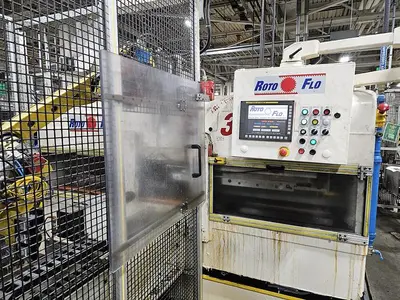

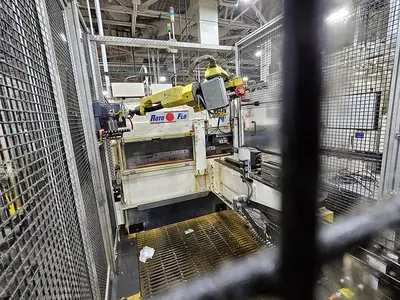

The 1990 Rotoflo (Anderson Cook) 36" spline roller is a hydraulic 200 series machine, specifically model 250, designed for high-precision spline rolling applications. This unit features a maximum rack length of 36", a fixture width of 3.63", and a standard daylight opening of 6". It offers a maximum slide stroke of 45" and can accommodate work parts with a maximum outer diameter of 2.5". The machine is powered by a 25 HP standard main motor and is equipped with advanced automation components, including a FANUC 35I model B HMI control system, a servo headstock, and a servo tailstock. Additionally, the system integrates a FANUC M-10IA robot loader for robotic loading capabilities and includes an under-arm support. The equipment weighs approximately 25,800 lbs with physical dimensions of 73" in height, 170" in length, and a depth of 174" with the under-arm support (reducing to 112" if the arm is removed).
