| X-Axis | 24" | 609.6 mm |
| Y-Axis | 17" | 431.8 mm |
| Z-Axis | 15" | 381 mm |
| Table Dia. | 19.7" | 500.38 mm |
| # Axis | 5 | 5 |
| Spindle Motor | 30 hp | 22.4 kW |
| Spindle Speed | 18,000 RPM | 18,000 RPM |
| ATC Capacity | 120 | 120 |
| Taper | 40 | 40 |
| Table Load Capacity | 882 lb | |
| Dimensions | 87″ x 114″ x 114″ | 87″ x 114″ x 114″ |
| Weight | 16,534 Lbs | 16,534 Lbs |
Fanuc 3i-M B5 Control
Probing

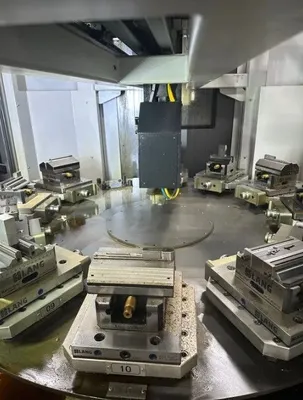

5-Axis Trunnion Table
Through Spindle Coolant
LNS Super Fine Compact Chip Conveyor
Renishaw RMP600 Spindle Probe
Renishaw RTS TTP Tool Setter

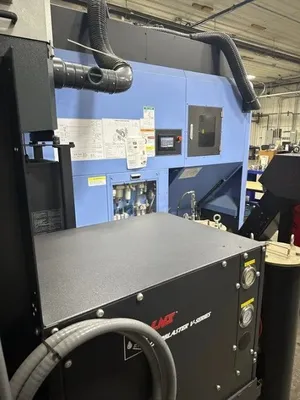

ChipBLASTER Modular* 1,000 PSI, 2-10 GPM Variable Flow Coolant System
LNS FOX Mist Collector WS2-700 High Efficiency Multi-Application 3 Filtration Stage Unit
