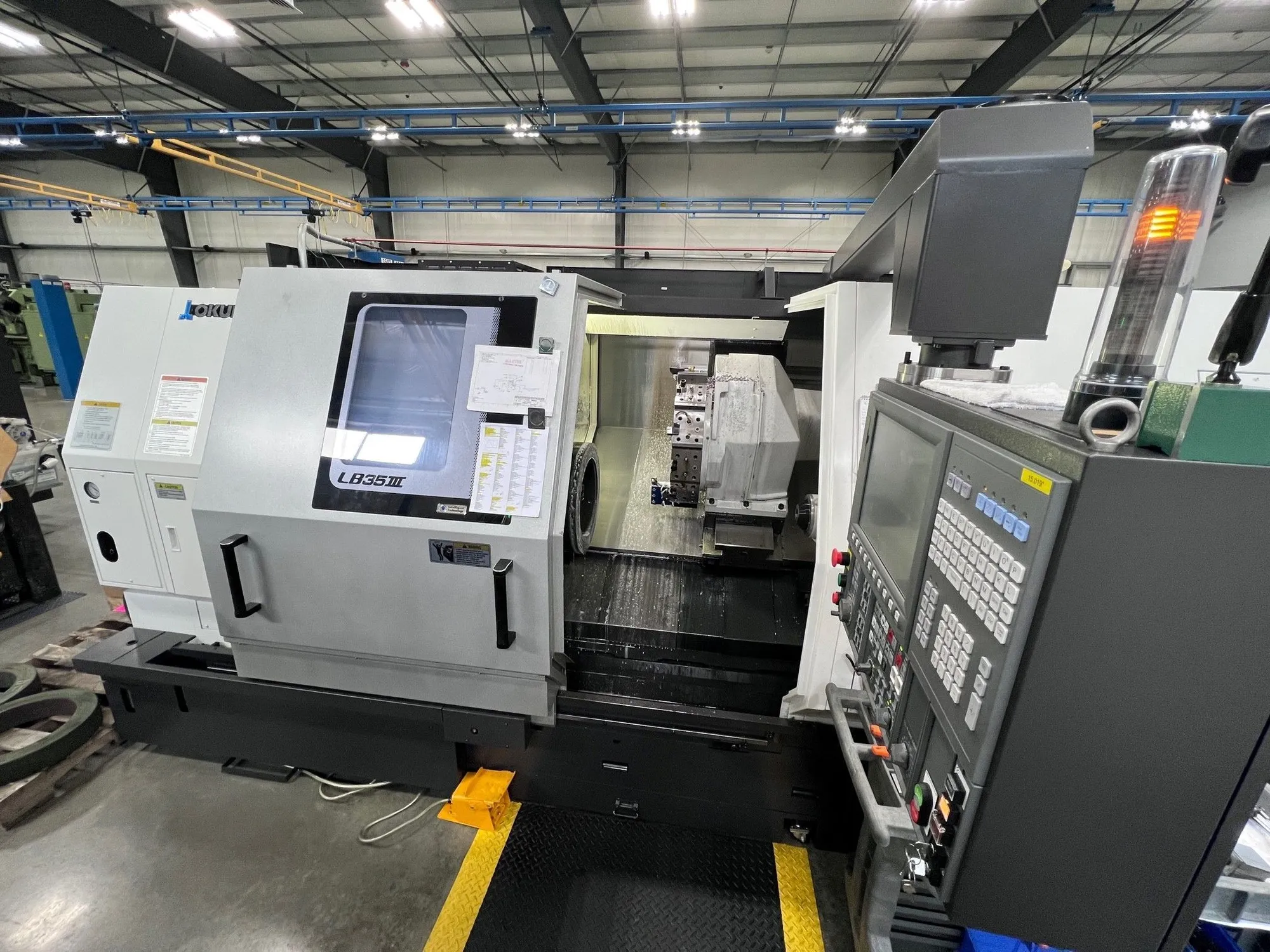

USED 2021 OKUMA LB35III
Overview
Okuma LB35 III x 850 Big Bore CNC Turning Center (2021), Okuma LB35 III x 850 Big Bore CNC Turning Center (2021), 27.56" Swing, 36.22" Centers, 2,000 Rpm, 4.33" Sp. Hole, 12 Position Turret, Tailstock, 40 Hp, Conv., Okuma P300LA Cnc (2021)
Specs
Okuma LB35 III x 850 Big Bore CNC Turning Center (2021)
Swing Over Bed: 27.56"
Swing Over Carriage: 16.93"
Distance Between Centers: 36.22"
Max. Turning Diameter: 18.11"
Max. Turning Length: 33.46"
X-Axis Travel: 12.9"
Z-Axis Travel: 36.22"
Spindle Nose: JIS A2-11
Spindle Speeds: 14 to 3,200 Rpm
Thru-Spindle Hole Dia.: 4.33"
Turret, Positions: 12
Rapid Traverse Rate: X-.59 Ipm, Z-.79 Ipm
Spindle Motor: 40 Hp
Electrics: 220/480
Full Load Current: 99/45.4 A
Largest Motor Rating: 119 A
SCCR of Control Panel 10 kA
Machine Weight, Approx. 20, 020 Lbs.
Floor Space: 201” with chip conveyor X 86”
Equipped With
Okuma P300LA Cnc Control
Kitagaw 15"Chuck
Chip Conveyor
Royal Filtermist FX900
Electric Foot Pedal
Tailstock
A2-11 Big Bore
