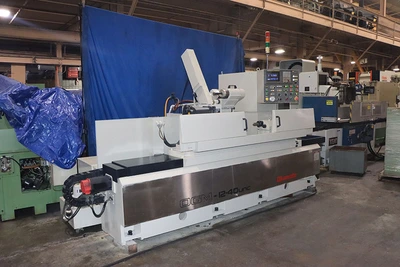

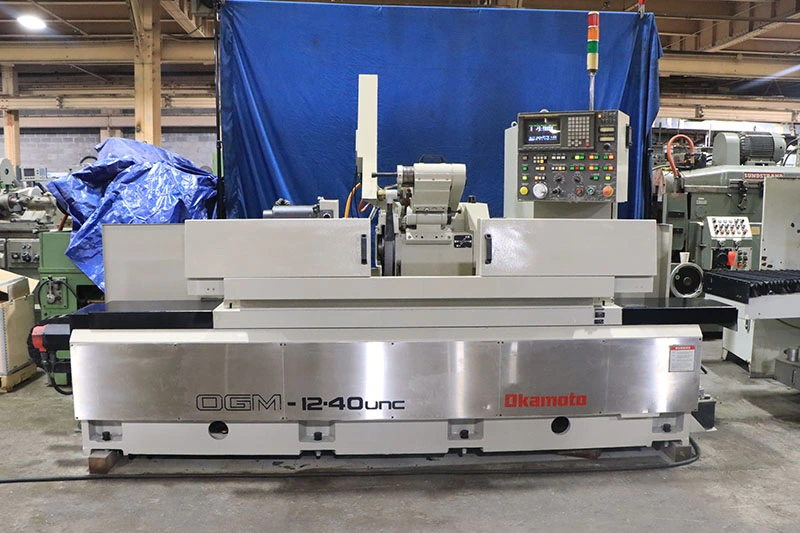

USED 1995 Okamoto OGM 1240UNC, 1995, FANUC 18-OC CNC, I.D. ATTCH.,

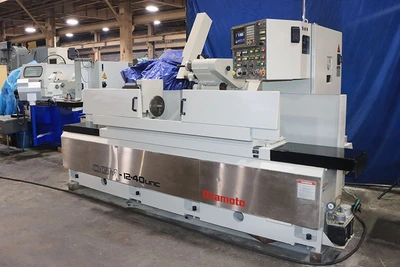

  12" X 40" OKAMOTO CNC UNIVERSAL I.D./O.D.

         CYLINDRICAL GRINDER

WITH SWING DOWN I.D. GRINDING ATTACHMENT

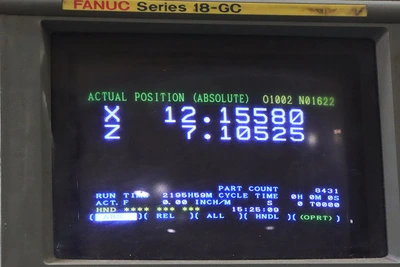

FANUC 18-GC CNC Control

Two Axis Simultaneous Controlled

Model: OGM-1240UNC   S/N: 8014   NEW:  1995

Swing Over Table ................... 12.6"

Distance Between Centers:........... 40"

Max. Table Travel .................. 50"

Power Table Traverse Speed ......... 0 to 400" IPM

Manual Pulse Generator ............. 0.00001", 0.0001", 0.001"

Table Feed Motor:................... 1.2 HP AC Servo

Table Swivel Angle:................. 0 to 8.5°

Wheelhead, Total Stroke (X-axis) ... 11.8"

Wheelhead Swivels .................. +/- 30°

Wheelhead Automatic Infeed ......... 0.00001" to 0.004"

Wheelhead Power rapid Stroke ....... 1.5"

Rapid Feedrate ..................... 400" IPM

Manual Pulse Generator ............. 0.00001", 0.0001", 0.001"

Wheelhead Feed Motor:............... 1.2 HP AC Servo

Grinding Wheel Size:................ 14 x 1.5 x 5

Grinding Wheel Speed:............... 1770/2,000 RPM

Grinding Wheel Spindle Motor:....... 7.5 HP

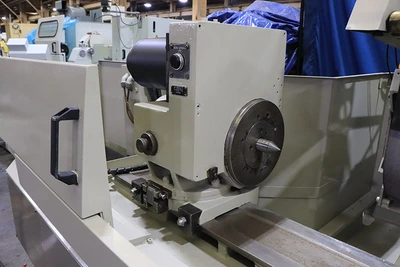

Work Head Center Taper:............. MT #4

Work Head Spindle Bore:............. 0.7"

Work Head Spindle Motor:............ 1 HP AC Servo

Work Head Spindle Speed:............ 10 - 500 RPM

Work Head Swivel Angle:............. +30°/- 90°

Tailstock Taper:.................... MT #4

Machine Weight:..................... 9,250 lbs.

Machine Features:

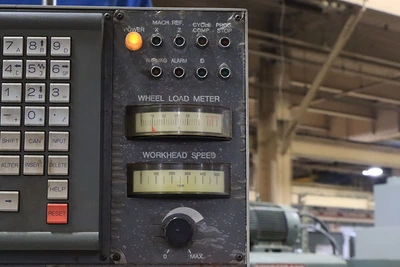

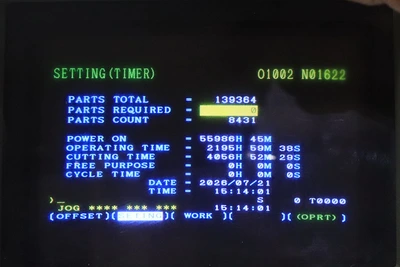

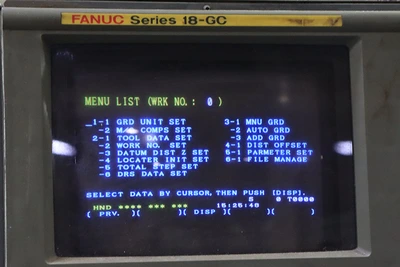

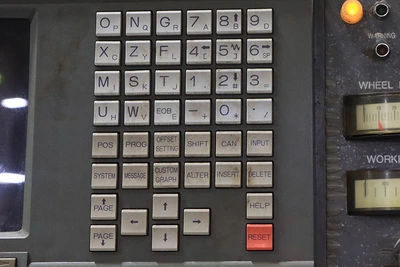

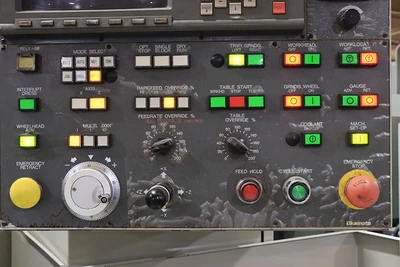

Fanuc 18-GC CNC Control

Two Axis Simultaneous CNC Control

CNC Programming, for Contouring, Multiple Diameters,

  & Dressing

Minimum Programmable Increment 0.00001"

Conversational or G and M Code Programming Std

Quick, Easy Set-up, Designed for Optimum Operator

  Convenience

RS232C Port

Fanuc Red Cap Servo Motors for the Axis Movements

Low Friction Material is Applied to the Sliding Surfaces

 of Slide Table & Wheel head.

Equipped with:

Coolant System

Machine is Wired for 3/60/220 Volts

Comes with a Separate Transformer

Swing Down I.D. Attachment & I.D. Spindle

Lateral Locator Device

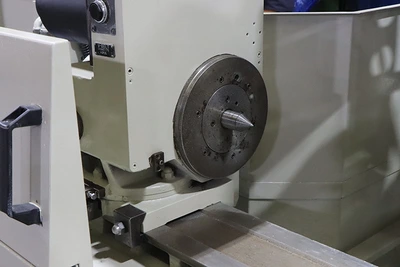

Workhead Has a Center in it

Extra Wheel Hub & Wheel

Magnetic Chuck, with Draw Bar & Adaptor

Link to video: https://youtu.be/MsKuyQTdyJg?si=WalZk3JlKRxnpXnS

** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
