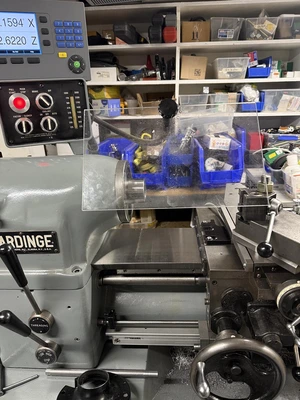

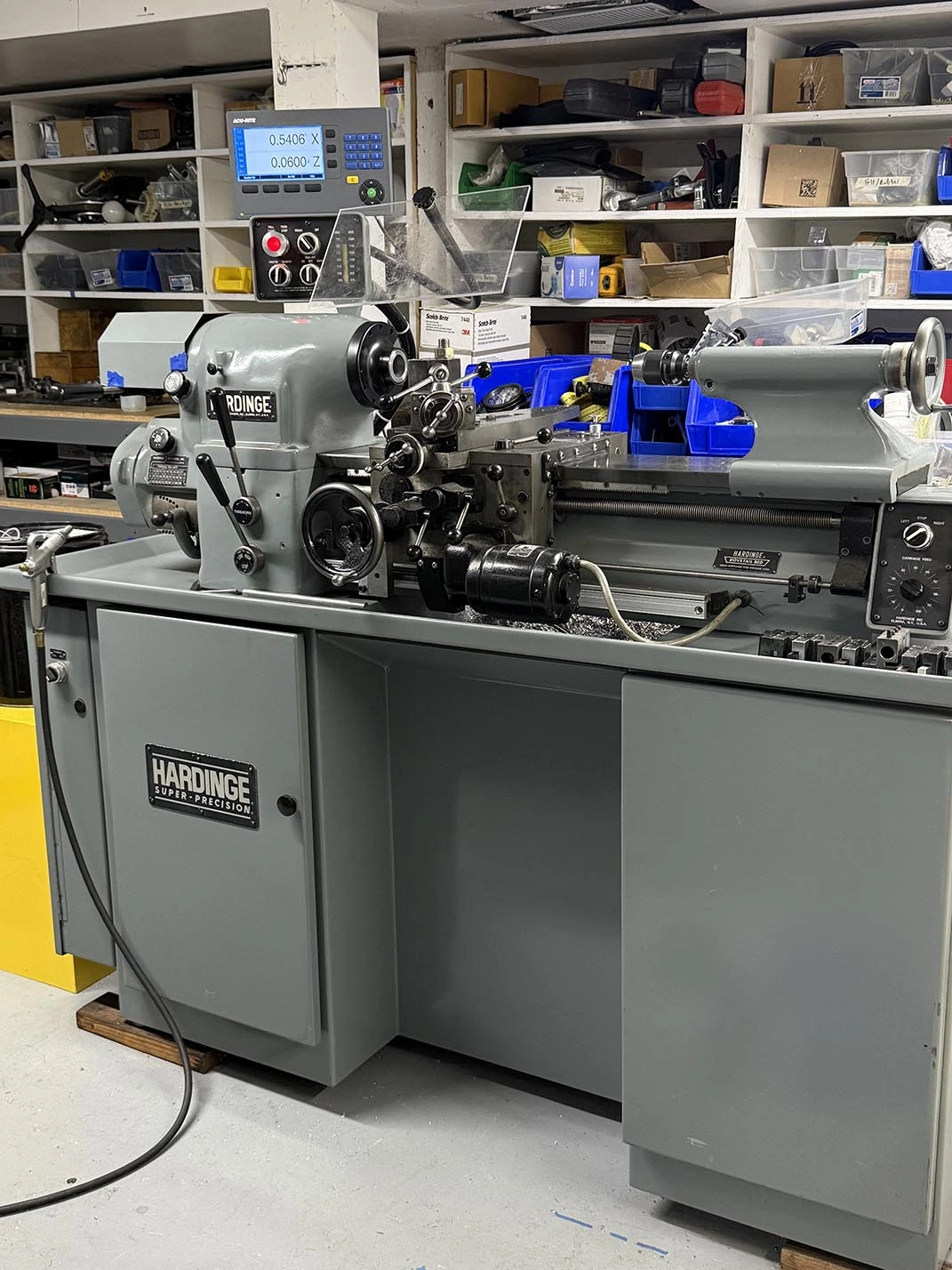

USED 2023 Hardinge HLV-H, Vari-Speed, 5C-Collet, Acu-Rite DRO, 3-Jaw,

HARDINGE SUPER-PRECISON TOOLROOM LATHE

MODEL: HLV-H, S/N: HLV-H-11481-T, NEW: 1985

MACHINE RECONDITIONED IN 2023

SPECIFICATIONS:

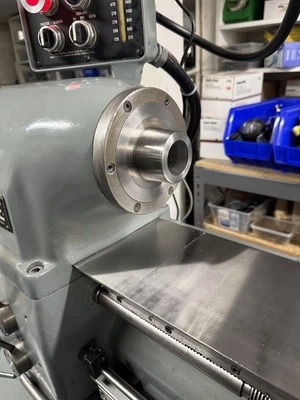

SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION

                                   PRELOADED BALL BEARING

SPINDLE NOSE THREAD .............. 2-3/16" - 10 RH

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM

HOLE THROUGH SPINDLE ............. 1-1/4"

SPINDLE CAPACITY:

    w/ROUND 5C COLLETS ........... 1-1/6

    w/HEXAGON 5C COLLETS ......... 7/8"

    w/SQUARE 5C COLLETS .......... 3/4"

    w/STEP CHUCKS ................ 1-1/16" TO 6"

    w/JAW CHUCKS ................. 5"

    w/EXPANDING COLLETS .......... 3"

SWING OVER BED ................... 11"

SWING OVER CARRIAGE .............. 9"

SWING OVER CROSS SLIDE ........... 6"

DISTANCE BETWEEN CENTERS ......... 18"

COMPOUND SLIDE TRAVEL ............ 3"

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM

CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"

TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"

TAILSTOCK SPINDLE TAPER .......... #2 MT

THREADING RANGE .................. 11" TO 108" TPI

APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"

APPROX. WEIGHT ................... 1,700 LBS.

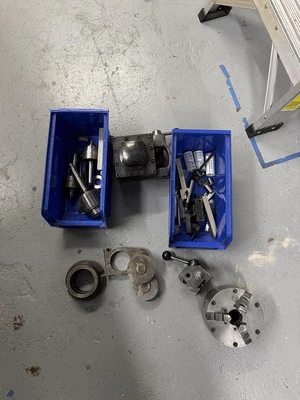

EQUIPPED WITH:

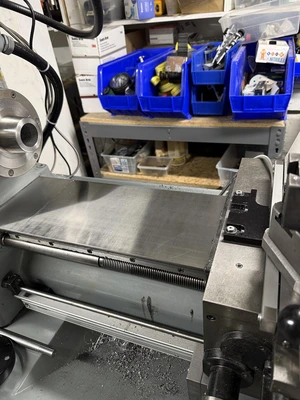

- REGROUND BED PLATE & NEW TURCITE UNDER CARRIAGE

- HARDINGE CROSS SLIDE REGROUND

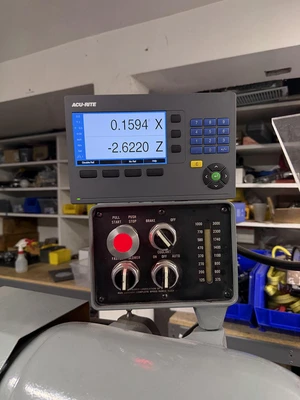

- ACU-RITE TWO AXIS DIGITAL READOUT

- HARDINGE LEVER TYPE 5C-COLLET CLOSER

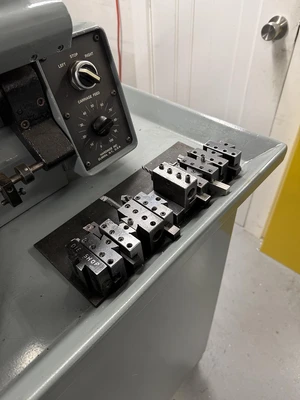

- HARDINGE QUICK CHANGE TOOLPOST WITH HOLDERS

- HARDINGE 3-JAW CHUCK

- LIVE CENTER FOR TAILSTOCK

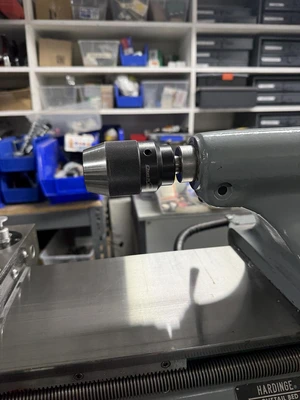

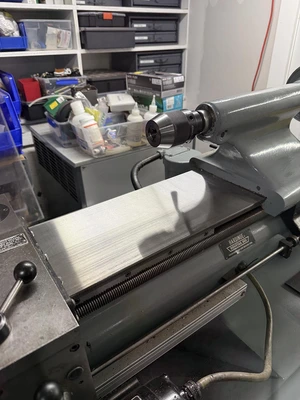

- JACOBS DRILL CHUCK FOR TAILSTOCK

- COOLANT SYSTEM

- MISCELLENEOUS 5C COLLETS

- 1.5 HORSE POWER TWO SPEED MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:    ****  SUPERB  ****

FOR MORE INFORMATION: Call David at 973-497-7570
