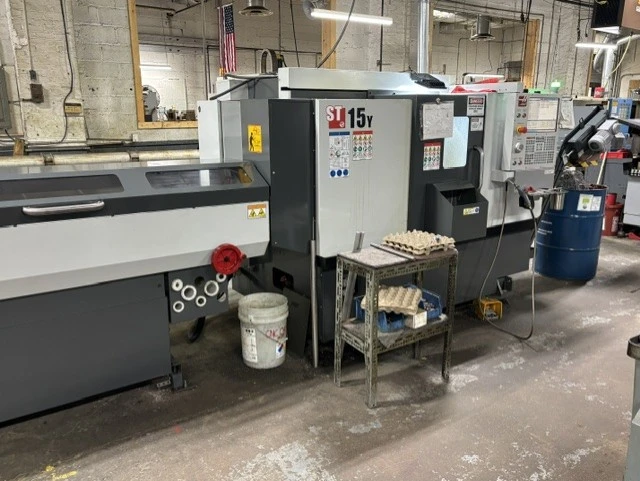

USED 2023 Haas ST-15Y - LOW HOURS

HAAS ST-15Y CNC TURNING CENTER

NEW: 2023

VIDEO LINK: https://youtu.be/GZw5TvP0q4k?si=-BeU8e_QGP3jp7EY

Capacities

Chuck Size: 8.3 in

Max Part Swing: 16.5 in

Max Cutting Diameter (with BMT45 turret): 11.00 in

Max Cutting Length (varies with workholding): 16.0 in

Bar Capacity 2.50 in 64 mm

Travels

X Axis 7.88 in

Y Axis ± 2.0 in

Z Axis 16.00 in

Feedrates

Rapids on X 472 ipm 12.0 m/min

Rapids on Y 472 ipm 12.0 m/min

Rapids on Z 1200 ipm 30.5 m/min

Axis Motors S.A.E METRIC

Max Thrust X 2400 lbf

Max Thrust Y 2300 lbf

Max Thrust Z 3700 lbf

Spindle S.A.E METRIC

Spindle Nose A2-6

Max Rating 20.0 hp 14.9 kW

Max Speed 4000 rpm

Max Torque 150.0 ft-lbf @ 500 rpm

Spindle Bore ø 3.50 in

Main Spindle C Axis

Max Rating 5.0 hp 3.7 kW

Max Speed 60 rpm

Positioning (±) 0.01 °

Brake Diameter 13.9 in

Brake Holding Torque 250 ft-lbf

Control Type Interpolated Motion and Positioning Interpolated Motion and Positioning

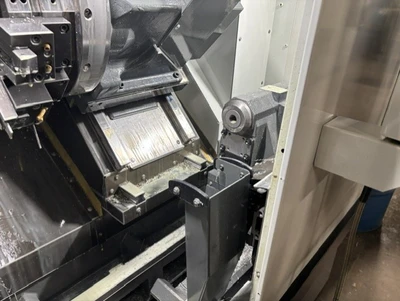

Tailstock

Taper MT3

Hydraulic Quill Travel 3.8 in

Manual Body Positioning 20.0 in

Max Thrust (Hyd. Quill Only) 1130 lbf

Min Thrust (Hyd. Quill Only) 140 lbf

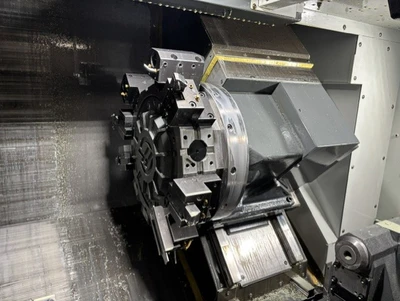

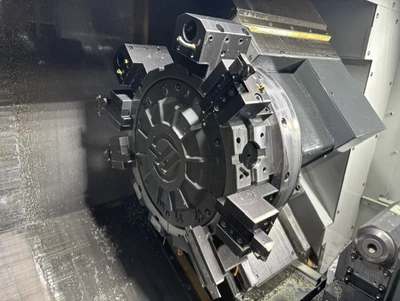

Turret

Number of Tools 12 Stations

Boring Bar Rear Clearance (from back of turret )3.80 in

Live Tooling

Max Speed 4000 rpm

Tooling BMT45

Spindle Power 20.0 hp 14.9 kW

EQUIPPED WITH:

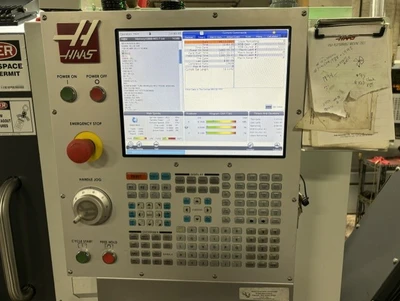

 - HAAS CNC CONTROL

 - TOOLSETTER

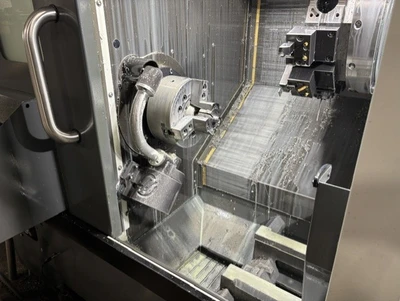

 - 8" 3-JAW HYD. CHUCK

 - PARTS CATCHER

 - 12 POSITION BMT 45 TURRET

 - TAILSTOCK

 - CHIP CONVEYOR

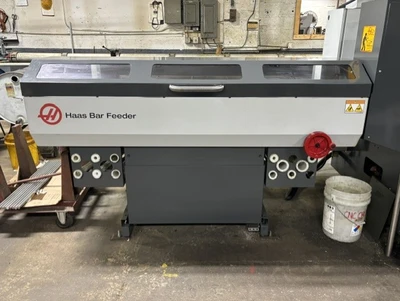

 - HAAS BARFEEDER

 - (4) LIVE TOOLHOLDERS

 - ALL AVAILABLE STATIC TOOLHOLDERS

FOR MORE INFORMATION: Call Mike at 973-497-7540
