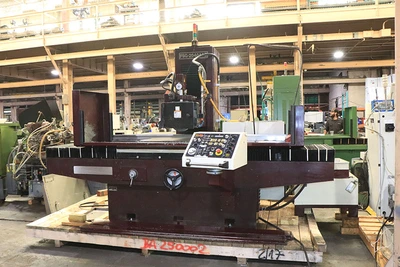

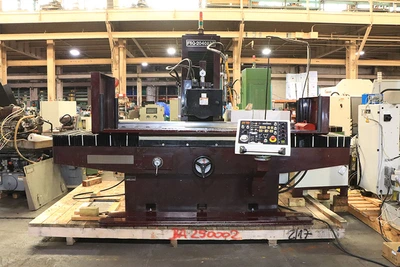

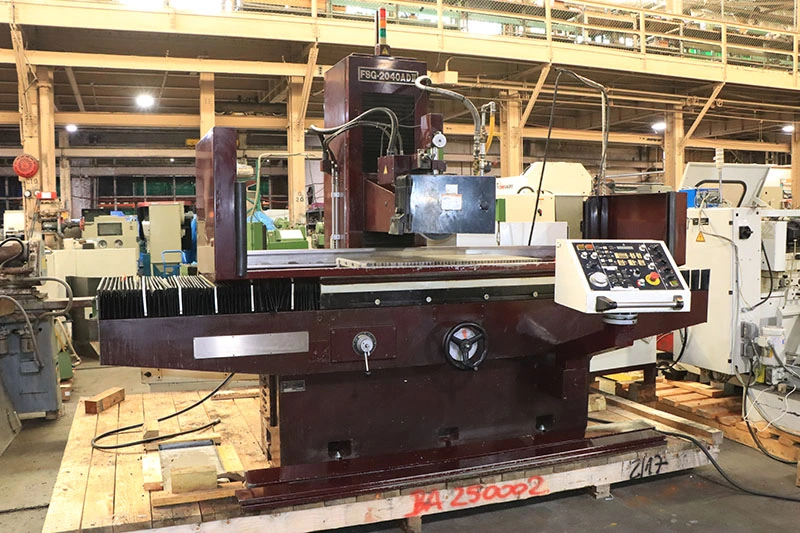

USED Chevalier FSG-2040ADII

       20" x 40" CHEVALIER "COLUMN TYPE"

      3-AXIS AUTOMATIC SURFACE GRINDER

WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED

MODEL: FSG-20-40ADII

S/N: RB89B001

NEW: 2001

TABLE SIZE:...................... 19.7" X 39.4"

MAXIMUM TABLE LOAD .............. 2,579 LBS

MAX. DISTANCE FROM TABLE TO

 SPINDLE CENTERLINE ............. 28- 5/8"

POWER LONGITUDINAL TABLE SPEED .. 16' - 82' F.P.M.

MAX TABLE TRAVEL ................ 43 1/4"

MAX. CROSS TRAVEL OF COLUMN ..... 22"

AUTO CROSSFEED INCREMENTS ....... 1/8" - 1- 1/4"

POWER RAPID TRAVERSE RATE ....... 4.9' FPM

CROSSFEED, HANDWHEEL, PER REV. .. 0.2"

CROSSFEED, HANDWHEEL GRAD. ...... 0.001"

POWER RAPID TRAVERSE, VERTICAL .. 15.7" IPM

MPG LEAST INCREMENT ............. 0.0001"

GRINDING WHEEL SPINDLE SPEED .... 1,740 R.P.M.

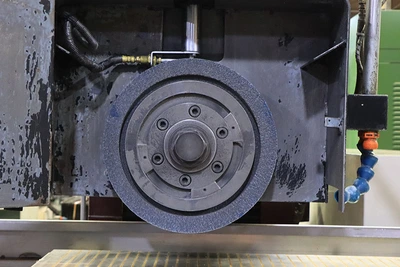

WHEEL SIZE:...................... 14" x 2"W x 5" BORE

APPROX. FLOOR SPACE REQUIRED .... 152" x 118" x 110" H

APPROXIMATE WEIGHT .............. 13,600 LBS

MACHINE FEATURES:

-TRAVELLING COLUMN TYPE CONFIGURATION, WITH TABLE

  SUPPORTED IN FULL TRAVEL TO AVOID OVERHANG.

-MICROPROCESSOR CONTROLLED

-SURFACE, CRISSCROSS, PLUNGE & SIDE GRINDING MODES

-MITSUBISHI SERVO DRIVE & MOTOR ON VERTICAL AXIS & CROSS

  AXIS, WITH BALLSCREWS.

-LEAST INPUT INCREMENT IS 0.0001"

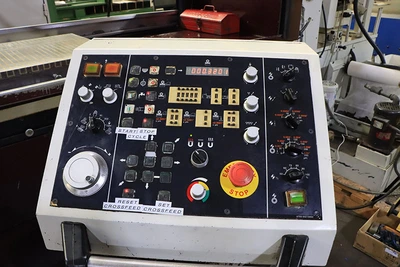

-CONTROL PANEL WITH DIGITAL DISPLAY

-MPG FOR VERTICAL AXIS

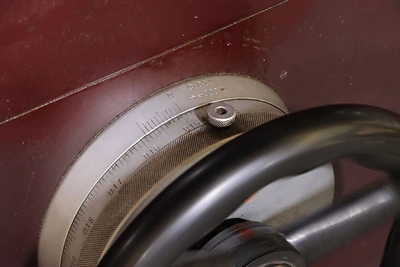

-HANDWHEEL FOR CROSS AXIS MANUAL MOVEMENT

-LUBRICATION TANK & PUMP

-HYDRAULIC TANK

-10 H.P. SPINDLE MOTOR

EQUIPPED WITH:

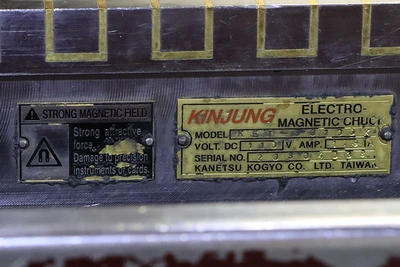

19.7" x 39.4" CHEVALIER "ELC-50100C" ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL, ON MACHINE CONSOLE

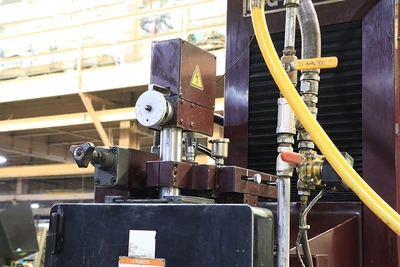

POWER "OVER-THE-WHEEL" GRINDING WHEEL DRESSER

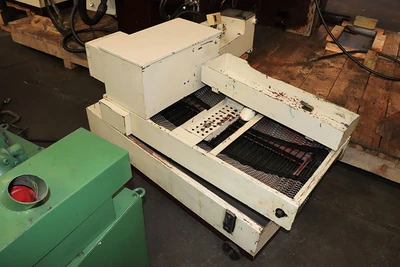

COOLANT TANK WITH PAPER FILTRAION

COOLANT GUARDING

LEVELLING PADS

WORK LIGHT

3/60/230-460 VOLT ELECTRICS

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

LINK TO VIDEO: https://youtu.be/Uk8eC8Xb0Ro?si=kuFWdFdZ-cADpg4D

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** - ORIGINAL PAINT - TRULY SUPERIOR CONDITION & APPEARANCE  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
