CONSTRUCTION
The machine has a heavy-duty, paint-free, corrosion resistant, frame made of high tensile aluminum C-Beam extrustions, anodized after welding. Other materials: zinc plated steel, stainless steel, and engineering plastics, stainless steel fasteners.

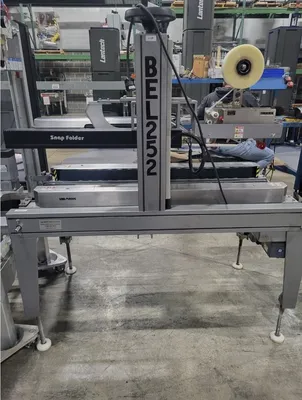

SNAP FOLDER SYSTEM
Wexxar Bel's design includes horizontal movements occurring at case-top level that tuck and fold the top flaps, ensuring operator safety by eliminating flap "kicker" arms.
TAPE HEADS
DEKKA Model 22 recommended, with 2" tape width heads, quick loading feature, and center-pull tape guide system. Can be modified to fit DEKKA 23, with 3" tape width heads by request.

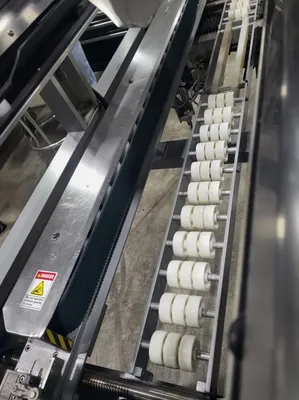

DRIVE SYSTEM
Uni-drive synchronized side belt conveyor system powered by a single 1/2 H.P. TEFC motor and ¾/4 H.P. rated gear reducer.
DRIVE BELTS
3" Leder brand rough top continuous loop with finger splice join and v-rib backing.
| Dimensions | 58x33x53.3 inches | 58x33x53.3 inches |
| Weight | 650 lbs | 650 lbs |
Specifications
Minimum Case Size Length 8” (203 mm) Width 6” (153 mm) Height 4.5” (114 mm)
Maximum Case Size Length 22” (559 mm) Width 15” (381 mm) Height 16” (406 mm)
Machine Dimensions 58” (1473 mm) 33” (838 mm) 53.3” (1353 mm)
Infeed/Outfeed Height (with adjustable leg extensions) Minimum: 23.5” (597 mm)
Maximum: 32” (813 mm)
Speed Up to 25 cases /min.
Shipping Weight Approximately 650 lbs (295 kg.)
Electrical Requirements 120 VAC, 10 A., 60 cycle, 1-phase NEMA 12, with magnetic motor
starter switch

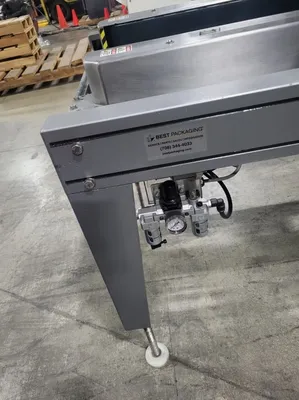

Compressed Air
Requirements
0.1 CF/cycle @ 80-90 PSI (6 bar)
