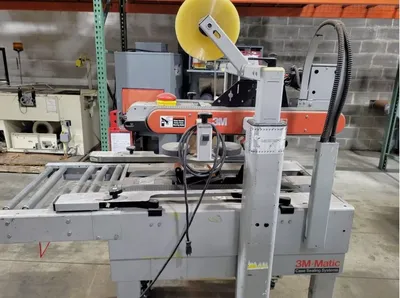

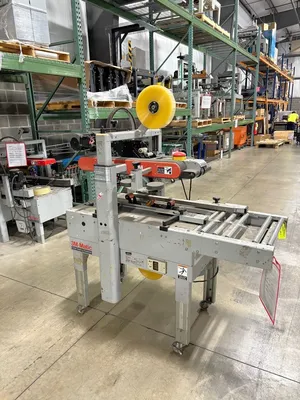

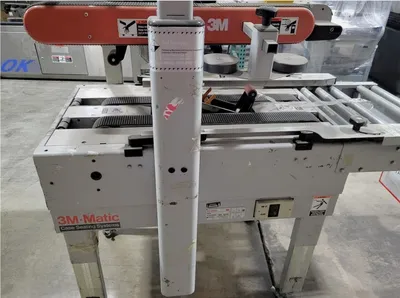

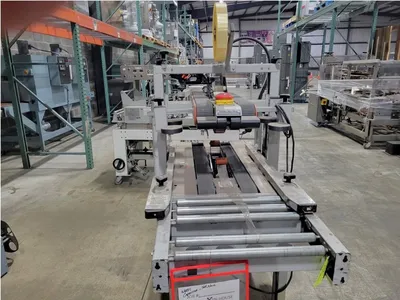

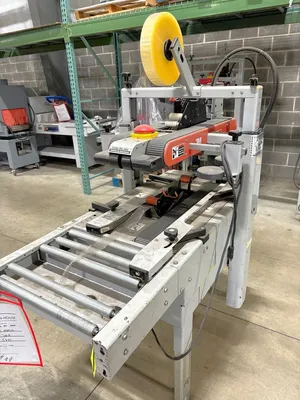

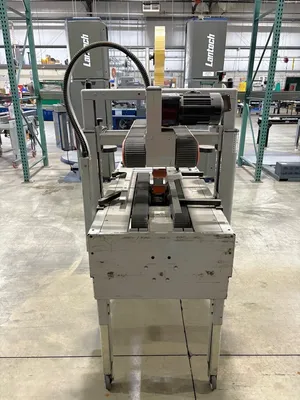

The 700a is an adjustable case sealer manufactured by 3M for general and primary packaging applications. This durable stainless steel case taper seals uniform cases up to 30 per minute. It features a proprietary AccuGlide SST tape head that applies a 2 inch “C” clip to the top and bottom center seam. A height adjustment crank raises or lowers the taping head to adjust to box height and compression rollers position the top flaps of each box for uniform sealing.
Standard Features:
• Up to 30 packages per minute (PPM)
• Gearmotors provides power to the 4 drive belt which run at 78 feet per minute
• Stainless steel construction for use in corrosive and high moisture environments
• Adjustable top and bottom belt drive system for reliable conveyance of heavier or tall/light boxes
• Adjustable side guides position and align your boxes for quick and easy throughput
Minimum Package Dimensions
Length 6” (150 mm)
Width 6” (150 mm)
Height 4 3⁄4” (121 mm)
Maximum Package Dimensions*
Length ∞
Width 21 1⁄2” (546 mm)
Height 24 1⁄2” (622 mm)
Maximum Package Weight
85 lbs. (38.6 kg)
Case Type
Regular Slotted Container (RSC)
Tape Heads
Top & Bottom AccuGlideTM SST ‘C’ Clip
Tape
1 1⁄2” - 2” (36 - 50 mm) wide, up to 16” (406 mm) maximum diameter on 3” (76.2 mm) core
Overall Machine Dimensions
Length 76 1⁄2” (1943 mm)
Width 31” (787 mm)
Height 57” - 94” (1448 - 2388 mm)
Machine Shipping Weight
346 lbs (157.6 kg) uncrated
Electrical Requirements
115 V, 60Hz, 3.8A, 440 watts
