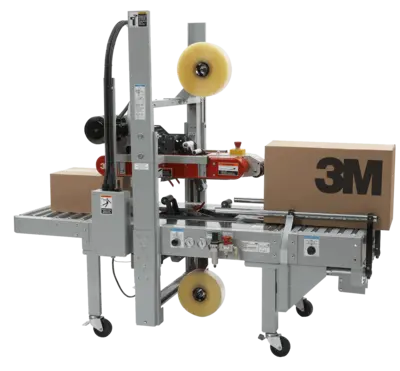

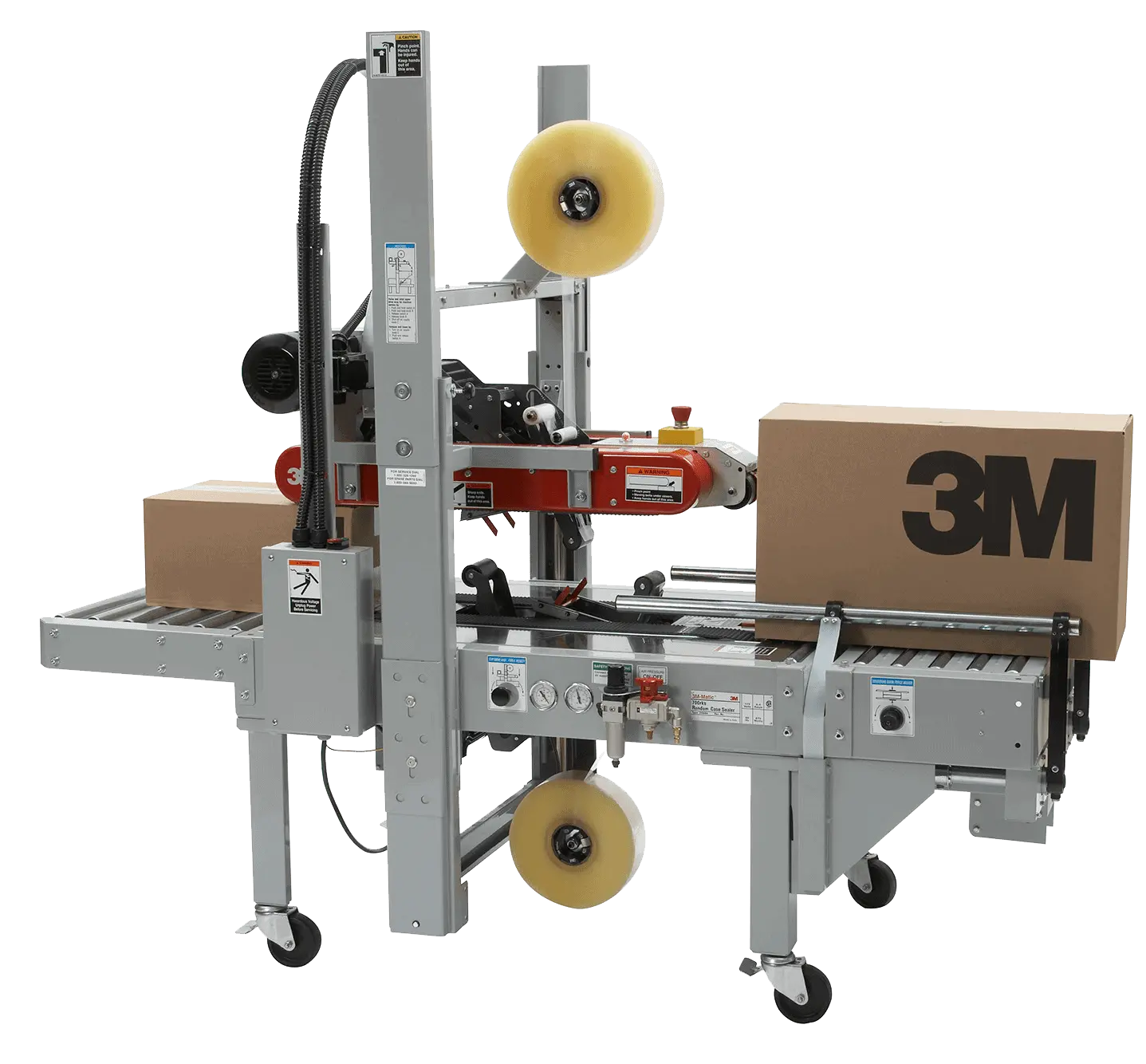

USED 3M-MATIC 700 RKS

The 3M-MaticTM 700rks is a large format, fully automatic top and bottom random case sealer, meaning that it works with large packages, seals both top and bottom flaps, automatically adjusts to your box size, and requires minimal operator assistance once in motion. The 700rks “King Size” case sealer was designed with several features that are unique and/or proprietary to the manufacturer.

FEATURES:
• High capacity tape roll drum mounted to frame using dual masts
• 3M AccuGlideTM II tape head with steel cutting blade can be used with 2”-3” (48-72 mm) pressure sensitive tape
• Dual gear motors on top and bottom drive belts capable of advancing cases as much as 85 lbs (38 kg)
• Pneumatic packing station holds empty cases for manual filling and centers automatically prior to sealing
• Centrally located latching emergency stop switch arrests motion on upper and lower box drive belts

Machine Dimensions
Length: 46 1/2″ (1180 mm)
Width: 37 1/2″ (950 mm)
Height: 76 1/4″ – 87 1/2″ (1940 – 2220 mm)

Box Capacity*
Length
Minimum: 6″ (152 mm)
Maximum: Unlimited
Width
Minimum: 7″ (178 mm)
Maximum: 25 1/2″ (648 mm)
Height
Minimum: 4 3/4″ (121 mm)
Maximum: 35 3/4″ (909 mm)

Weight Range
Minimum: 5 lbs (3 kg)
Maximum: 85 lbs (38 kg)

Electrical
120V 60Hz
6A 720 watts
8’ cord

Operating Rate
Up to 19 packages per minute

Drive Belt Speed
100 fpm (.05 m/s)

Pneumatic
85 PSIG 2.5 SCFM compressed air supply
