USED SICK RAY26P-34162530A00

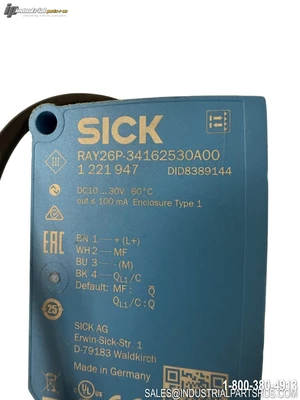

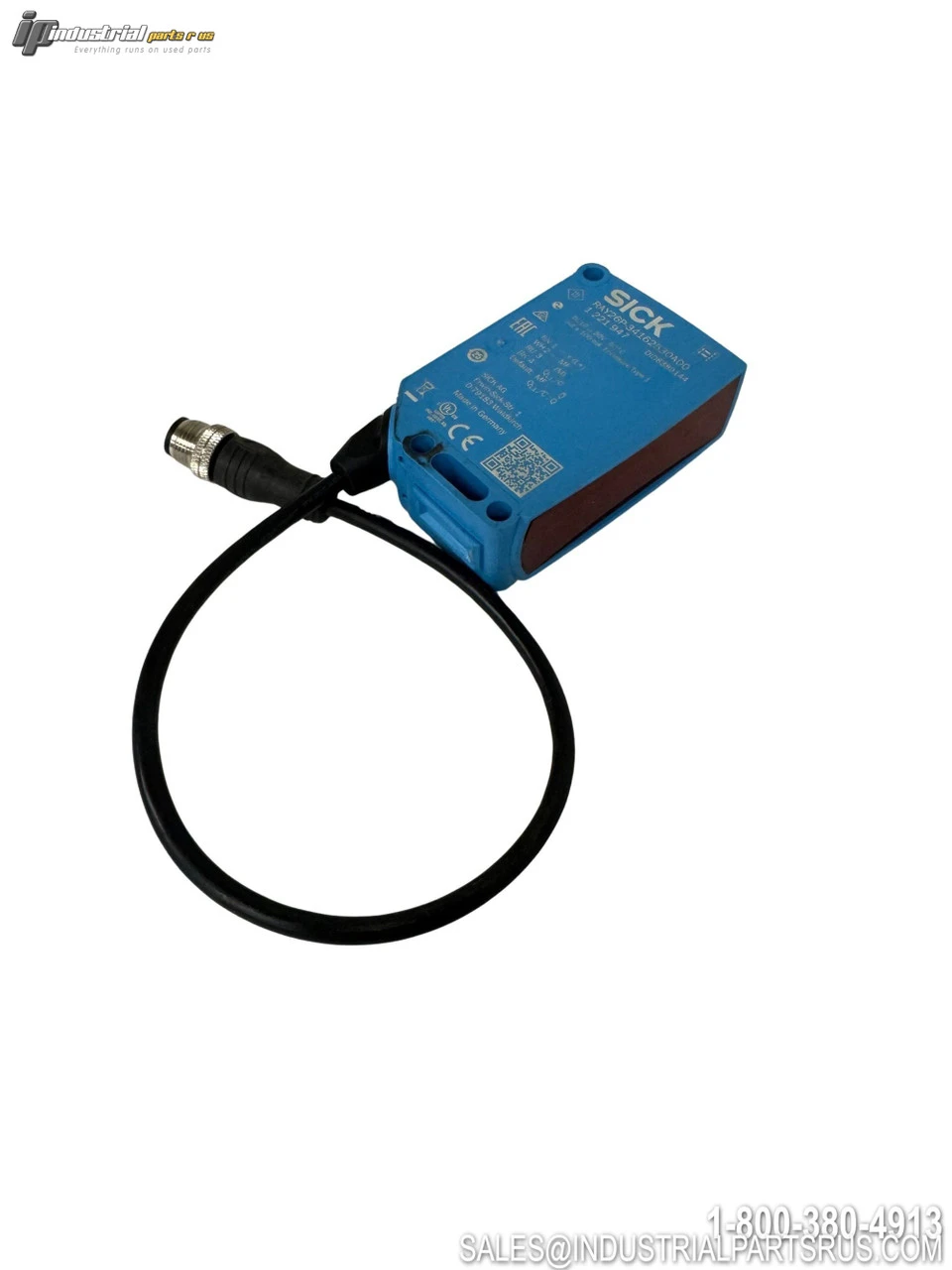

The Sick RAY26P-34162530A00 is a RAY26 Reflex Array MultiTask photoelectric sensor that uses a retroreflective (autocollimation) detection principle to identify leading edges of small, flat, transparent, or unevenly formed objects on conveyor belts within its 55 mm light array. Operating on 10–30 V DC with a Push-Pull PNP/NPN output, it offers a maximum sensing range of 3 m and supports IO-Link communication for advanced configuration. With BluePilot Teach-in adjustment, a 170 Hz switching frequency, and a robust VISTAL® plastic housing rated IP66/IP67, it is purpose-built for demanding industrial automation environments including packaging, material handling, and conveyor systems.
Specification
Value
Brand
Sick
Model / Part Number
RAY26P-34162530A00
Manufacturer Part Number (SICK P/N)
1221947
Product Series
RAY26 Reflex Array
Product Type
Photoelectric Sensor – MultiTask Retro-Reflective
Sensor / Detection Principle
Photoelectric retro-reflective, Autocollimation, Reflex Array
Sensing Range (Max)
0 m … 3 m (with Reflector PL80A)
Detection Height
55 mm
Minimum Object Size
5 mm (position-independent detection within the light array)
Light Source
PinPoint LED – Visible Red Light
Wavelength
635 nm
Light Spot Size (at 1 m)
55 mm × 9 mm
Supply Voltage (UB)
10 V DC … 30 V DC
Ripple
< 5 Vpp
Current Consumption
25 mA (typ.) / 40 mA (max.)
Output Type
Push-Pull: PNP/NPN
Output / IO-Link Mode
Switching output or IO-Link mode (Output: QL1 / C)
Switching Mode
Light / Dark switching (selectable via IO-Link)
Output Current (Max)
≤ 100 mA
Response Time
≤ 3 ms
Switching Frequency
170 Hz
Communication Interface
IO-Link V1.1
Adjustment
BluePilot Teach-in button
Pin 2 Configuration
External Input (test), Teach-in, switching signal
AutoAdapt
Yes
Conveyor Belt Suppression
Manual
Connection Type
Cable with M12 male connector, 4-pin, 270 mm
Cable Material
PVC
Connector Type
M12, 4-pin, Male
Housing Design
Rectangular (Block)
Housing Material
Plastic, VISTAL®
Optics Material
Plastic, PMMA
Dimensions (W × H × D)
24.6 mm × 82.5 mm × 53.3 mm
Weight
100 g
Enclosure Rating (IP)
IP66 / IP67
Protection Class
III
Ambient Operating Temperature
–40 °C to +60 °C
Average LED Service Life
100,000 h at TU = +25 °C
Standards / Approvals
CE, cULus Listed (UL File No. NRKH.E181493 & NRKH7.E181493)
Special Applications
Transparent objects, perforated objects, flat objects, uneven/shiny objects, position-tolerant detection
We warranty all items for 30 days from date of purchase.
