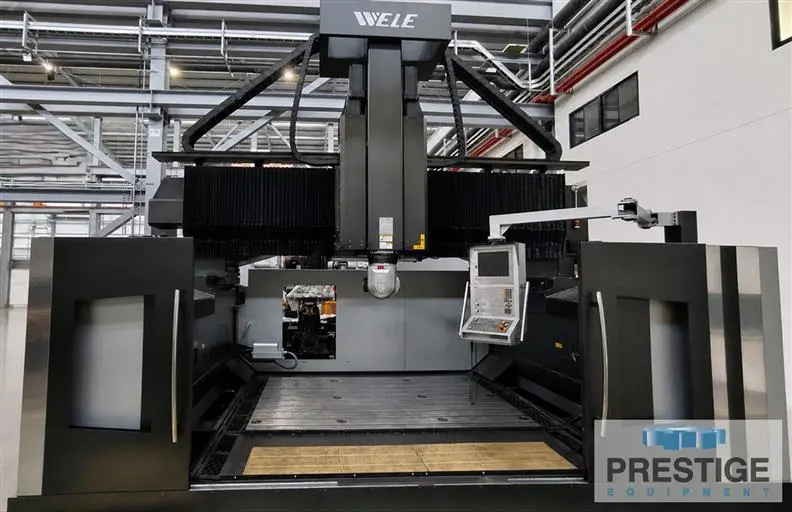

USED 2022 WELE DG-320U5X

SPECIFICATIONS:
X-Axis Travel: 118.11"
Y-Axis Travel: 78.74"
Z-Axis Travel: 43.30"
A-Axis Travel: +/-115 Deg.
C-Axis Travel: +/-360 Deg.
A & C Axis Indexing: 0.001 Deg.
Spindle Nose to Table (A=0 Deg.): 0-43.3"
Spindle Nose to Table (A=90 Deg.): 8.66"-51.96"
Table Size: 110.23" x 78.74"
Table Capacity: 16,500 Lbs.
Distance Between Columns: 149.60"

GERMAN CYTEC S8 A/C HEAD:
Spindle Speeds: 18,000 RPM
Spindle Drive Motor: 30.6 HP / 24 HP
Spindle Taper: HSK-63

Equipped With:
Heidenhain TNC 640 iTNC CNC Control with 15.1" LCD
24-Position Automatic Tool Changer
5-Axis Machining
German Cytec S8 Two-Axis Head
X/YU/Z Axis Roller Linear Guide Ways
X/YU/Z Axis Heidenhain Linear Scales
Coolant Thru Spindle
Spindle Air Blast
Blum TC-60 Part Measuring System
Blum NT-A3 Tool Measuring System
Spindle Oil Cooler
Air Conditioner
Chip Conveyor with Bucket

Features:
Heidenhain TNC 640 iTNC CNC Control with 15.1" LCD
24-Position Automatic Tool Changer
5-Axis Machining
German Cytec S8 Two-Axis Head
Coolant Thru Spindle
Blum TC-60 Part Measuring System
Blum NT-A3 Tool Measuring System
