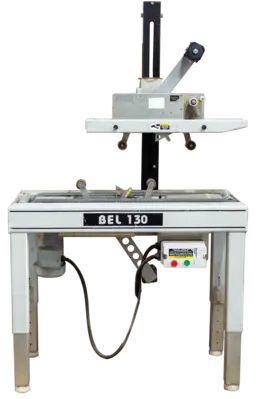

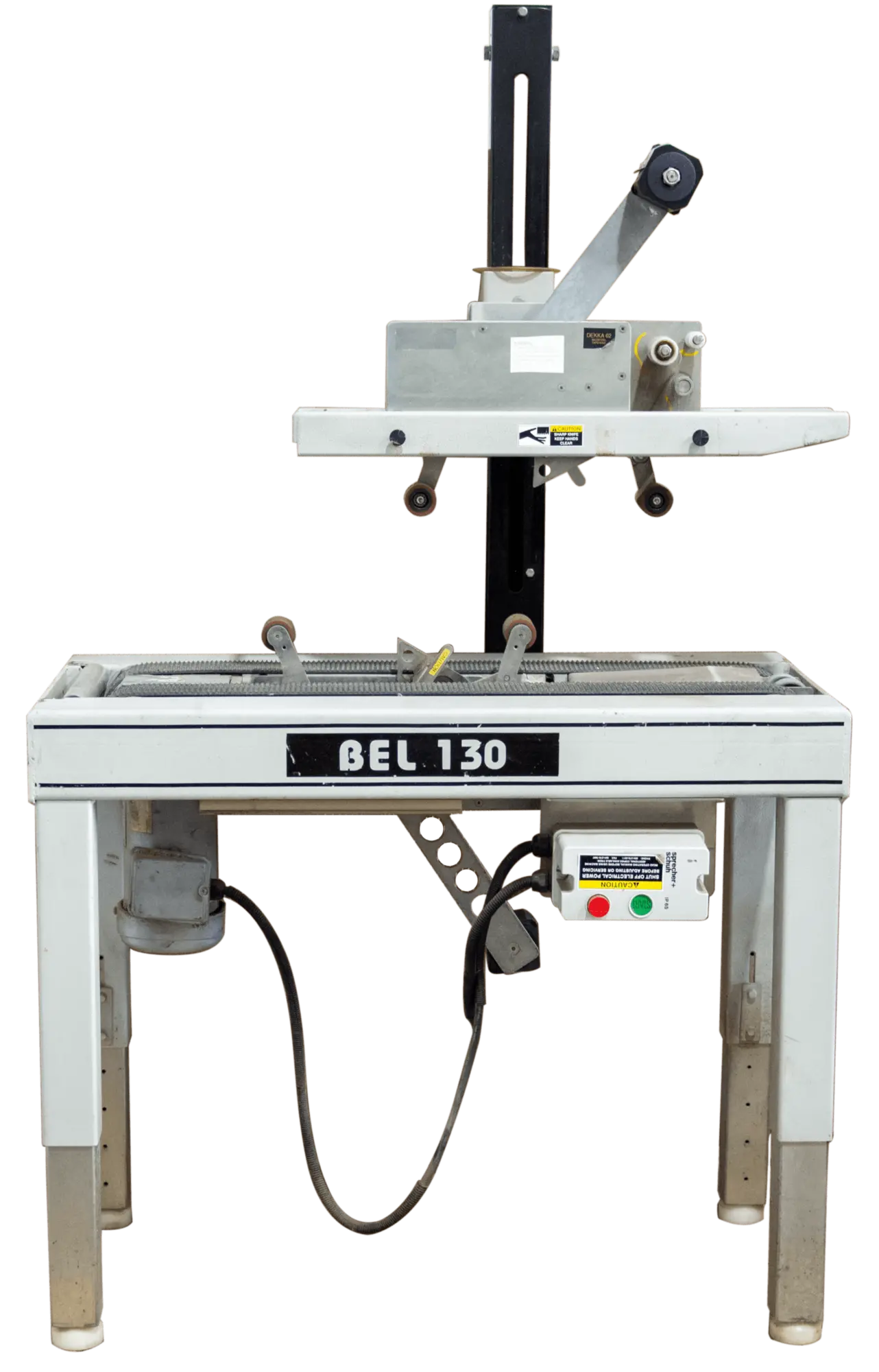

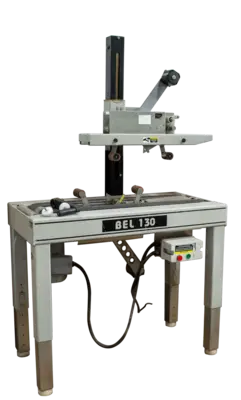

USED WEXXAR BEL 130

The Bel 130 is a bottom belt semi-automatic case taper designed to pair with Dekka®
tape heads. (Dekka 100 recommended) The machine is both designed and developed in North America with durable, high-quality materials.

Changeover
The adjustable machine is compatible with a wide range of case sizes. Using a top wheel and tilting guide rails, changeover is possible in short time, with no additional tools. The unit features color-coded size-change labels.

Maintenance
Additional user-friendly features include pictoral instructions for tape head changes and belt access. The design makes it possible for belts and tape heads to be accessed and/or exchanged in short time using a hex keyv. Wexxar Bel®’s signature Uni-Drive bottom belt system is engineered to seal consistently and accurately, even over longterm use.

Minimum Package Size
Length 6” (152 mm)
Width 5” (127 mm)
Height 3.5” (89 mm)

Maximum Package Size
Length Unlimited
Width 20” (508 mm)
Height 20” (508 mm)

Infeed/Outfeed Height
Maximum 21.5” (546 mm) with pads
Minimum 33.5” (851 mm) with pads

Machine Dimensions
Length 39” (990 mm)
Width 25” (635 mm)
Height 50.5” (1285 mm)

Machine Weight
300 lbs (136 kg)

Conveyor Speed
Up to 30 cases per minute

Electrical Requirements
115VAC, 60 Cycle, 1 phase, 4 amps
