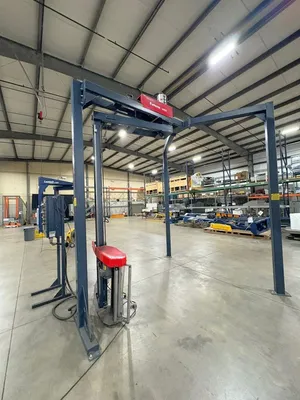

The Wulftec WRT-125 is designed for optimal productivity, and to give businesses a competitive advantage in a fast-paced marketplace. Rotary arm models, compared to turntable models, are designed for increased flexibility and for unique load shapes or weights. The rotary arm rotates around a stationary load —a safe, highly effective way of wrapping very light, tall, heavy or unstable loads. Superior safety features are engineered into every Wulftec machine. Wulftec’s exceptional performance characteristics ensure reliability, even in the harshest working conditions.
• Nema 4/12 control cabinets offer superior protection against water & dust, quick
disconnect for easy and fast installation
• Variable rotary arm speed up to 15 mph
• 40-50 loads per hour
• Easy load positioning
• Unlimited load weight capacity
Machine Dimensions
Length: 125 1/2″ / 3188 mm
Width: 128″ / 3251 mm
Height: 131 1/2″ / 3340 mm
Weight: 1,562 lbs / 708.5 KG
Maximum Load Size
Length: 58″ / 1473 mm
Width: 58″ / 1473 mm
Height: 80″ / 2032 mm
Weight: Unlimited
Product Rate
40-50 loads per hour

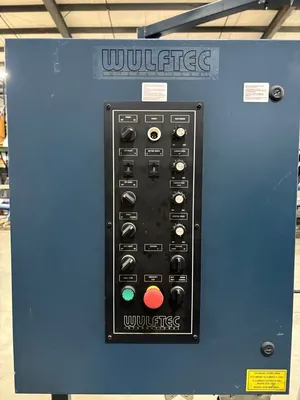

Controls
• Nema 4/12 control cabinet with quick disconnect
• Top cover pause switch (splash-proof program)
• Spiral up or spiral up/down switch
• Autoheight sensing photoeye with on/off switch

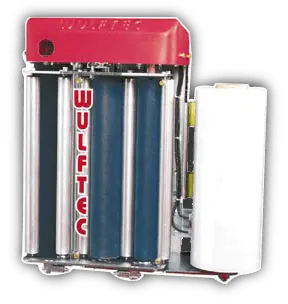

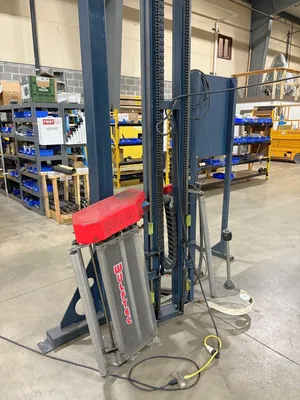

Film Delivery System
• 20” RAPID-THREAD powered pre-stretch carriage
• 50-300% pre-stretch
• 1/2 HP AC motor with variable frequency drive for corner compensation

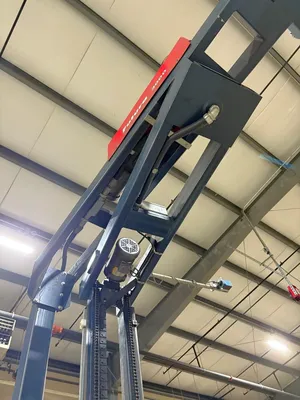

Rotary Arm Drive
• Double v-belt and pulley drive rotary arm
• 15 RPM variable speed
• 1/2 HP AC motor variable frequency drive
Structure
Heavy-duty structural steel construction
