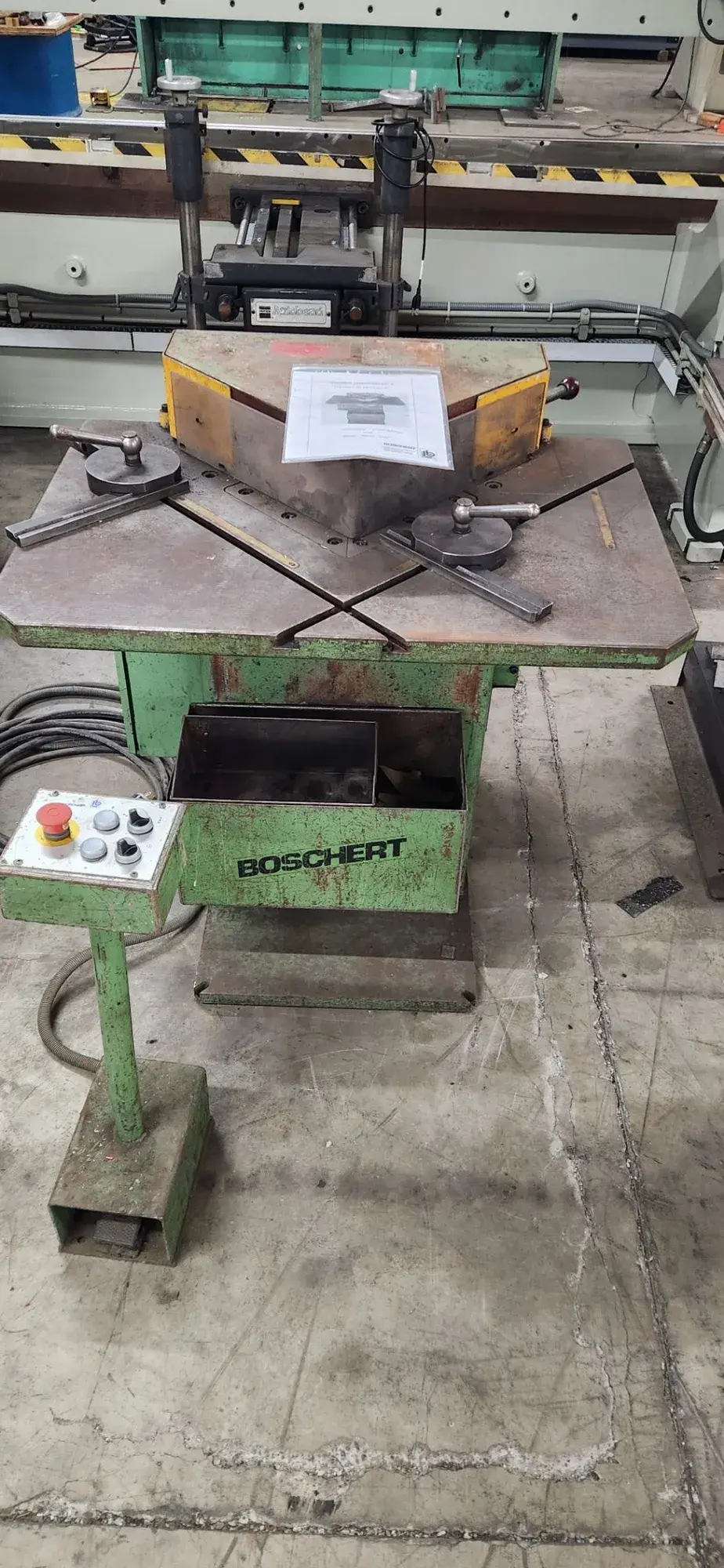

USED BOSCHERT LB-12

THE BOSCHERT LB12 IS A HYDRAULIC CORNER NOTCHING MACHINE ENGINEERED FOR PRECISION METALWORKING APPLICATIONS. IT FEATURES A 90-DEGREE FIXED CUTTING ANGLE AND HANDLES A MAXIMUM SHEET THICKNESS CAPACITY OF 1/4 INCH (6 MM) FOR MILD STEEL AND UP TO 3/16 INCH (4 MM) FOR STAINLESS STEEL. THE MACHINE IS EQUIPPED WITH A 6.5 HP (4 KW) MAIN PUMP MOTOR AND OPERATES AT A MAXIMUM STROKE RATE OF 40 TO 50 STROKES PER MINUTE, SUPPORTING SINGLE, INCH, OR CONTINUOUS OPERATION MODES. IT ACCOMMODATES MAXIMUM NOTCH DIMENSIONS OF 8-7/8 INCHES BY 8-7/8 INCHES (225 MM X 225 MM).

BUILT WITH A PATENTED TRI-GIDE THREE-POINT RAM GUIDANCE SYSTEM, THE NOTCHER UTILIZES THREE LARGE GUIDING CYLINDERS—TWO AT THE TOP NEAR THE BLADES AND ONE INTEGRATED WITH THE HYDRAULIC PISTON IN THE BASE—TO DISTRIBUTE CUTTING TORQUE EVENLY, MINIMIZE BLADE WEAR, AND ENSURE BURR-FREE CUTS ACROSS ALL MATERIAL GAUGES WITHOUT NEEDING MANUAL CLEARANCE ADJUSTMENTS. THE SYSTEM ALSO INCLUDES AN AUTOMATIC CUTTING GAP ADJUSTMENT, INTEGRATED OVERLOAD PROTECTION, AND A MAINTENANCE-FREE LUBRICATION SYSTEM. THE WORKING TABLE MEASURES APPROXIMATELY 35 INCHES BY 25 INCHES (OR UP TO 910 MM BY 620 MM) WITH A HEIGHT OF 35.5 INCHES (900 MM), FEATURING BRASS SCALES AND SELF-LOCKING ADJUSTABLE GUIDES. CONTROL IS MANAGED VIA A MOVABLE ELECTRICAL FOOT PEDAL AND A TOUCH PAD CONTROL PANEL. THE MACHINE HAS PHYSICAL DIMENSIONS OF ROUGHLY 49.2 INCHES LONG BY 35.4 INCHES WIDE BY 51 TO 53 INCHES HIGH, WITH A TOTAL WEIGHT RANGING FROM 1,452 TO 2,000 POUNDS.
