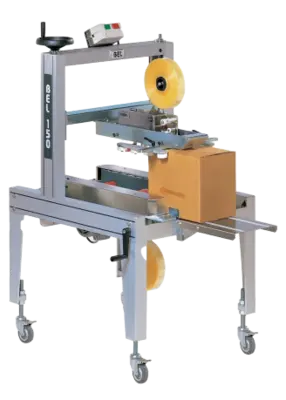

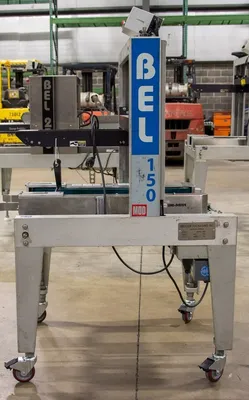

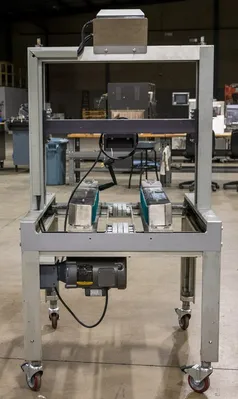

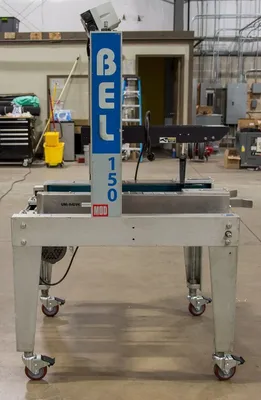

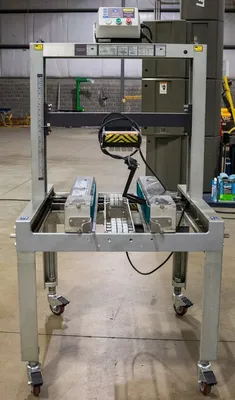

USED WEXXAR BEL 150

The BEL 150 is a high quality, semi-automatic, top and bottom pressure sensitive tape case sealer designed for the entry level market. This versatile and compact machine can seal a wide range of case sizes and fit in operations with limited floor space.

When combined with a BEL case former, it allows one operator to form, pack and seal corrugated cases in a single operation. A main feature of the BEL 150 is the Uni-Drive System, which powers both side belts with a single motor. This allows the belts to always be in sync, consistently providing a square seal.

Minimum Case Size
Length 8” (203 mm)
Width 6” (152 mm)
Height 5” (127 mm)

Maximum Case Size
Length 22” (559 mm)
Width 15.5” (394 mm)
Height 16” (406 mm)

Minimum infeed/outfeed height*
25” (635 mm)

Maximum infeed/outfeed height*
32” (813 mm)

Machine Dimensions
Length 37.5” (952.5 mm)
Width 33” (838.2 mm)
Height 60” (1524 mm)

Machine Weight
480 lbs (217.7 kg)

Air
0.13 ft3 per cycle at 90 PSI

Electrical
120v, 1PH, 60 Hz - 8 amp draw

Speeds
Up to 30 cases per minute
